5-4
IM CA71-E
Black
Black
Red
Red

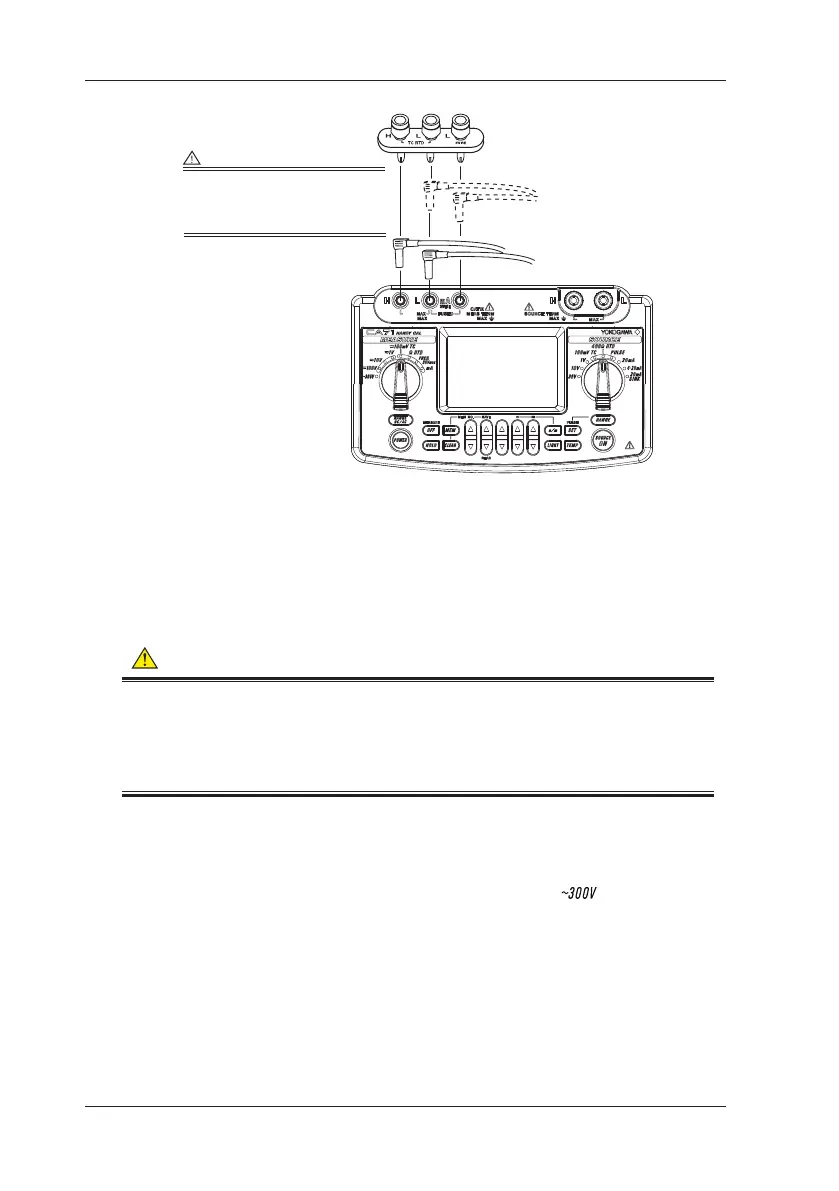

Lead cables for measurement
(RD031)
Terminal adapter
(99021)
WARNING
The allowable voltage to ground
when the included terminal adapter is
attached to the input terminals is
30 Vpeak maximum.
5.2 Measuring 300 V AC-range Voltage,
DC Voltage, AC Voltage or DC Current
5.2.1 Measuring 300 V AC-range Voltage
CAUTION
If you make a mistake in wiring or in the operating procedure in this
measurement task, there will be a danger of not only damage to the
instrument but also personal injury due to electrical shock.
Exercise the utmost care when carrying out the measurement task.
Step 1: Make sure the lead cables for measurement are not
connected to the measuring instrument under test.
Step 2: Using the function selector switch, select
.
Step 3: Connect the lead cables for measurement to the measuring
terminals of the measuring instrument under test.
5.2
Measuring 300 V AC-range Voltage, DC Voltage, AC Voltage or DC Current
To Next Page
