IM CA71-E
7-1
Functions Provided by DIP Switch
7

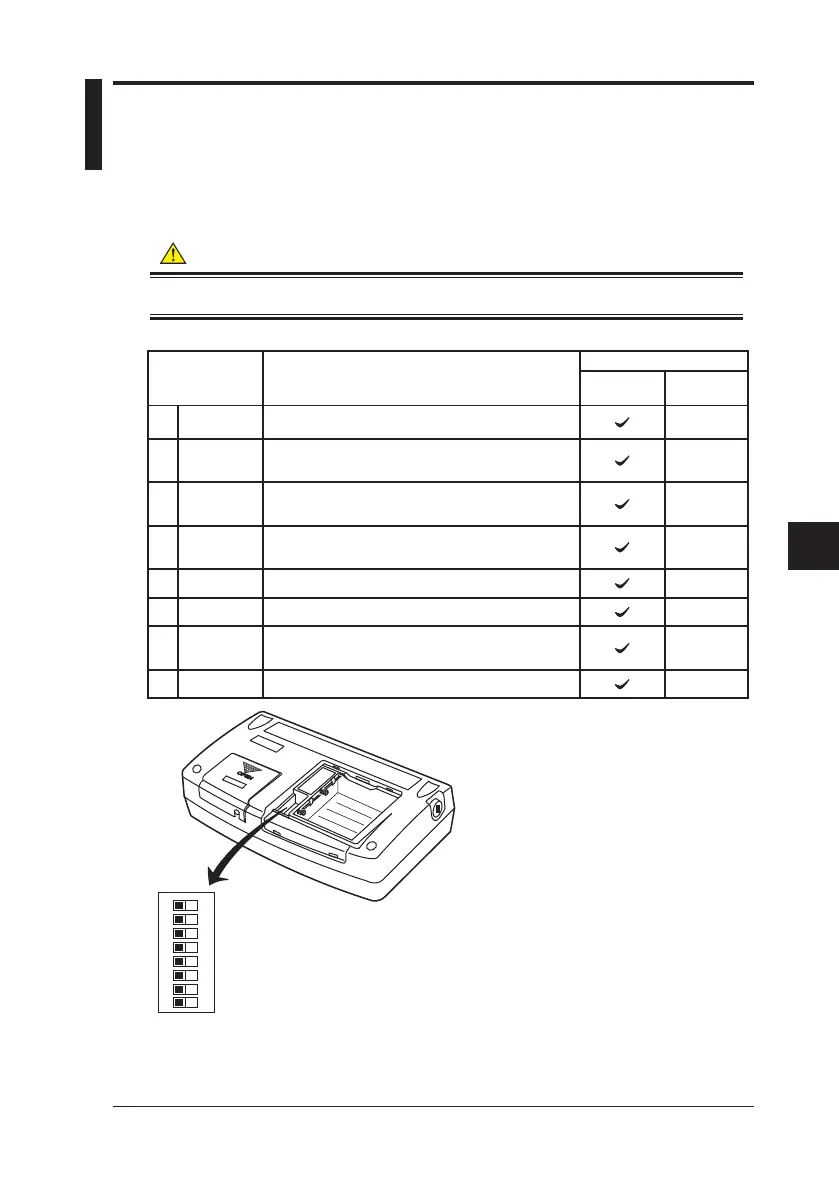

7. Functions Provided by DIP Switch
By conguring the DIP switch, you can use the functions listed below.
The DIP switch can be found by removing the battery holder cover at
the back of the calibrator.
CAUTION
Turn off the calibrator before you change the DIP switch conguration.
DIP Swich
Position
Description
Factory Setting
OFF
(left-side)
ON
(right-side)
1 Sweep Selects the sweep or auto-step function.
2 Speed
Changes the speed setpoint of the sweep or
auto-step function.
3 INT RJ
Selects the internal reference junction
compensation for TC signal generation.
4 IPTS-68
Selects the IPTS-68 temperature scale for
temperature signal generation or measurement.
5 No use Denotes the position is not used.
6 Temp OFF
7 Contact In
Selects contact input based operation for pulse
measurement.
8 No use Denotes the position is not used.
12345678
ON
To Next Page
