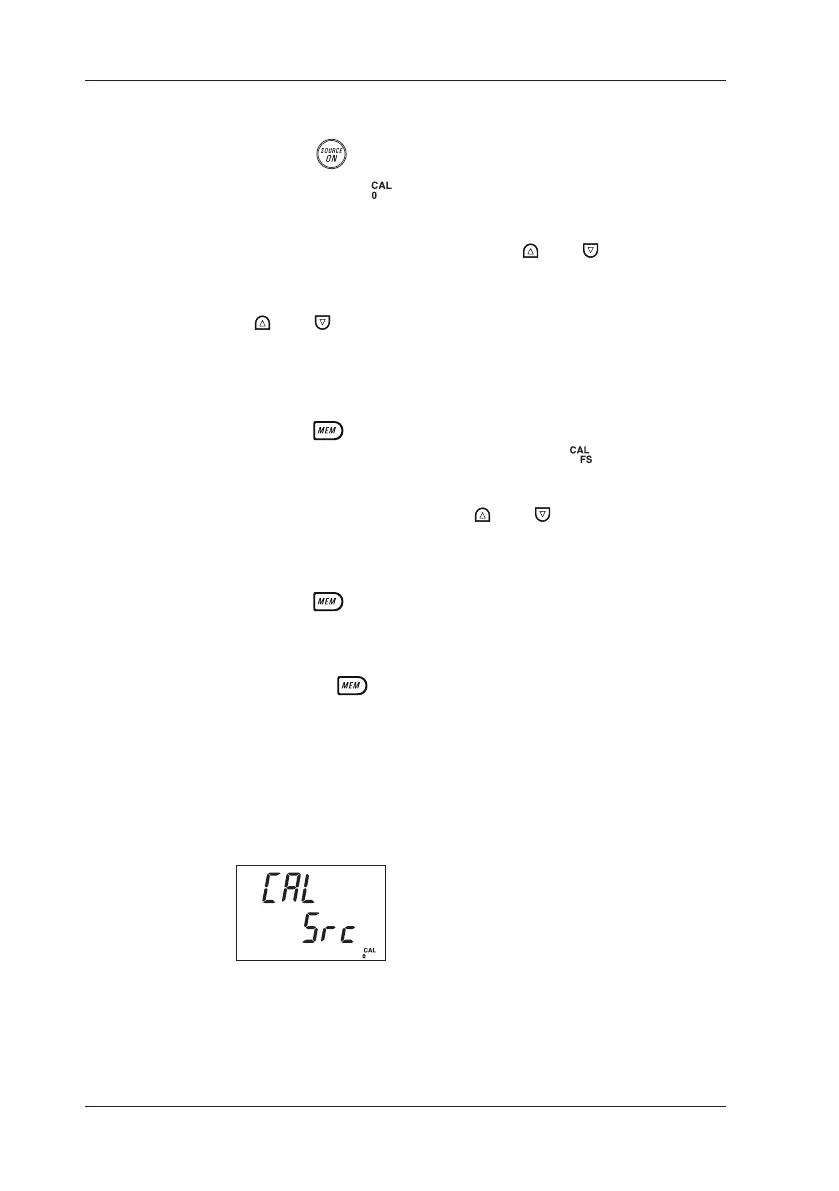

10-4
IM CA71-E
Step 3: From Table 10.1, select the range you want to adjust.
Then, point the function selector switch to that range and
press the
key.
Step 4: Conform that the
symbol is appearing on the LCD.
Step 5: Read the calibrator output on the calibration standard.
Then, using the lowest-order pair of
and keys, adjust
the reading so that it matches the given CAL 0 adjustment
setpoint in Table 10.1. In the CAL mode, the lowest-order pair
of
and keys are used to increase or decrease the least-
signicant two digits, including the auxiliary digit.
Adjust the value measured with the calibration standard to
the given adjustment setpoint in Table 10.1.
Step 6: Press the
key to conrm the CAL 0 adjustment setpoint.
The CAL indicator on the LCD changes to
, setting the
calibrator ready for full-scale adjustment.
Step 7: Using the lowest-order pair of
and keys, adjust the
reading of the calibration standard so that it matches the
given CAL FS adjustment setpoint in Table 10.1.
Step 8: Press the
key to conrm the CAL
FS adjustment setpoint. The 0 and FS
symbols on the LCD blink.
Step 9: Pressing the
once again saves the
adjustment setpoint in memory.
Step 10: The 0 and FS symbols stop blinking, causing the calibrator
to return to the state discussed in step 4. Using the function
selector switch, select the next range. By repeating steps
4 to 9, you can adjust the source function assigned to that
range.
10.2 Adjusting source Functions
