6-6
IM CW240E

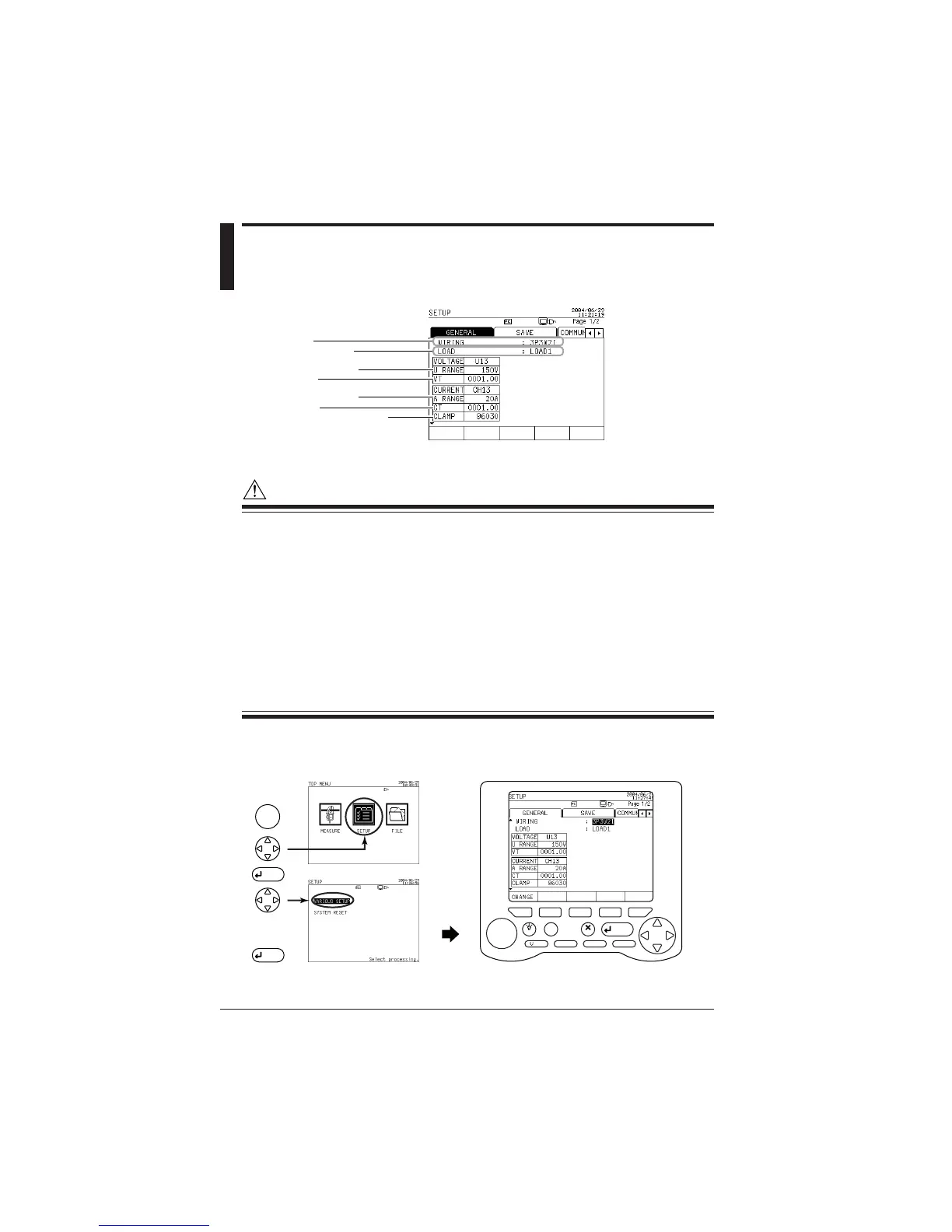

6.2 General Settings 1/2
Clamp-on probe (model)
Wiring
Number of loads
Voltage (U) range
VT ratio
Current (A) range
CT ratio
NOTE
• Setting items cannot be changed during integration measurements (including
when on standby).
• Unless integral measured data has been cleared, setting items cannot be
changed. To change a setting item, press the F5 key (HOLD/Clear) for more
than 3 seconds on the Measure screen to clear integral measured data and
then change the setting.
• Settings cannot be changed under the following conditions:
The product of "rated power ⫻ VT ratio ⫻ CT ratio ⫻ 1.3" exceeds 999.9 TW.
Setting items: wiring, voltage range, current range, type of clamp-on probe,
VT ratio, and CT ratio
If a setting needs to be changed in the above condition, also change other
settings so that the product is less than 999.9 TW.
6.2.1 Setting Up the Wiring (Wiring System)
TOP
MENU
ENTER
ENTER
LIGHT
TOP
MENU
SAVE
A
RANGE
START
&STOP
ESC
ENTER
F
1
F
2
F
3
F
4
F
5
DISP COPY
RANGE
To Next Page
