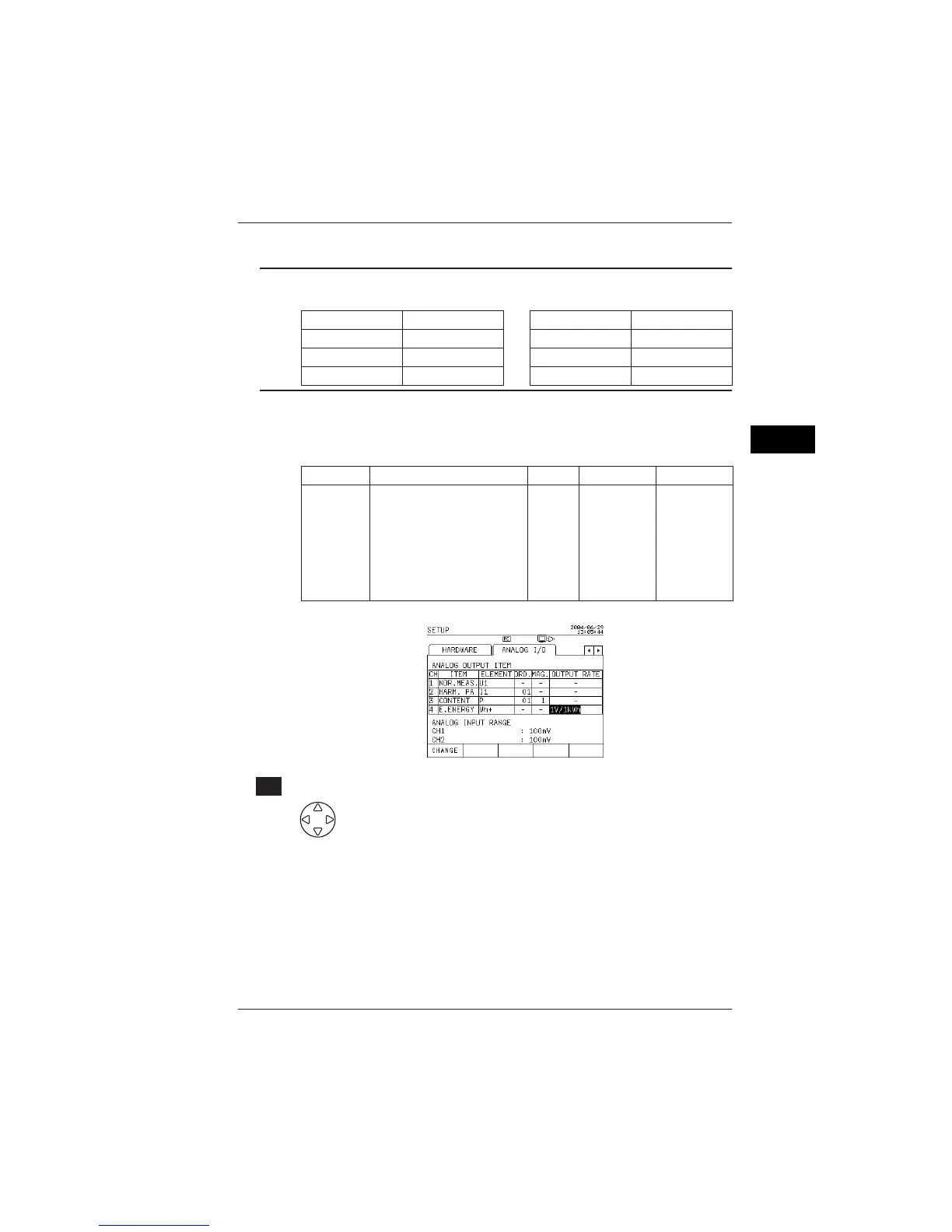

6-95
IM CW240E
Configuring Settings
6
TIP
The output full scale changes depending on the magnification setting.
If the output item is LEVEL If the output item is CONTENT
Magnification Full Scale
1
10
100
20A
2A
0.2A
Magnification Full Scale
1
10
100
100%
10%
1%
● Output Rate Setting Procedure
The output rate needs to be set when the analog output item is set to E.
ENERGY.
Item Element Order Magnification Output Rate
E. ENERGY
__
Active energy (Wh+)
Regenerative energy (Wh-)
Lagging reactive energy (Varh+)
Leading reactive energy (Varh-)
1V/1kWh
1V/5kWh
1V/10kWh
1V/50kWh
1V/100kWh
1V/500kWh
1V/1000kWh
[ 1 Changing the output rate
Using the cursor keys, select the output rate of CH to be changed
(highlighted).
6.9 Analog I/O Settings
To Next Page
