13-4
IM CW240E

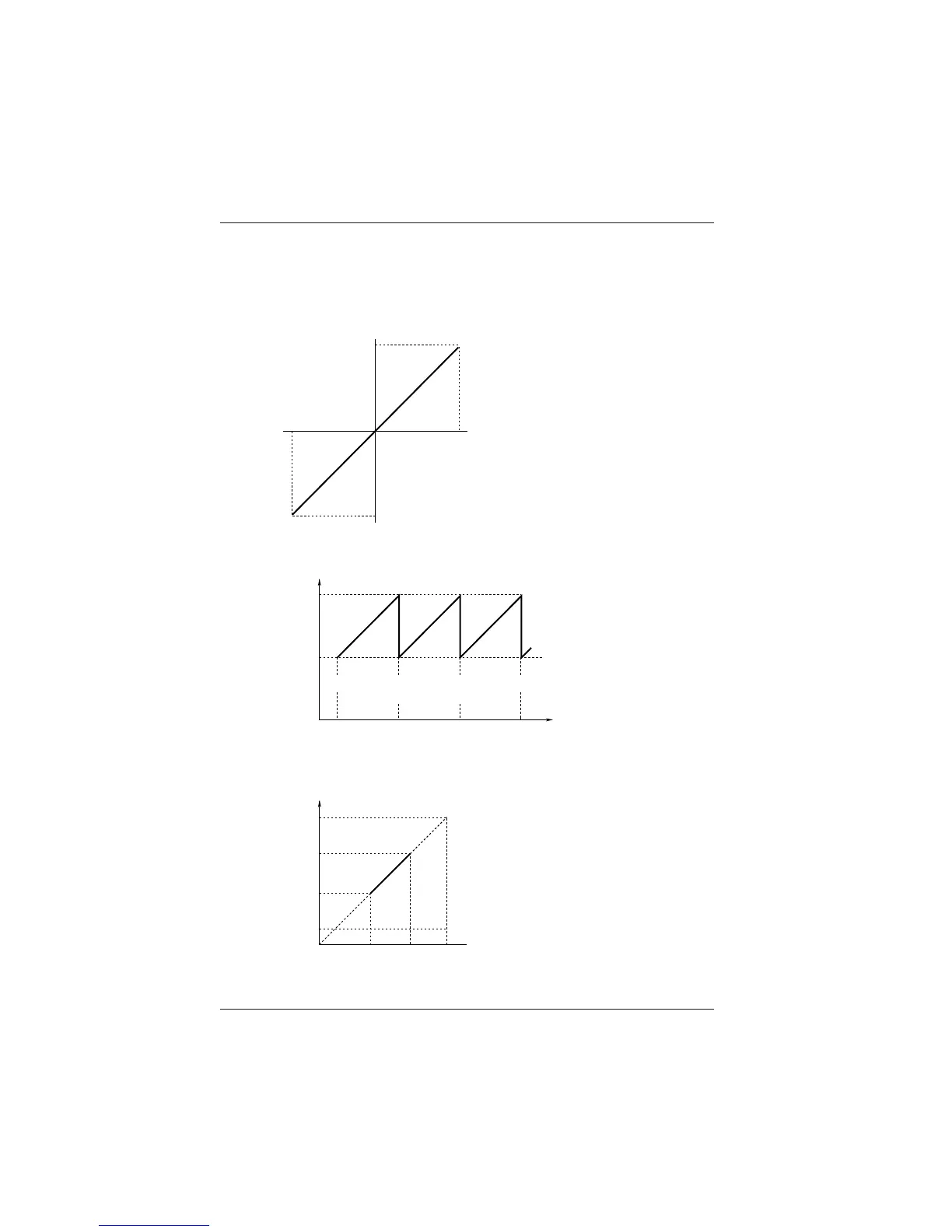

13.1.3 Measurement Values and Output Characteristics
Analog output changes according to the measurement value, as indicated
below.
● Excluding integration values and frequency
0V
-100
-1V
1V
100
Display value range%
Frequency measurement magnification ⫻ 10 is 10% of F.S.
Frequency measurement magnification ⫻ 100 is 1% of F.S.
● Integration
Integration value
1V
10kWh 20kWh 30kWh
-1V
0123
0V
Elapsed timeIntegration start
When active electric energy is 10 kWh constant input
Output rate: 1 V/10 kWh
● Frequency
D/A output
1V
0.7V
0.4V
0.1V
0
40Hz 70Hz 100Hz Display value: Hz
13.1 Analog Output (DA Output)
