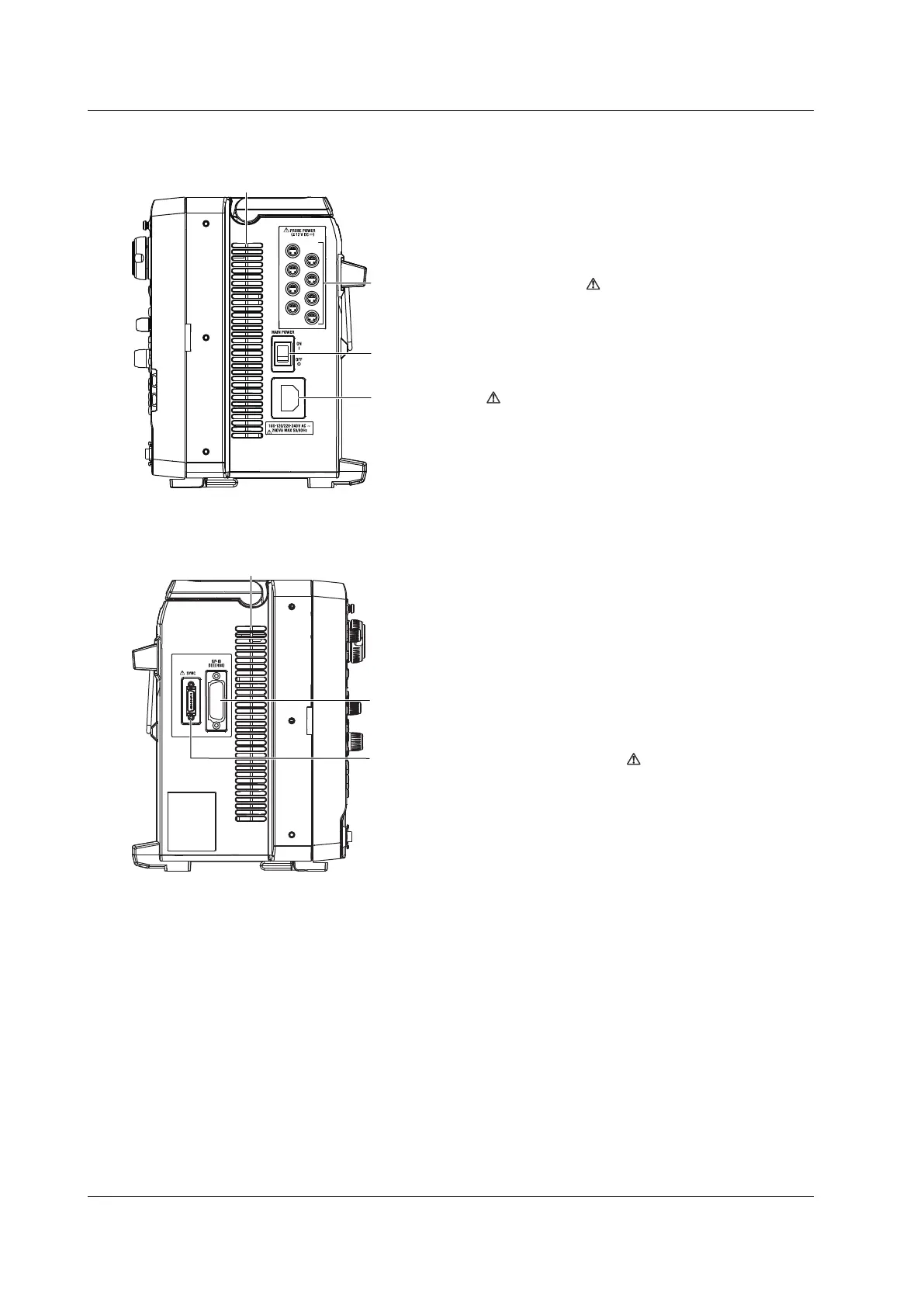

Right Side Panel
Probe power terminal (optional)
Use these terminals to supply power to a YOKOGAWA
FET probe or current probe. → sec. 2.4
Power connector → sec. 2.3
Main power switch → sec. 2.3
Inlet holes
Left Side Panel
GP-IB port (optional)
Use this connector to communicate with the instrument
through the GP-IB interface.
→ Communication Interface User’s Manual
Inlet holes
Synchronous operation I/O connector
Use this connector to connect to another DLM5034,
DLM5038, DLM5054, or DLM5058.
→ sec. 4.5
