SHIFT key
Press this key once to illuminate it and access the features that are written in purple below each
key. Press the key again to clear that state.

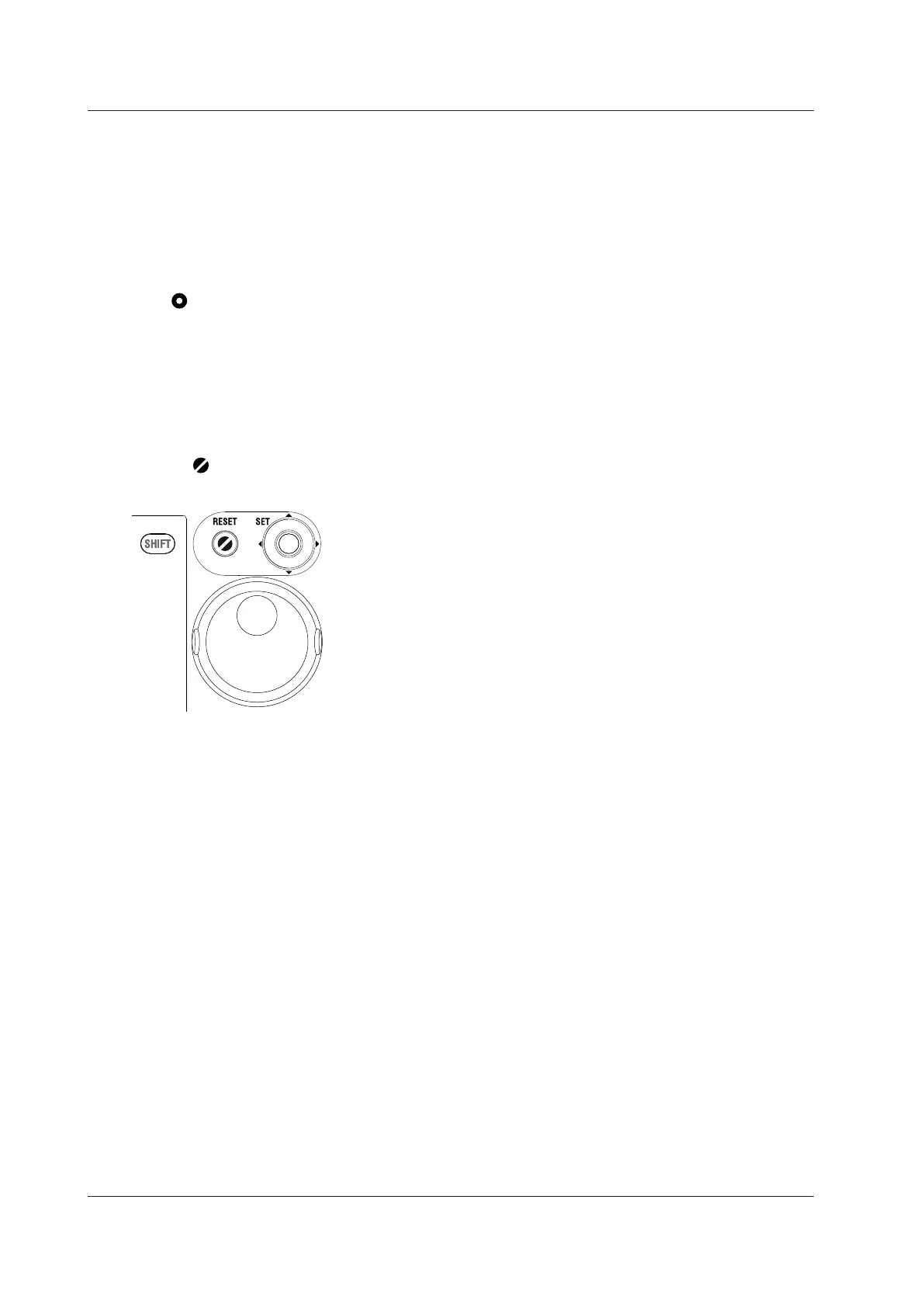

Jog Shuttle
When configuring various settings, use the jog shuttle to set values, move cursors, and select
items. Turn the shuttle ring to vary the rate at which values change. The rate is set according to the
shuttle ring angle.
SET ( ) Key
Press this key to enter the menu item that you selected using the jog shuttle.
If there are two items on the jog shuttle setting menu, you can press the key to change the item that
the jog shuttle controls.
Move the SET key left and right to move the cursor between numeric digits.
Move the SET key up and down to increase and decrease a value. You can change the setting on a
dialog menu by moving the key up, down, left, and right.
RESET (
) Key
Press this key to reset an entered value to its default value.
Soft Keys
Use these keys to select items on setup menus.
ESC Key
Press this key to close setup menus and dialog boxes and to return to the menu level above the
current one.
