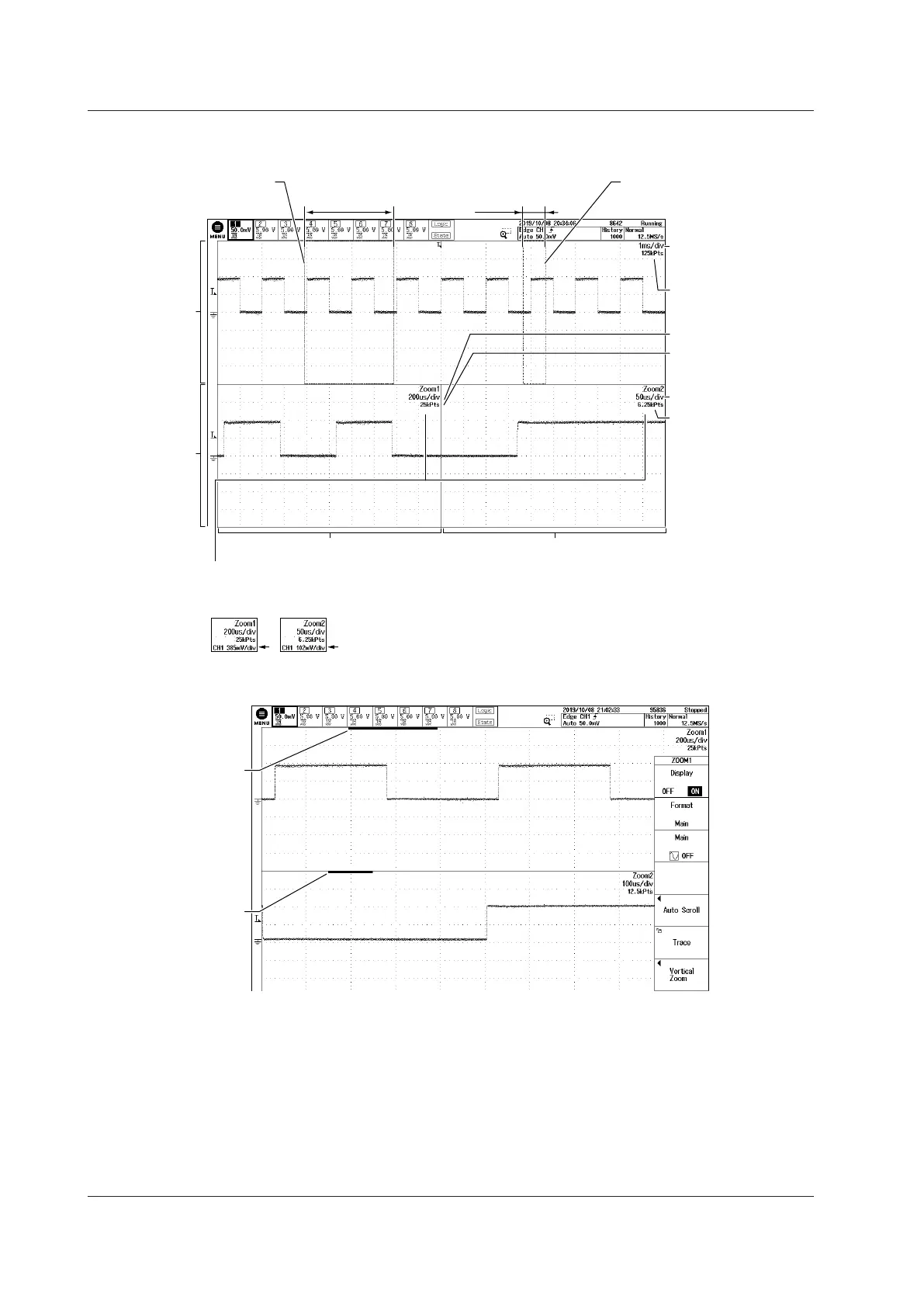

Screen Displaying Zoom Waveforms
Zoom position of
zoom waveform Z1
Z2 Time/div
Main window
Zoom window
Z1 Time/div
Zoom1 window Zoom2 window
Normal waveform
display record length
Zoom position of
zoom waveform Z2
X-direction zoom
range of Z1
X-direction zoom
range of Z2
Normal waveform
Time/div
Z2 display
record length
Zoom vertically
When the vertical zoom factor of the selected waveform is not x1.00, the vertical zoom
amount is displayed in terms of the voltage per division as shown in the following figure.
Z1 display
record length
Screen When the Main Window Is Not Displayed
Z1 position and
zoom range
relative to the
entire waveform
Z2 position and
zoom range
relative to the
entire waveform
1.3 Screens
