3-2
IM DLM5058-03EN

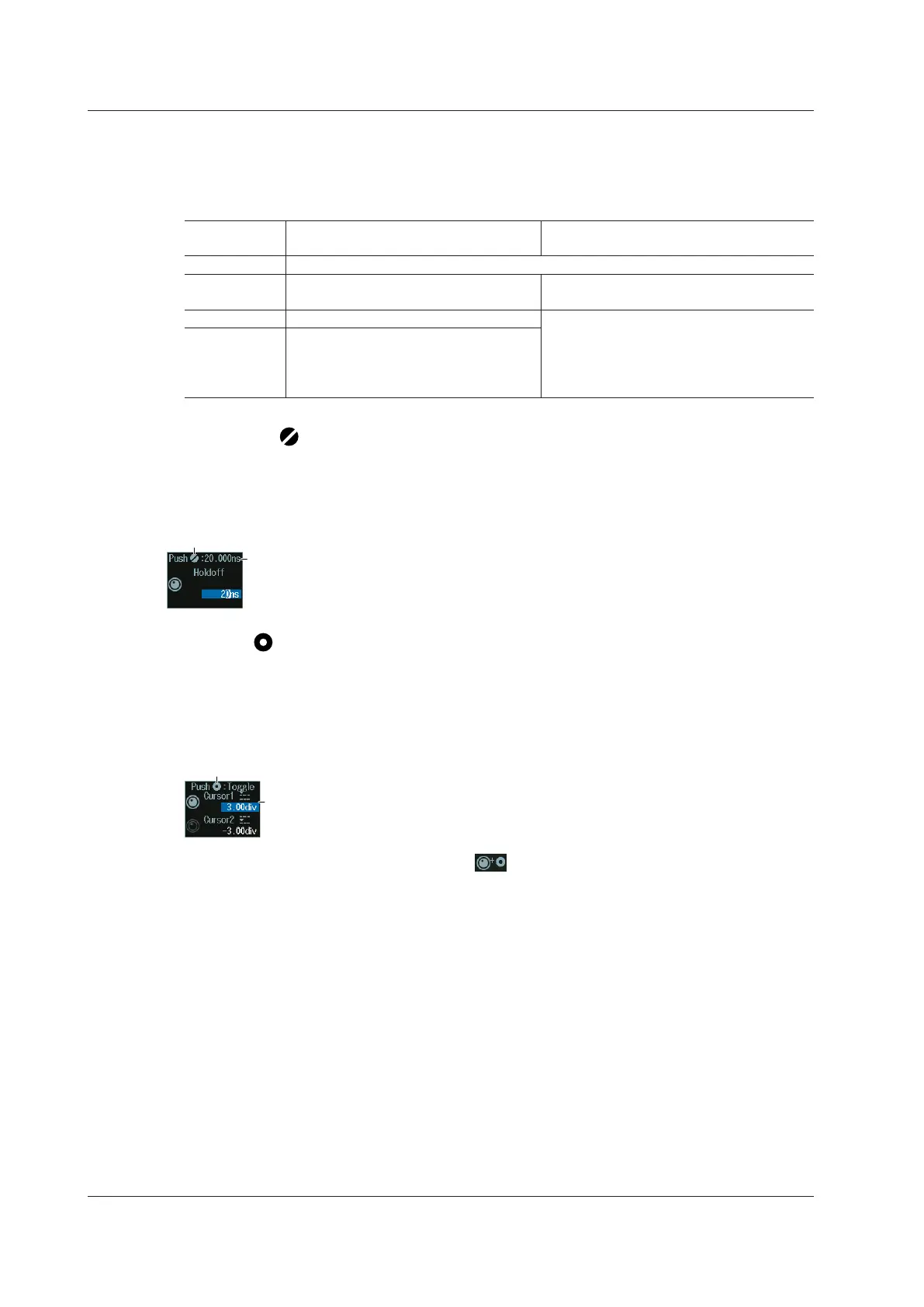

3.1 Key and Jog Shuttle Operations
ESC Key Operation
• If you press ESC when a setup menu or available options are displayed, the screen returns
to the menu level above the current one.
• If you press ESC when the highest level menu is shown, the display changes as follows.
Operation of
pressing ESC
When measured values are displayed When measured values are not displayed
1st time The setup menu disappears.
2nd time Measured values move outside the
waveform area.
The jog shuttle setting menu disappears.
3rd time The jog shuttle setting menu disappears.
Nothing changes from this point.
— From this point, the display position of
measured values switches between
outside the waveform area and inside
the area each time you press ESC.
RESET Key ( ) Operation
If you press RESET when you are using the jog shuttle to set a value or select an item, the
setting is reset to its default value (depending on the operating state of the instrument, the
setting may not be reset).
Default value
RESET key mark
SET Key ( ) Operations
The operation varies as indicated below depending on what you are setting.
• When there are two values to set in the jog shuttle setting menu
The setting that the jog shuttle controls switches each time you press the SET key. The jog
shuttle mark of the setting being controlled appears bright.
Item under the control
of the jog shuttle
SET key mark
• When the jog shuttle and SET key marks ( ) are displayed in the setup menu
Press SET to confirm the selected item.
• When setting a value
Tilting the SET key up or down moves the value up or down.
Tilting the SET key to the left and right changes which digit your are setting.
• When selecting the item to set
Tilting the SET key up, down, left, and right moves the cursor.
