3-20
IM DLM5058-03EN

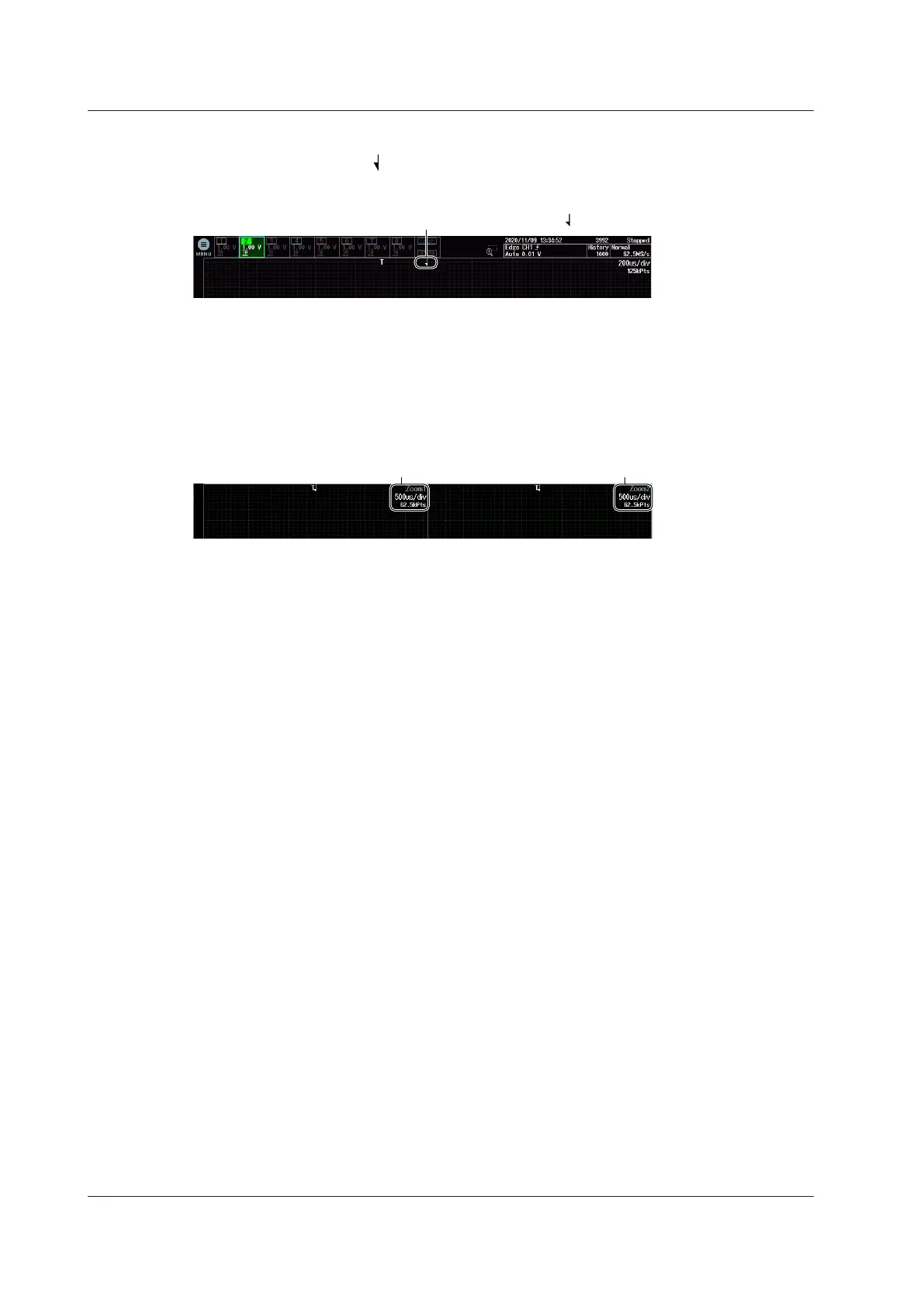

Controlling the Trigger Position
Move the pointer close to displayed on the screen. Drag the mouse horizontally to move
the trigger position.
Trigger position mark ( )
Controlling Time/div during Zooming
During zoom display, move the pointer close to the Time/div value displayed in the zoom
window. Rotate the mouse wheel forward to increase the zoom factor, and rotate it back to
decrease the value. If click the mouse wheel so that Fine illuminates, the resolution is set
to fine mode.
Zoom1 Time/div Zoom2 Time/div
3.4 Using USB Keyboards and Mouse Devices
To Next Page
