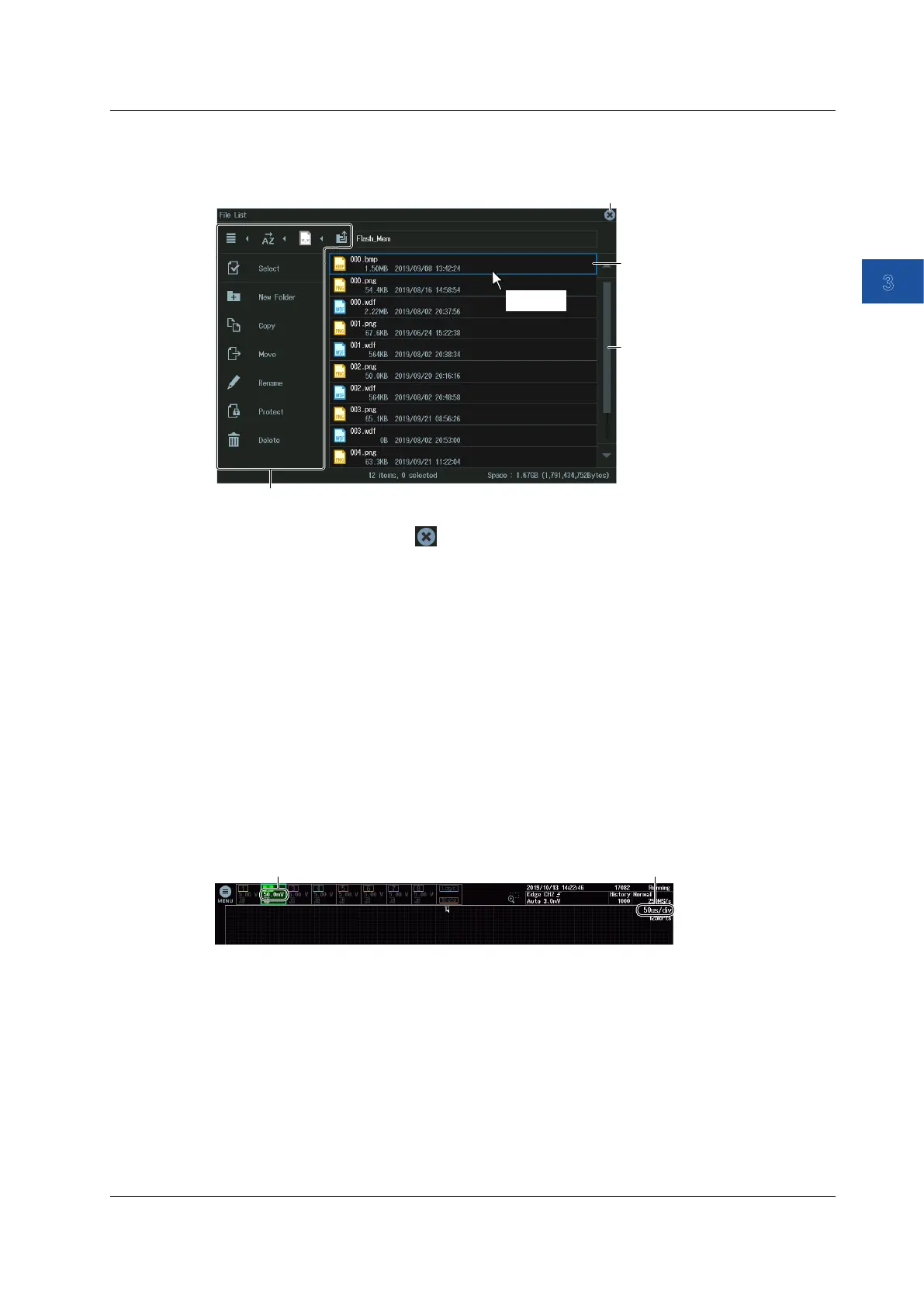

Controlling the File List
To select an item, click it. The operation varies depending on the selected item.
Select a file, folder, or drive
(the selected item turns blue).
Scroll bar
Drag the pointer up or down.
Pointer
To cancel the selection, click in the upper right of the screen. The file list will close
when you cancel your selection.
Controlling the Vertical Scale (V/div) and Time/div
Controlling the Vertical Scale (V/div)
When the waveform of a channel whose voltage is being measured appears on the
display, move the pointer close to the V/div value. Rotate the mouse wheel forward to
decrease the V/div value, and rotate it back to increase the value. If you click the mouse
wheel so that Fine illuminates, the resolution is set to fine mode.
Controlling Time/div
Move the pointer close to the time/div value that is displayed in the upper right of the
screen. Rotate the mouse wheel forward to decrease the Time/div value, and rotate it back
to increase the value.
Vertical scale (V/div) Time/div
