IM 253401-01E
11-9
11
GP-IB Interface
11.5 Setting the Address/Addressable Mode
Relevant Keys
SCALING
AVG FILTER
STORE
RECALL
HARMONICS
SAMPLE
V OVER
A OVER
MODE
RMS
V MEAN
DC
A
B
C
hour
hour
min
min sec
VVA
m
Ak
var
MW
TIME
VPF
m
Ak
deg
MW
%
FUNCTION
AUTO AUTO
MODE
1Φ3W
VHz
m
Ak
h
MW
TRIG
V RANGE A RANGE HOLD
ENTER
INTEGRATOR
START
HARMONICS MEMORY INTEG SET
STOP RESET
REMOTE
INTERFACE OUTPUT
LOCAL
SETUP
h
SHIFT
WIRING
3Φ4W
3Φ3W
3V3A
ELEMENT
123
FUNCTION ELEMENT
123
FUNCTION ELEMENT
123
* Shows the operation panel of the WT130. For the differences
between WT110 and WT130, refer to section 2.2, page 2-2, 2-3
Displays
relevant
keys and
indicators

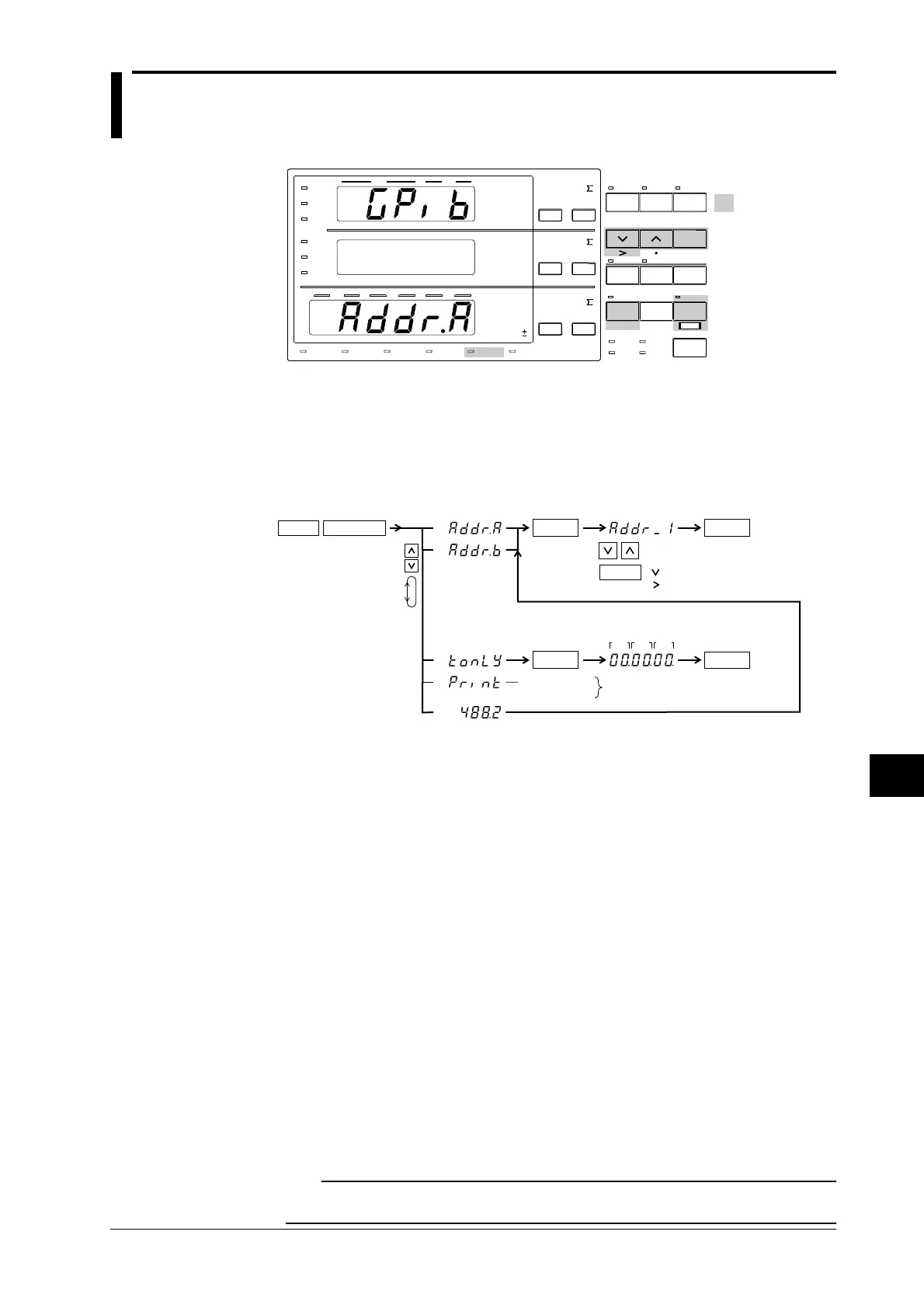

Operating Procedure
1.
SHIFT
LOCAL
INTERFACE
ENTER
3.
Setting the mode
( Display C )
2.
ENTER
6.
Setting the address
( Display C )
Setting the interval
( Display C )
hour min
sec
End
ENTER
6.
End
ENTER
3.
4.
5.
4. up down
5. cursor shift
SHIFT
• Perform operations following the thick line in the below menu.
• Press the ENTER key to confirm the selection or setting.
• When you want to leave the current menu during operation, press the key described
under step 1. The confirmed settings made until that point will be kept.
Same as step 4 to 5
mentioned above.
(Select this when setting commands according to IEEE 488.2-1987.
Note that this menu only appears in case of version 1.11 and later.
Refer to page 3-14 to confirm your version.)
Explanation
Mode Setting
Refer to page 11-1 for details.
Address Setting
A particular address is assigned to each device connected to the GP-IB interface so that each
device can be recognized by every device. Therefore, an address must be assigned to this
instrument when it is connected to a personal computer.
Address setting range: 0 to 30
The initial value is “1”. Initializating the instrument will not result in changing the address
setting.
Talk-only Function
This function only allows the instrument to send data to other devices. If talk-only is off, the
instrument can both send and receive data. In talk-only mode, the instrument cannot be
controlled by the controller.
Terminator
When this instrument is used as a listener
Use “CR+LF”, “LF” or “EOI” as the receiving terminator.
When this instrument is used as a talker
The sending terminator is set using the DL command. The initial setting is “CR+LF+EOI”.
Note
• It is not possible for this instrument to receive data if the “CR” terminator is sent from the controller. It is
also not possible to set “CR” as the terminator which is to be sent from this instrument.
