12.3 Setting the Mode, Handshaking Method, Data
Format and Baud Rate
Relevant Keys
SCALING
AVG FILTER
STORE
RECALL
HARMONICS
SAMPLE
V OVER
A OVER
MODE
RMS
V MEAN
DC
A
B
C
hour
hour
min
min sec
VVA
m
Ak
var
MW
TIME
VPF
m
Ak
deg
MW
%
FUNCTION
AUTO AUTO
MODE
1Φ3W
VHz
m
Ak
h
MW
TRIG
V RANGE A RANGE HOLD
ENTER
INTEGRATOR
START
HARMONICS MEMORY INTEG SET
STOP RESET
REMOTE
INTERFACE OUTPUT
LOCAL
SETUP
h
SHIFT
WIRING
3Φ4W
3Φ3W
3V3A
ELEMENT
123
FUNCTION ELEMENT
123
FUNCTION ELEMENT
123
*Shows the operation panel of the WT130. For the differences
between WT110 and WT130, refer to section 2.2, page 2-2, 2-3
Displays
relevant
keys and
indicator

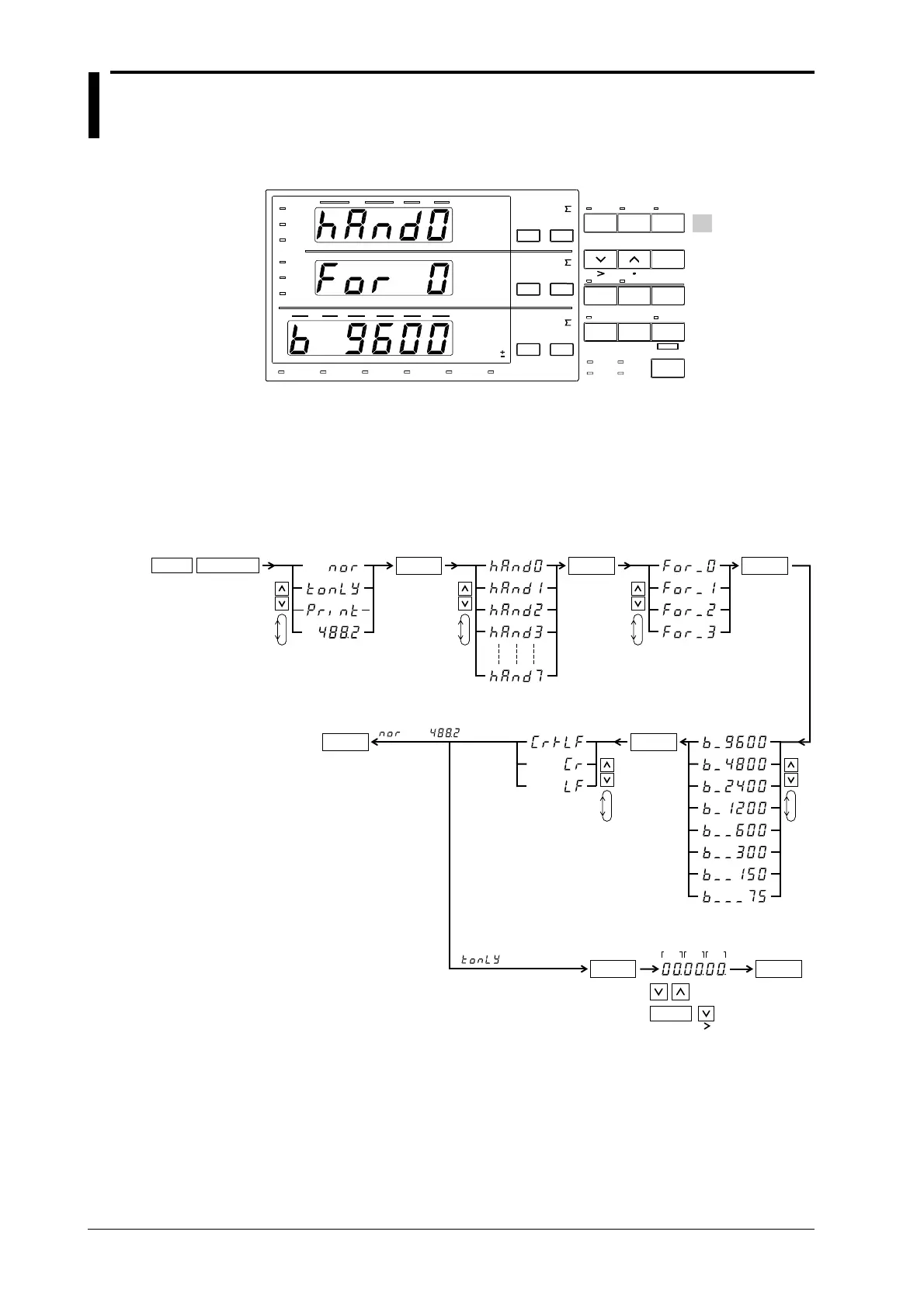

Operating Procedure
1.
SHIFT
LOCAL
INTERFACE
ENTER
3.
Setting the mode
(Display C)
2.
ENTER
9.
hour min
sec
ENTER
14.
END
ENTER
5.
ENTER
7.
4. 6.
8.
Selecting handshaking method
(Display A)
Selecting data format
(Display B)
Setting baud rate
(Display C)
SHIFT
• Perform operations following the thick line in the below menu.
• Press the ENTER key to confirm the selection or setting.
• When you want to leave the current menu during operation, press the key described
under step 1. The confirmed settings made until that point will be kept.
Setting interval
(Display C)
10.
ENTER
11.
END
Setting terminator
(Display C)
ENTER
11.
*
For mode
" " or " "
For mode
" "
12. up down
13. cursor shift
* Select this when setting commands according to IEEE 488.2-1987.
Note that this menu only appears in case of version 1.11 and later.
Refer to page 3-14 to confirm your version.
