IM 253401-01E
2-2

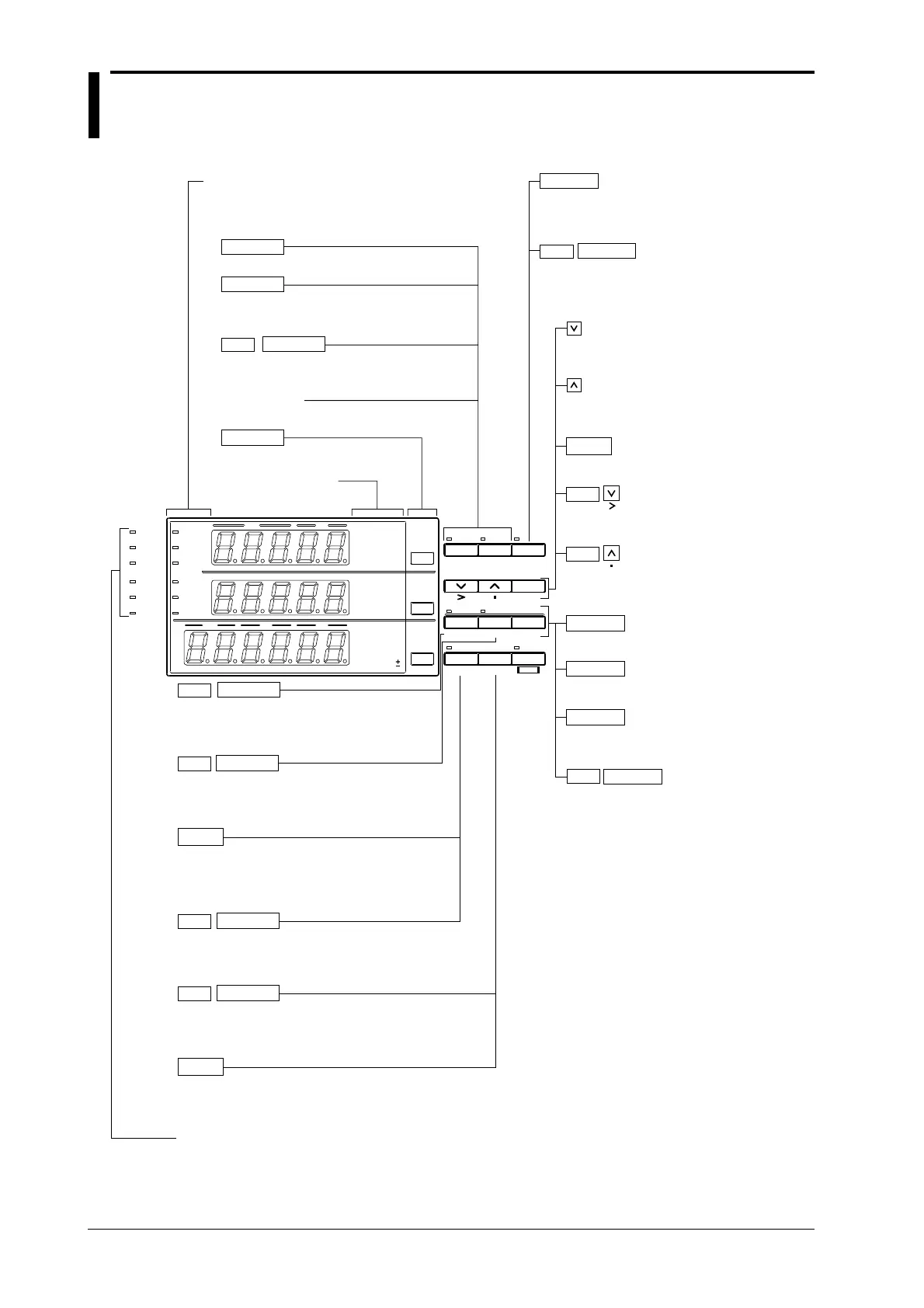

2.2 Operation Keys and Function/Element Display
WT110 (253401): Operation keys and function display
SCALING
AVG
FILTER
STORE
RECALL
HARMONICS
SAMPLE
V OVER
A OVER
MODE
RMS
V MEAN
DC
A
B
C
hour
hour
min
min sec
FUNCTION
VVA
m
Ak
var
MW
TIME
VPF
m
Ak
deg
MW
%
FUNCTION
AUTO AUTO
MODE
FUNCTION
VHz
m
Ak
h
MW
TRIG
V RANGE A RANGE HOLD
ENTER
INTEGRATOR
START
HARMONICS MEMORY INTEG SET
STOP RESET
REMOTE
INTERFACE OUTPUT
LOCAL
SETUP
h
SHIFT
TRIG
SETUP
Keeps the displayed value, and the HOLD
indicator will light up. Pressing once again will
result in canceling HOLD
When in the HOLD situation this results in
updating the displayed value
SHIFT
LOCAL
INTERFACE
SHIFT
SETUP
OUTPUT
Starts integration
Stops integration
Integration value and elapsed time of
integration are set to zero(0)
Shows the setting menu for integration
mode/time, and rated integration time (Ch. 7)
RESET
INTEG SET
RESET
STOP
START
ENTER
For decreasing the voltage/current range,
and for setting of functions/values
For increasing the voltage/current range,
and for setting of functions/values
For verifying the set range/function/value
Moves the cursor of a value from left to right
Moves the decimal point from left to right
SHIFT
SHIFT
HOLD
SHIFT
HOLD
SHIFT
HARMONICS
START
SHIFT
MEMORY
STOP
SHIFT
MODE
V RANGE
A RANGE
V RANGE
Shows the voltage range setting menu (page 4-4)
Shows the current range setting menu (page 4-4,
4-8)
Switches between modes (page 4-1)
AUTO indicator
Lights up when range is AUTO
FUNCTION
Sets the displayed function (Ch. 5, 6)
Function/unit display
Indicators for operation conditions
Shows sampling, voltage/current overrange and
measurement mode
Shows the setting menu for harmonics ON/OFF,
PLL source, and element selection (Ch. 8)
When the REMOTE indicator is lit, the remote
function will be canceled. When the REMOTE
indicator is not lit, the setting menu for
communication/printing will appear
Shows the setting menu for storing/recalling
measurement data and set-up information (Ch. 9)
Shows the setting menu for communication/printing
(Ch. 11, 12)
Shows the setting menu for communication output items, D/A
output, plotter /printer output and comparator output (Ch. 10 to
12)
For settings such as initializing settings, filter, average, scaling,
computing and ext. sensor input (Ch. 4)
Indicators for operating functions
When a function is set and in operation, this indicator will light up
LOCAL
SHIFT
