IM 253401-01E
10-9
10
Using External In / Output
10.5 Setting the Comparator Mode (optional)
Relevant Keys
SCALING
AVG FILTER
STORE
RECALL
HARMONICS
SAMPLE
V OVER
A OVER
MODE
RMS
V MEAN
DC
A
B
C
hour
hour
min
min sec
VVA
m
Ak
var
MW
TIME
VPF
m
Ak
deg
MW
%
FUNCTION
AUTO AUTO
MODE
1Φ3W
VHz
m
Ak
h
MW
TRIG
V RANGE A RANGE HOLD
ENTER
INTEGRATOR
START
HARMONICS MEMORY INTEG SET
STOP RESET
REMOTE
INTERFACE OUTPUT
LOCAL
SETUP
h
SHIFT
WIRING
3Φ4W
3Φ3W
3V3A
ELEMENT
123
FUNCTION ELEMENT
123
FUNCTION ELEMENT
123
*Shows the operation panel of the WT130. For the differences
between WT110 and WT130, refer to section 2.2, page 2-2, 2-3
Displays
relevant
keys and
indicator

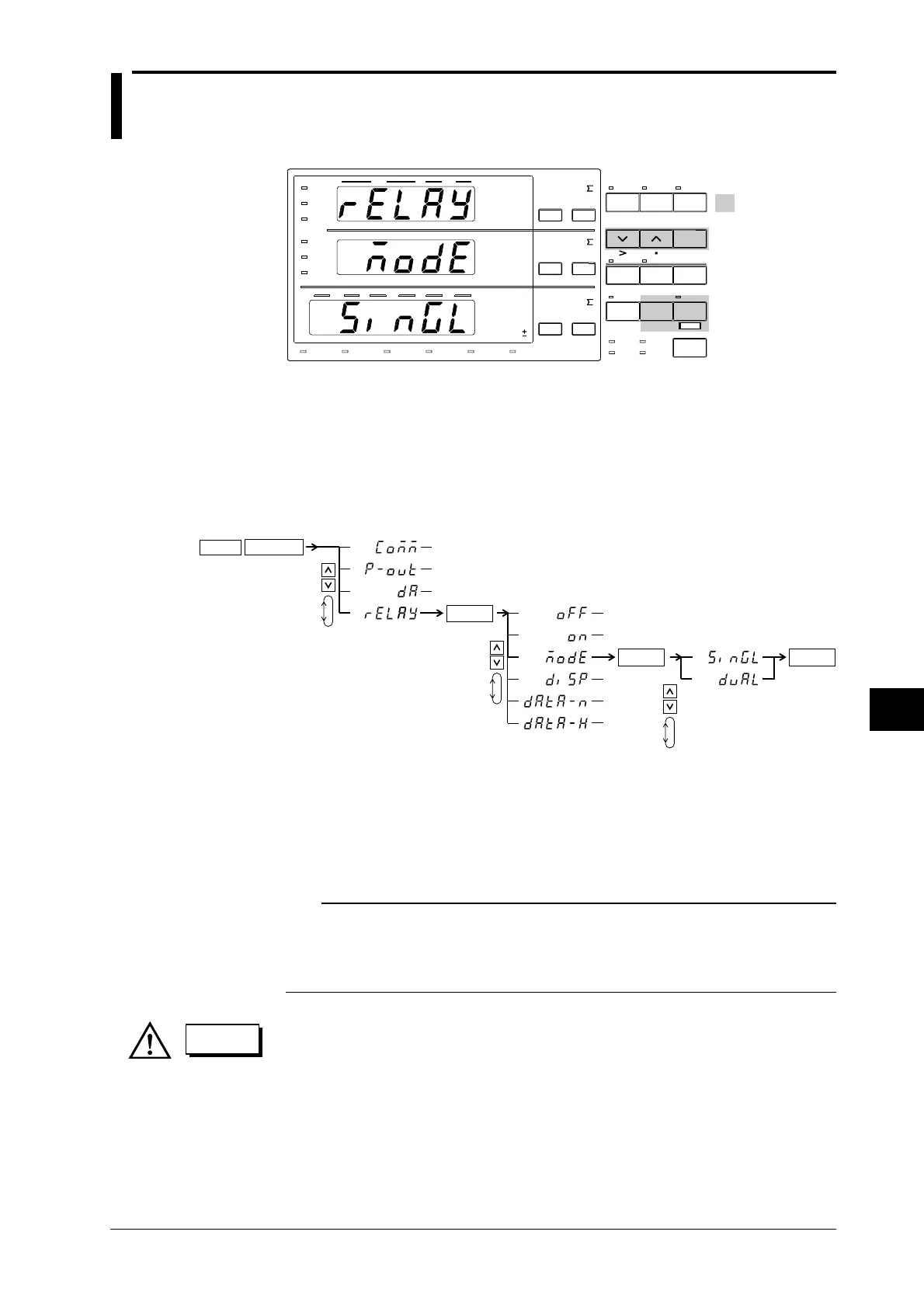

Operating Procedure
1.
SHIFT
SETUP
OUTPUT
ENTER
3.
Selecting the comparator function
(Display C)
(Display C)
2.
4.
ENTER
5.
6.
Selecting the mode
(Display C)
ENTER
7.
End
• Perform operations following the thick line in the below menu.
• Press the ENTER key to confirm the selection or setting.
• When you want to leave the current menu during operation, press the key described
under step 1. The confirmed settings made until that point will be kept.
Explanation
Setting the Comparator Mode
The following two settings are available. For details, refer to pages 10-7, 10-8. The initial value
is SinGL.
• SinGL: the comparator mode will be set to single mode;
• duAL : the comparator mode will be set to dual mode.
Note
• When you change the comparator mode after having set the comparator limit (refer to page 10-10), the
situation will change as follows. Also verify the comparator limits again.
• When you change the mode to the dual mode after having set limits in the single mode, the limit of ch2
will take the value of the limit of ch1, and the limit of ch4 will take the value of the limit of ch3. When
you return again to the single mode, the previous values of each channel will be restored.
CAUTION
Do not change the comparator mode, measurement mode or harmonic
analysis ON/OFF, while the comparator function is in progress (ON).
Similar to the Note above, changing the type of limit might result in
unexpected statuses of the output relay.
To Next Page
