10.6 Setting the Comparator Limit Values (optional)
Relevant Keys
SCALING
AVG FILTER
STORE
RECALL
HARMONICS
SAMPLE
V OVER
A OVER
MODE
RMS
V MEAN
DC
A
B
C
hour
hour
min
min sec
VVA
m
Ak
var
MW
TIME
VPF
m
Ak
deg
MW
%
FUNCTION
AUTO AUTO
MODE
1Φ3W
VHz
m
Ak
h
MW
TRIG
V RANGE A RANGE HOLD
ENTER
INTEGRATOR
START
HARMONICS MEMORY INTEG SET
STOP RESET
REMOTE
INTERFACE OUTPUT
LOCAL
SETUP
h
SHIFT
WIRING
3Φ4W
3Φ3W
3V3A
ELEMENT
123
FUNCTION ELEMENT
123
FUNCTION ELEMENT
123
*Shows the operation panel of the WT130. For the differences
between WT110 and WT130, refer to section 2.2, page 2-2, 2-3
Displays
relevant
keys and
indicator

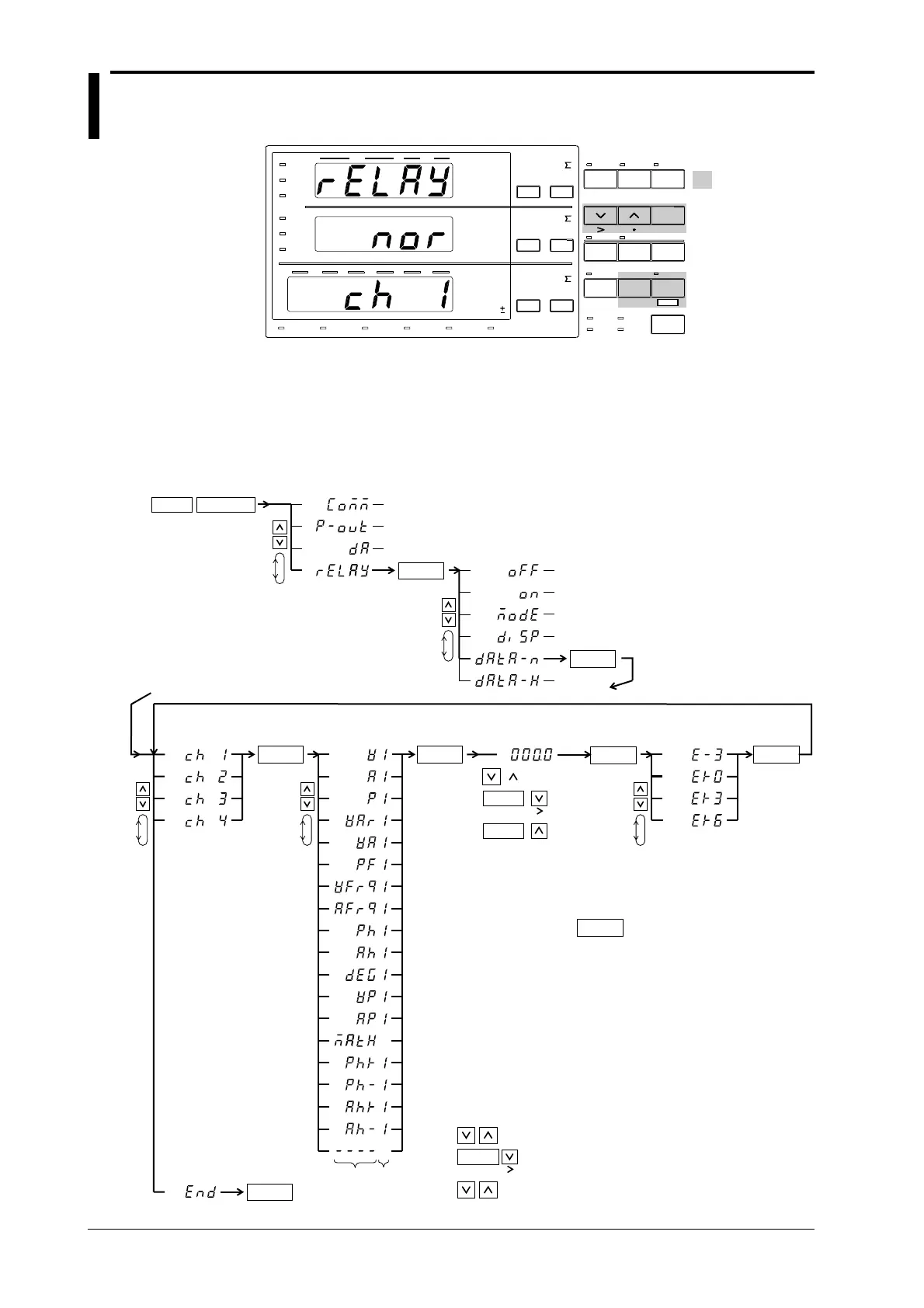

Operating Procedure
• Setting the Comparator Limit Values in case of Normal Measurement
1.
SHIFT
SETUP
OUTPUT
ENTER
3.
Selecting the comparator function
(Display C)
(Display C)
2.
4.
ENTER
5.
Relay setting
(Display C)
6.,18.
ENTER
7.
Setting type of limit
(Display A)
ENTER
19.
End
*1
8.
ENTER
11.
Setting limit value
(Display B)
ENTER
15.
Setting exponent
(Display C)
ENTER
17.
16.
12.
Up/down
13.
Shift cursor
14.
Shift decimal
point
SHIFT
SHIFT
•
8.
Sets the A column
9.
Moves to the B column
10.
Select from 1 to 4
SHIFT
*2
• Perform operations following the thick line in the below menu.
• Press the ENTER key to confirm the selection or setting.
• When you want to leave the current menu during operation, press the key described
under step 1. The confirmed settings made until that point will be kept.
ENTER
*1 When you press the key at step 17,
the output channel displayed at display C will
change to the next channel, i.e. from ch1 to ch2
and so forth.
*2 Depends on the model number. Refer to the
specifications section for more details.
*3 Displayed on WT110/WT130 with ROM version
2.01 or later.
A
B
*3
*3
*3
