YOKOGAWA WT110 User Manual

IM 253401-01E
App2-28
Appendix 2.3 Commands
2.3.11 RELay Group
The commands in the RELay group are used to make settings relating to, and inquiries about the comparator function. This
allows you to make the same settings and inquiries as when using the lower menus of [OUTPUT]-”rELAY”. This group is only
useful in case your instrument is equipped with the /CMP option.

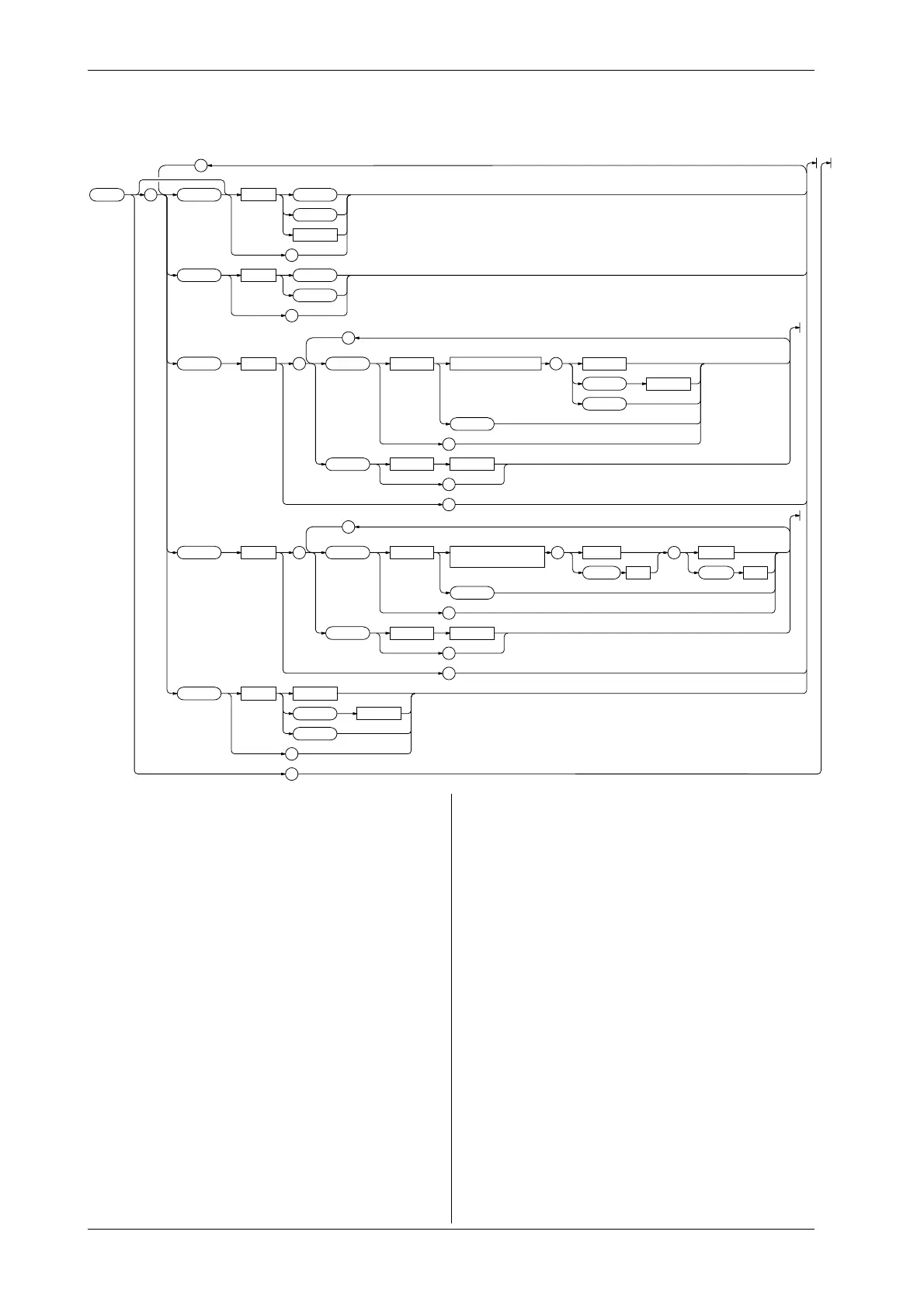

:RELay : STAT e
<Space>
OFF
ON
<NRf>
?
MODE
<Space>
SINGle
DUAL
?
NCHannel
<x>
: FUNCtion <Space> ,
<NRf>
ELEMent
<x>
SIGMa
OFF
?
THReshold <Space> <NRf>
?
?
HCHannel
<x>
: FUNCtion <Space> ,
<NRf>
,
<NRf>
ORDer
<x>
ELEMent
<x>
OFF
?
THReshold <Space> <NRf>
?
?
DISPla
y
<Space>
<NRf>
CHANnel <x>
OFF
?
?
<Normal meas. function>
<Harmonic analysis
function>
;
;
;
RELay:DISPlay
Function Sets the comparator display OFF, or, in case of ON,
the channel to be displayed/queries the current setting.
Syntax RELay:DISPlay {<NRf>|CHANnel<1-4>|OFF}
RELay:DISPlay?
{<NRf>}=1 to 4:channel
Example RELAY:DISPLAY 1
RELAY:DISPLAY? → :RELAY:DISPLAY 1
RELay:HCHannel<x>?
Function Queries all settings related to relay output items in
case of harmonic analysis.
Syntax RELay:HCHannel<x>?
<x>= 1 to 4
Example RELAY:HCHANNEL1? → :RELAY:HCHANNEL1:
FUNCTION V,1,1;
THRESHOLD 600.0E+00
RELay?
Function Queries all settings relating to the comparator
function.
Syntax RELay?
Example RELAY? → :RELAY:STATE 0;MODE SINGLE;NCHANNEL1:
FUNCTION V,1;THRESHOLD
600.0E+00;:RELAY:NCHANNEL2:
FUNCTION A,1;THRESHOLD
20.00E+00;:RELAY:NCHANNEL3:
FUNCTION W,1;THRESHOLD
1.200E+03;:RELAY:NCHANNEL4:
FUNCTION PF,1;THRESHOLD
1.000E+00;:RELAY:HCHANNEL1:FUNCTION
V,1,1;THRESHOLD
600.0E+00;:RELAY:HCHANNEL2:FUNCTION A,1,1;
THRESHOLD 20.00E+00;:RELAY:HCHANNEL3:
FUNCTION W,1,1;THRESHOLD
1.200E+03;:RELAY:HCHANNEL4:FUNCTION
PF,1;THRESHOLD 1.000E+00;:RELAY:DISPLAY OFF
