YOKOGAWA WT310EH - 2.3 Setting the Measurement Range When Using Direct Input

2-4
IM WT310E-01EN
2.3 Setting the Measurement Range When Using
Direct Input
Procedure

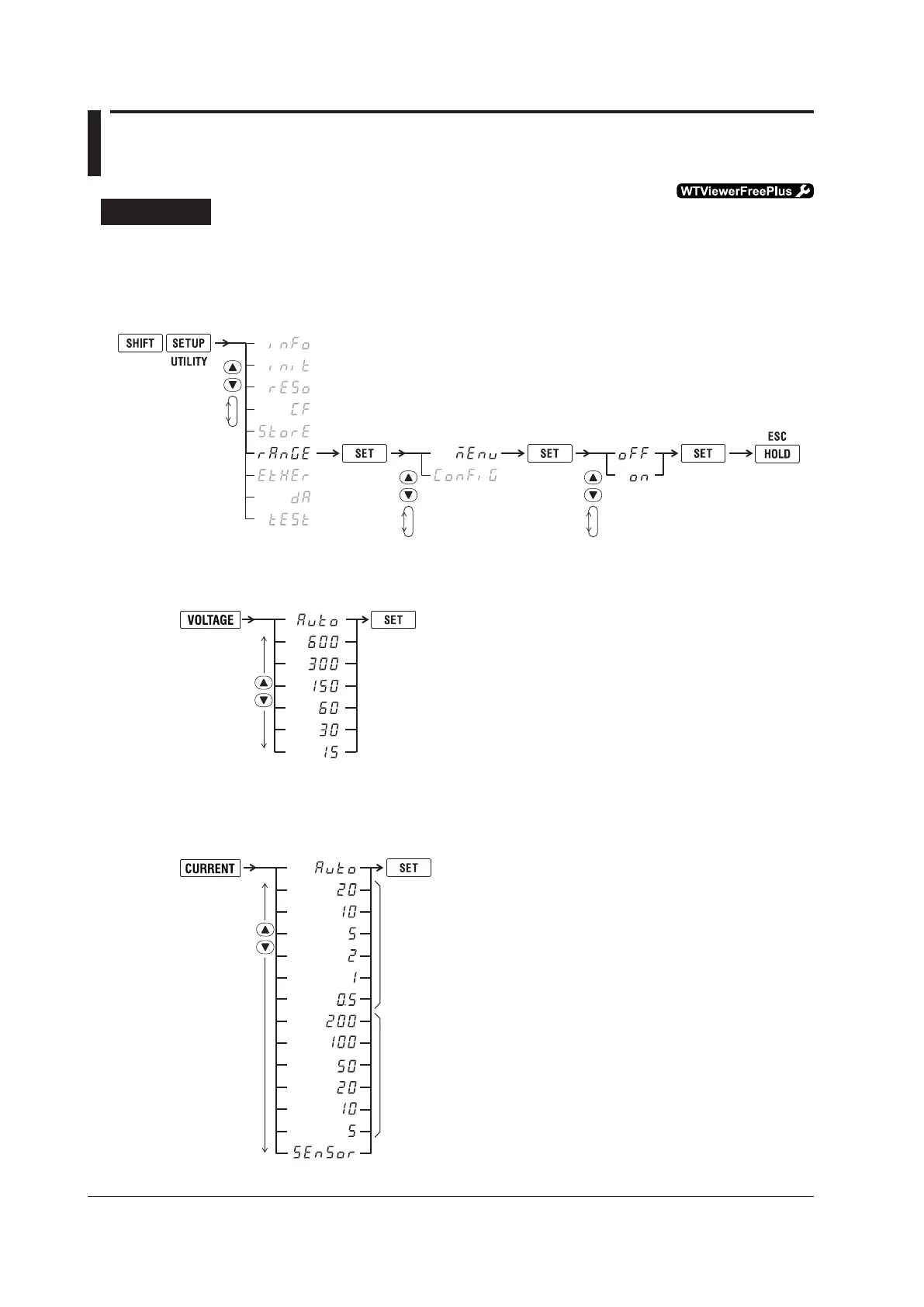

Follow the procedure indicated by the thick lines in the following menu.
Measurement Range Mode
2.
6.
(Display D)
Select the measurement range mode.
(Display B)
1.
3.
7.
Confirm
the setting.
Close menu.
4.
(Display C) 5.
8.
Voltage Range in Menu Configuration Mode
(Display C) 1. 3.
2.
Confirm the setting.
The options on the left appear when
the crest factor has been set to 3. The
following options appear when the
crest factor has been set to 6 or 6A.
Auto, 300, 150, 75, 30, 15, 7.5
Current Range in Menu Configuration Mode
WT310E
3.
(Display C)
1.
2.
Confirm
the setting.
The unit is “A.”
The unit is “mA.”
The options on the left appear when
the crest factor has been set to 3.
The following options appear when the
crest factor has been set to 6 or 6A.
Auto
10, 5, 2.5, 1, 0.5, 0.25 ←A
100, 50, 25, 10, 5, 2.5 ←mA
SEnSor
