2.9 Configuring the Input Filters
Procedure

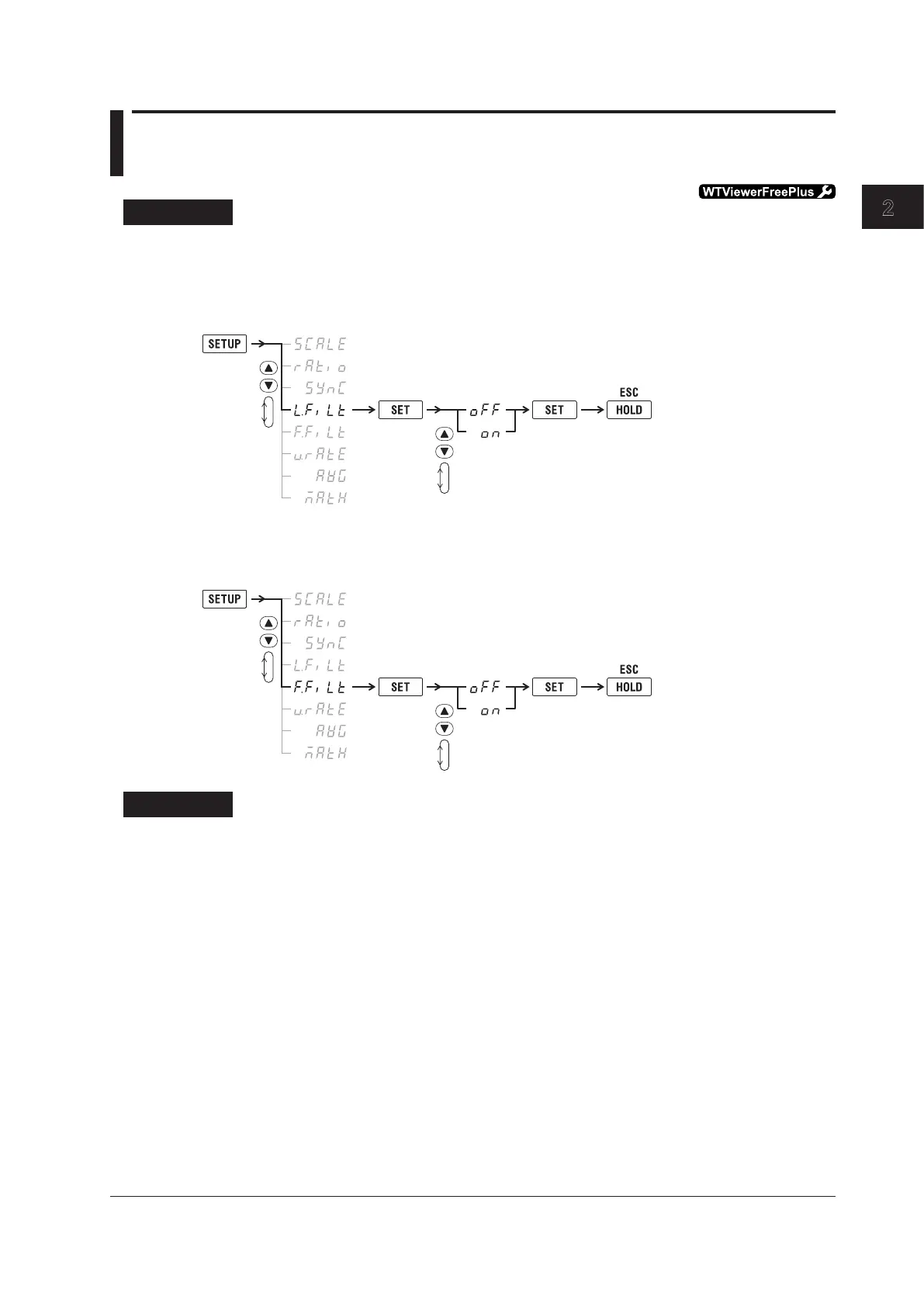

Follow the procedure indicated by the thick lines in the following menu.
Turning the Line Filter On or Off
2.
4.
(Display C)
Select the filter feature.
(Display B)
1.
3.
5.
Confirm
the setting.
Close menu.
6.
Turning the Frequency Filter On or Off
4.
2.
(Display C)
Select the filter feature.
(Display B)
1.
3.
5.
Confirm
the setting.
Close menu.
6.
Explanation
There are two types of input filters: the line filter and the frequency filter. You can use these filters
to eliminate the noise of inverter waveforms, distorted waveforms, and the like, and acquire stable
measured values.
Line Filter
The line filter is only applied to the measurement circuit. The line filter removes noise components from
theinputsignal.Thecutofffrequencyis500Hz.ThedefaultsettingisoFF.
• on:ThelinefilterisenabledandtheLINEindicatorilluminates.
• oFF:Thelinefilterisdisabled.TheLINEindicatorturnsoff.
