4-8
IM WT310E-01EN
4.5
Displaying the Efficiency (WT332E/WT333E only),
Crest Factors, the Results of Computations Using
Basic Arithmetic, and Average Active Powers
Procedure
Computation Functions

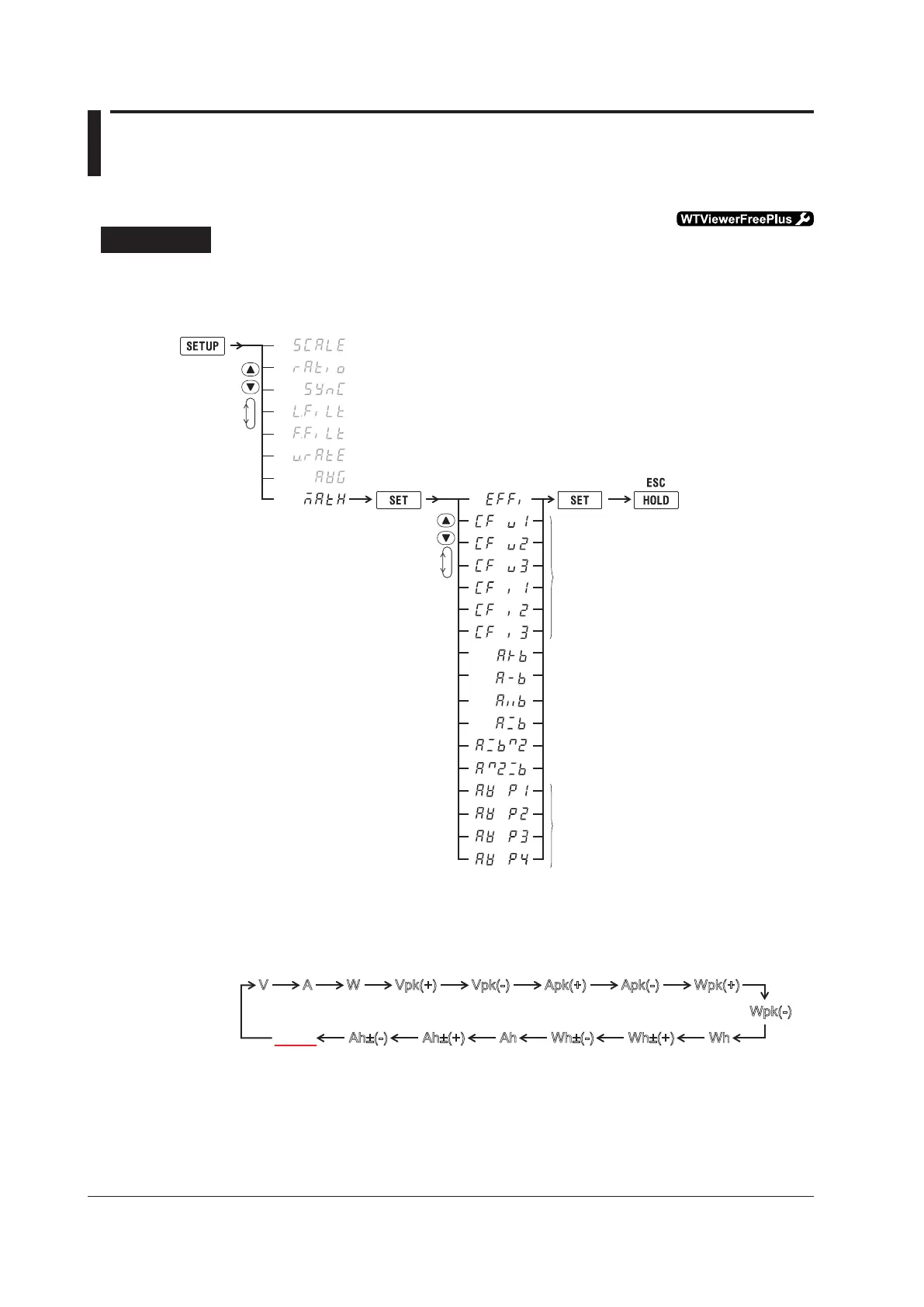

Follow the procedure indicated by the thick lines in the following menu.
Select the basic arithmetic feature.
(Display B)
1.
3.
4.
5.
Confirm
the setting.
Close menu.
(Display C)
2.
Example of the display on the
WT333E.
The display changes depending
on the number of elements that
are equipped.
Example of the display on the
WT333E.
The display changes depending
on the number of elements that
are equipped.
6.
Displayed Function
Press the FUNCTION key for display C to select MATH (computation functions).
Each time you press FUNCTION, the displayed function changes in the order shown below.
Display
C
MATH
• Vpk,Apk,Wpk,Wh±,andAh±allilluminatetwice.Thefirsttimeisforthepositivemeasurementsandthe
second time is for the negative measurements.
• TheMATHindicatorisontheleftsideofthe7-segmentLEDdisplay.
• PressSHIFTbeforepressingFUNCTIONtochangethedisplayedfunctioninreverseorder.
When the displayed function is set to MATH, there is no element indication.
Pressing ELEMENT has no effect.
