5.4 Notes about Using Integration
Relationship between the Holding of Integration and START/
STOP Key Operations
After you hold the display by pressing HOLD, the displayed integration results and communication
output are held, but integration continues. The relationship between the holding of integration and
START/STOPkeyoperationsisexplainedbelow.
• Startingintegrationwhenvaluesareheld
The display and communication output do not change. If you release the hold on the displayed
values or perform a single measurement (by pressing SHIFT+HOLD (SINGLE)), the integration
results at that point in time are displayed and output through communication.

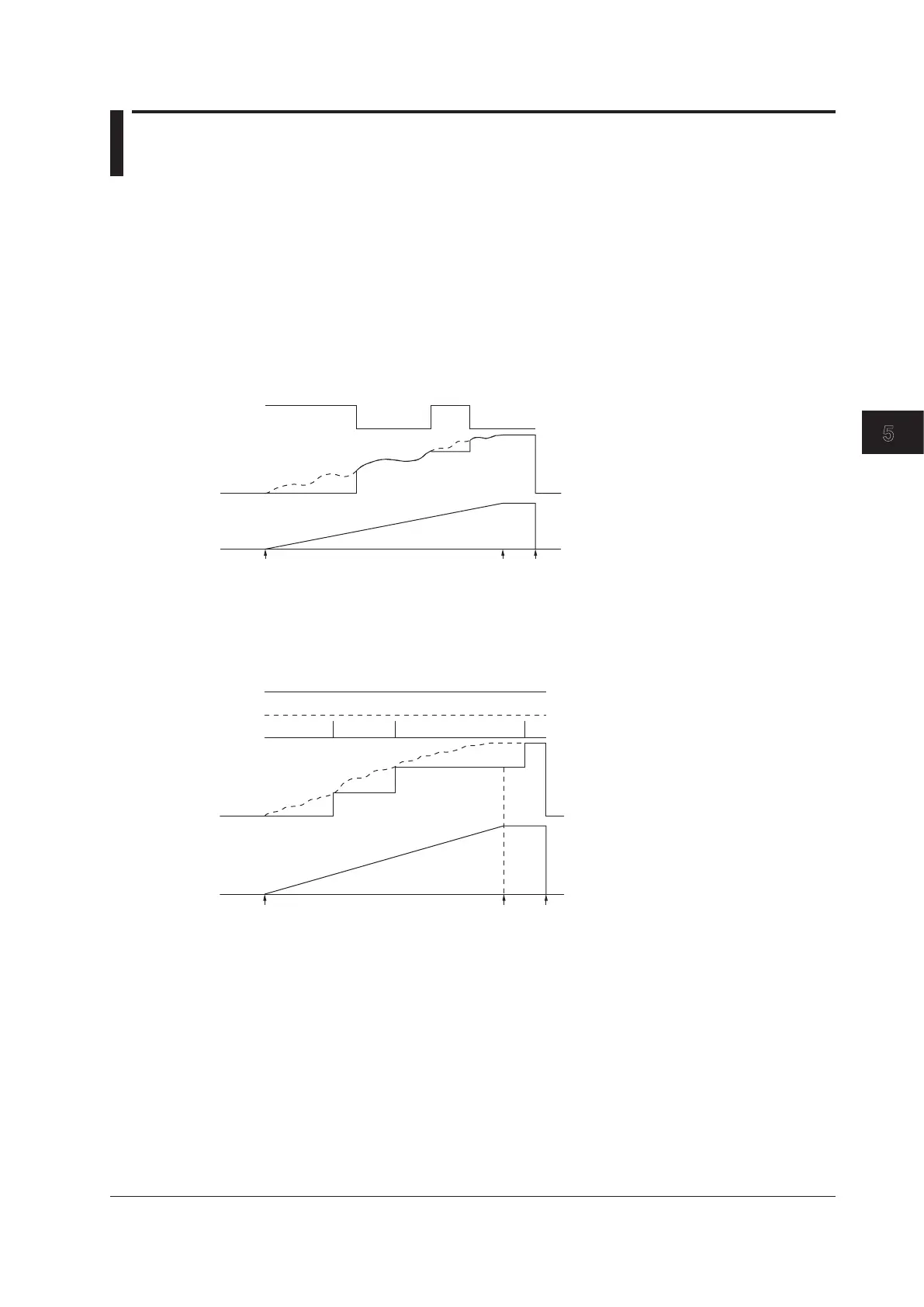

ON
HOLD
OFF
Displayed
value
Elapsed
integration time
(The dotted line is the integrated value.)
START
STOP
RESET
• Stoppingintegrationwhenvaluesareheld
Display and communication output values do not change from the held values. If you release the
hold on the displayed values or perform a single measurement, the integration results at the time
that you stopped integration are displayed and output through communication.
Elapsed
integration time
(The dotted line is the integrated value.)
SINGLE
OFF
ON
HOLD
ON ON ON
Displayed
value
START
STOP
RESET
