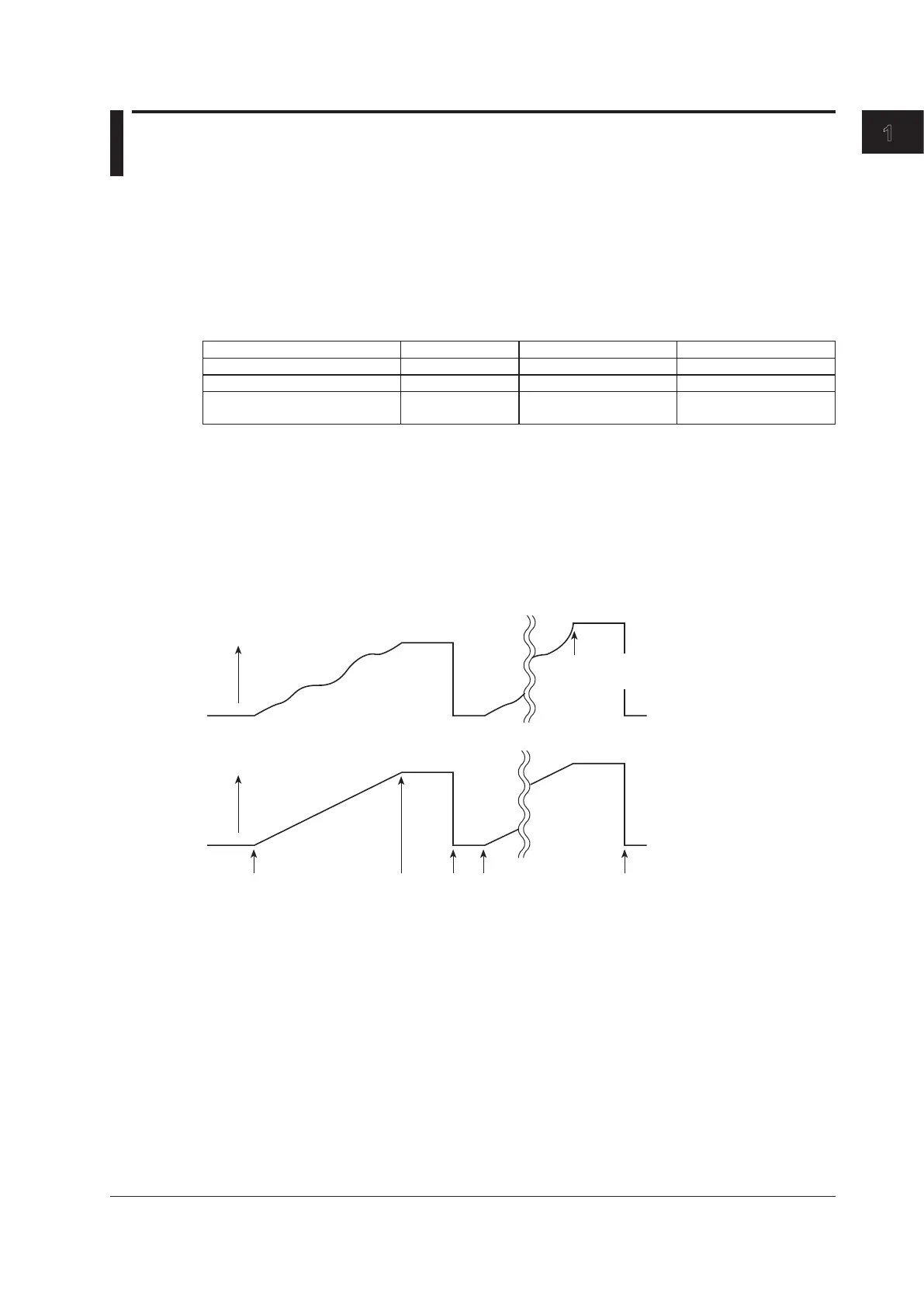

1.5 Integrated Power (Watt hour)
You can integrate the active power (watt hour) and current (ampere hour).
For information about the measurement function symbols for integrated power (watt hour) and their
meanings, see “Items That This Instrument Can Measure.”
Integration Modes (For procedures, see section 5.2)
The integration feature has the following three modes.
Integration Mode Start Stop Repetition
Manual integration mode Key operation Key operation ---
Standard integration mode Key operation Stopped by the timer ---
Continuous (repetitive) integration
mode
Key operation Key operation Repeatswhenthetimer
expires
Manual Integration Mode
When you set the integration mode to standard integration mode (nor) and set the integration timer
to 00000:00:00, this instrument performs integration in manual integration mode. When you press
START,integrationstarts,anditcontinuesuntilyoupressSTOP.However,ifeitheroftheconditions
below is met, integration is stopped, and the integration time and integrated value are held.
• Theintegrationtimereachesthemaximumintegrationtime(10000hours).
• Theintegratedvaluereachesitsmaximumorminimumdisplayablevalue.
ResetStart Stop Start Reset
Hold
Hold
Hold
Hold
When the maximum
integrated value is reached
Integrated
value
Integration
time
