iii
IM WT310E-01EN
Symbols and Conventions Used in Procedural Explanations
The contents of the procedural explanations are indicated using the following symbols.
This mark appears on the right side of the page to indicate features and settings that can be
operatedandconfiguredusingtheWTViewerFreePlusapplicationsoftware,whichcomeswiththe
instrument.
Procedure
Operations are explained using flowcharts. See the example below for an
explanation of how various operations are indicated. All procedures are written
under the assumption that you are starting operation at the beginning of the
procedure, so you may not need to carry out all the steps in a procedure when
you are changing the settings.

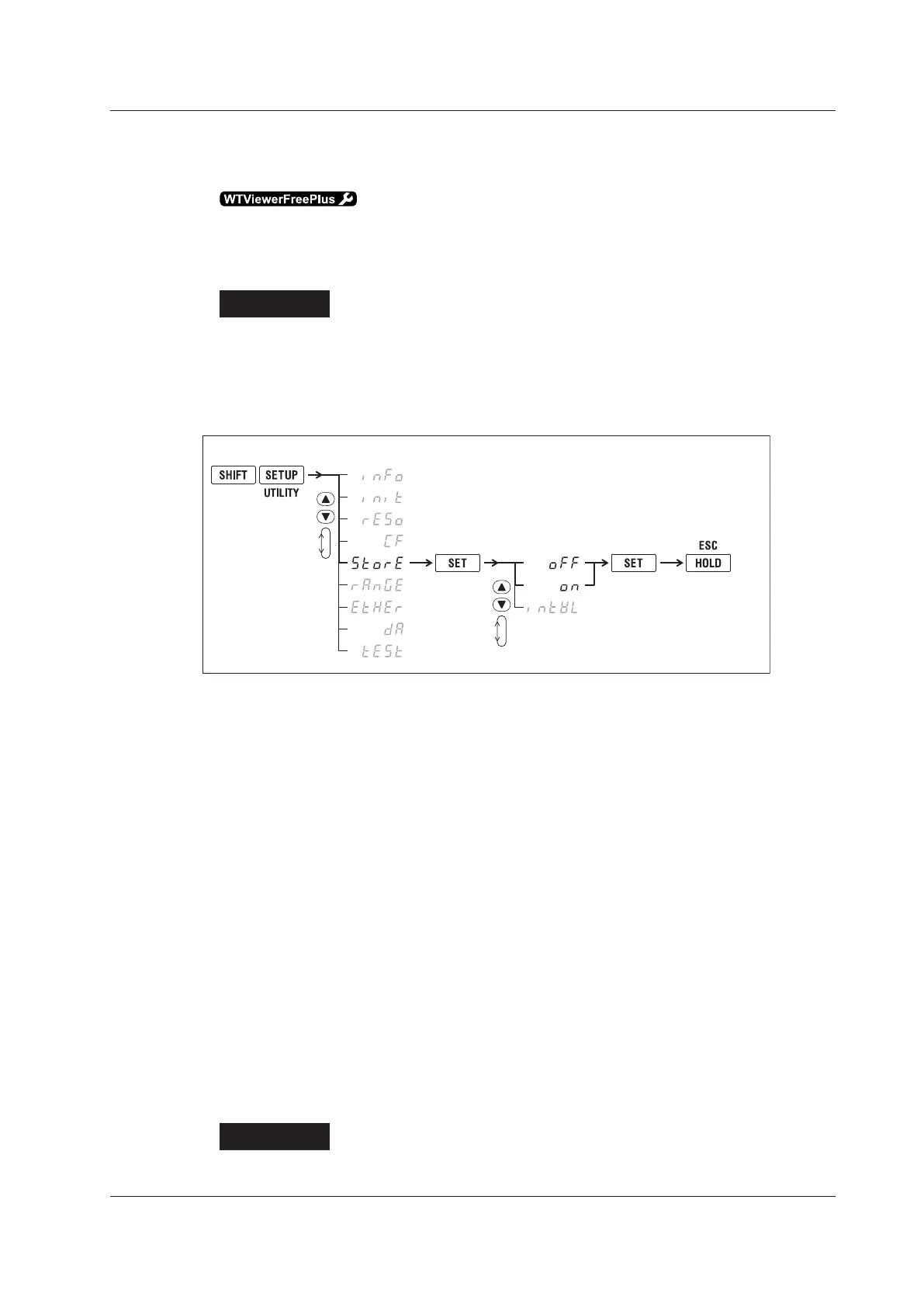

Example: Operations for turning the storage feature on and off
4.
2.
(Display C)
Configure the storage feature.
(Display B)
1.
3.
5.
Confirm the
setting.
Close menu.
6.
The above flow chart indicates the following operations.
You can configure items that are blinking.
1.
Press the SHIFT key so that it illuminates, and then press SETUP (UTILITY).
AmenuappearsindisplayB.
2.
Use ▲ or ▼ to select StorE.
Pressing either key cycles through 9 menu items.
3.
Press SET to confirm the selection of StorE.
The StorE function menu that you selected in step 2 appears in display C.
4.
Use ▲ or ▼ to select oFF or on.
Pressing either key cycles through 3 menu items.
5.
Press SET to confirm the selection of oFF.
The selected or set item is confirmed when you press SET.
AmenuappearsindisplayB.
6.
Press HOLD (ESC) to return the menu display to the measured data display.
• Whenyouaremakinganumberpositive(nosign)ornegative(–)orsettinganumber,whenthe
digit in the display that the input will be added to is blank, an underscore flashes at the position of
the digit.
• Whileyouareperformingmenuoperations,toleavethemenudisplay,pressHOLD(ESC).All
setting changes that you have confirmed by pressing the SET key will be reflected in the settings.
Explanation
This section describes the setup items and the limitations regarding the
procedures. It may not give a detailed explanation of the feature. For a detailed
explanation of the feature, see chapter 1.
Conventions Used in This Manual
