York MILLENNIUM YCAR0315 User Manual

38
YORK INTERNATIONAL
FORM 150.52-NM2 (1001)

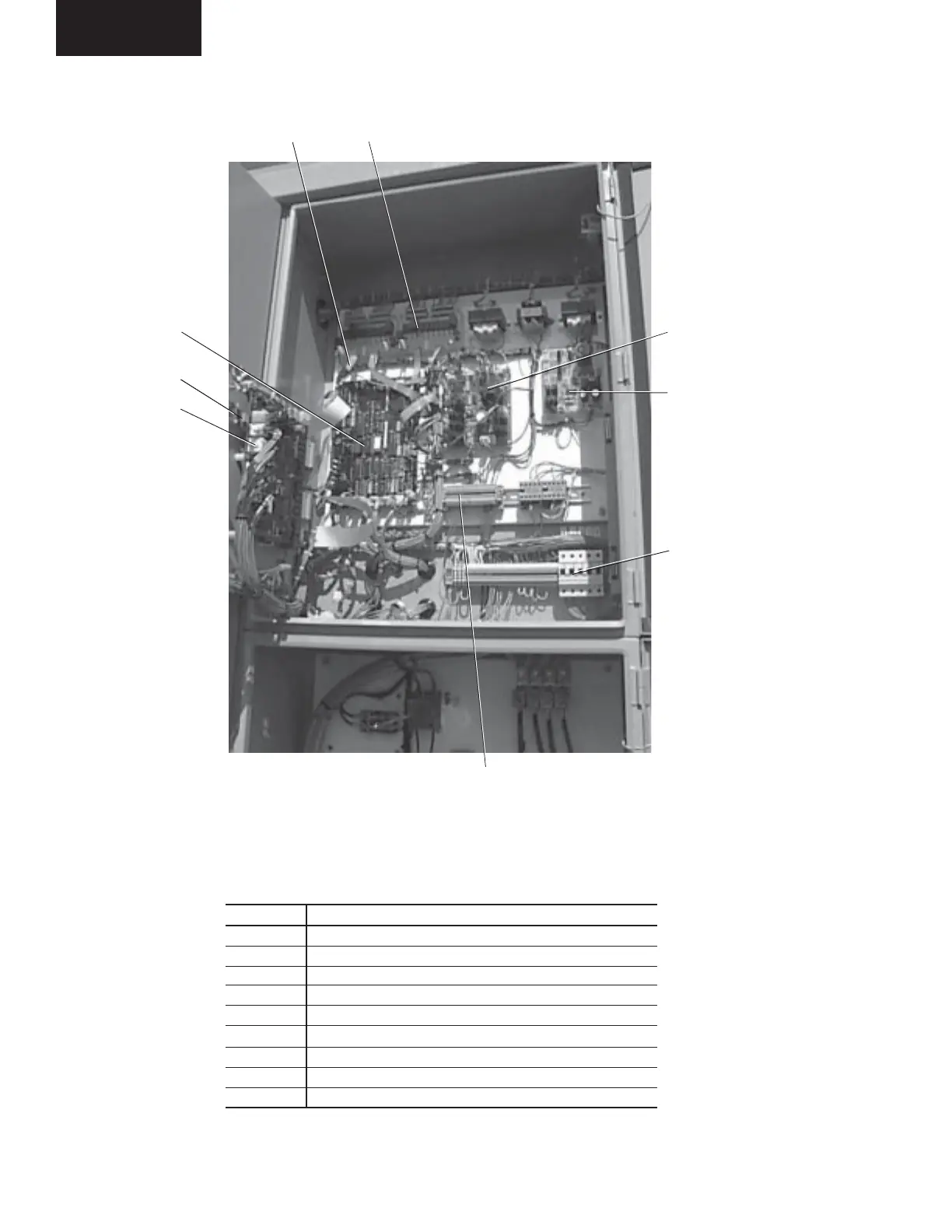

LOGIC SECTION LAYOUT
FIG. 9 – LOGIC SECTION LAYOUT
Installation
PHOTOGRAPH OF
60 HZ MODEL LOGIC SECTION
ITEM
1
2
3
4
5
6
7
8
9
DESCRIPTION
Microprocessor Board
Back of Keypad
Back of Display
I/O Expansion Board #1
Power Supply Board
Relay Output Board #1
Relay Output Board #2
Flow Switch and Customer Connection Terminals
Circuit Breakers
00247VIP
6 7
1
3
2
8
9
5
4
