York MILLENNIUM YCAR0315 - Power Connection Options; FIG. 14 - Multiple Point Power Supply Connection; FIG. 15 - Optional Single-Point Power Supply W;Internal Circuit Breakers

58
YORK INTERNATIONAL
FORM 150.52-NM2 (1001)
POWER CONNECTION OPTIONS
STYLE “A” POWER WIRING CONNECTIONS
Optional Field Provided
115-1-60 Micro panel Supply
Each of the two field provided
power supply circuits to the
unit with individual branch cir-
cuit protection. Field connec-
tions to factory provided Cir-
cuit Breakers (Opt), Non-Fused
Disconnect Switches (Opt), or
Terminal Blocks (Opt) in each
of the two Power Panels.

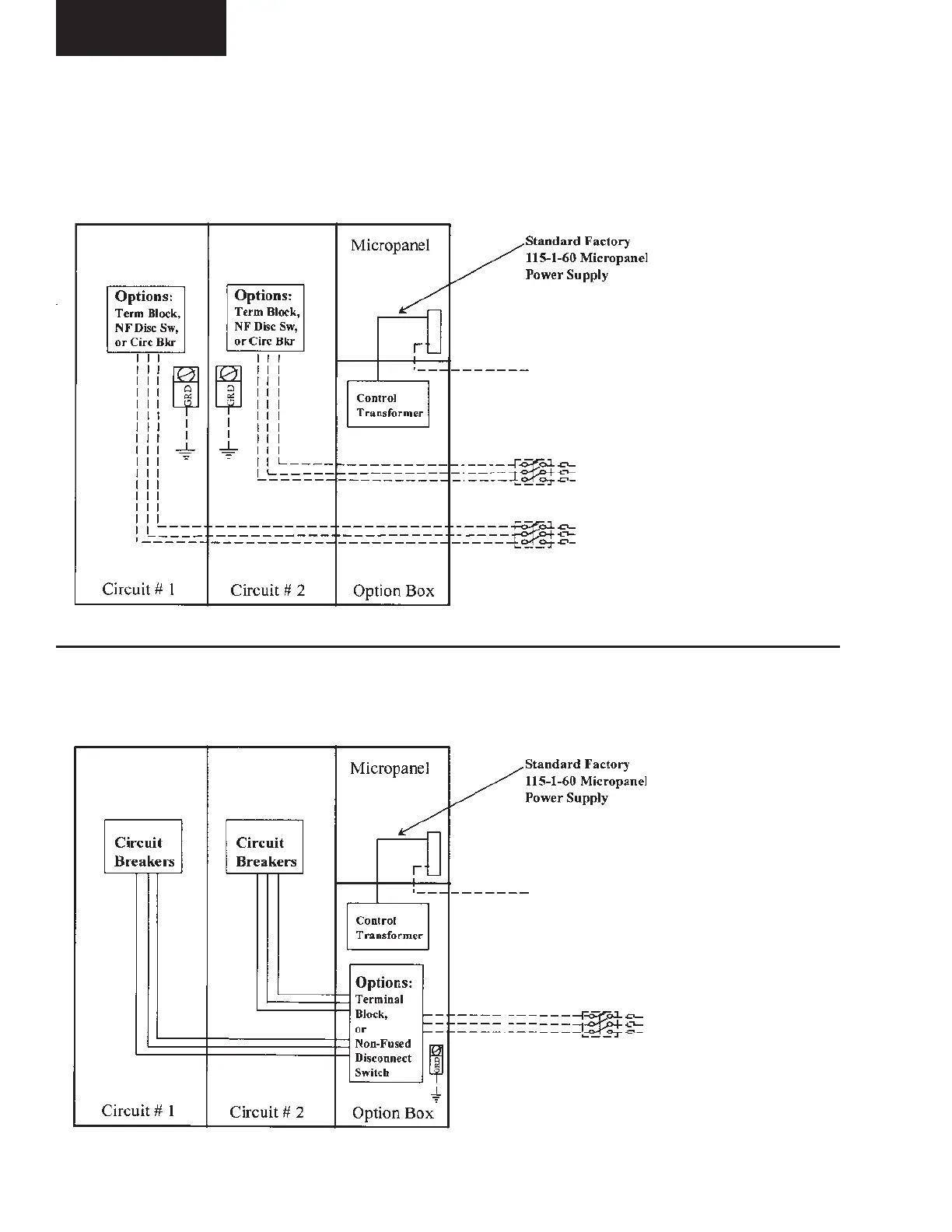

FIG. 14 – MULTIPLE POINT POWER SUPPLY CONNECTION
LD04921
FIG. 15 – OPTIONAL SIGNLE-POINT POWER SUPPLY
WITH INTERNAL CIRCUIT BREAKERS
LD04922
Optional Field Provided
115-1-60 Micro panel Supply
One field provided power sup-
ply circuit to the unit with circuit
protection. Field connections to
factory-provided Non-Fused
Disconnect Switch (Opt), or Ter-
minal Block (Opt) in the Options
Panel. Factory connections to
Circuit Breakers in each of the
two Power Panels.
