Zanotti un0 080 - J9 CPU Board Output Port

1
38
Electronics and wiring
5.2 Electronic Boards

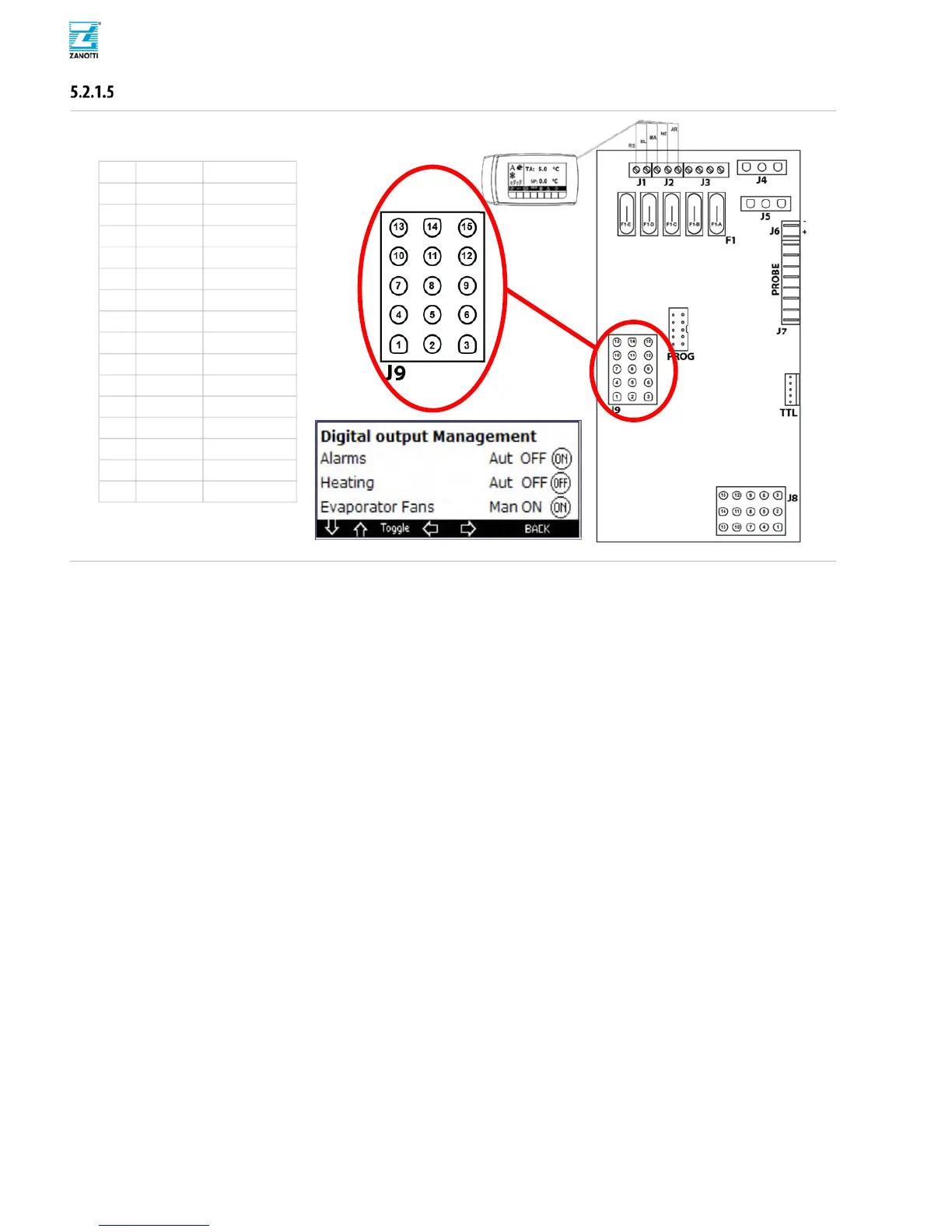

J9 CPU board Output port
Pin Wire To
1 - -
2 51 HI
3 - -
4 31 J 19 − 10
th
5 30 J 19 − 5
th
6 32 J 19 − 4
th
7 33 FGS
8 - -
9 - -
10 36 J 19 − 8
th
11 - -
12 50 J 19 − 7
th
13 28 J 19 – 3
rd
14 9 ALT
15 99 J 19 – 1
st
