5.2 Electronic Boards
Electronics and wiring

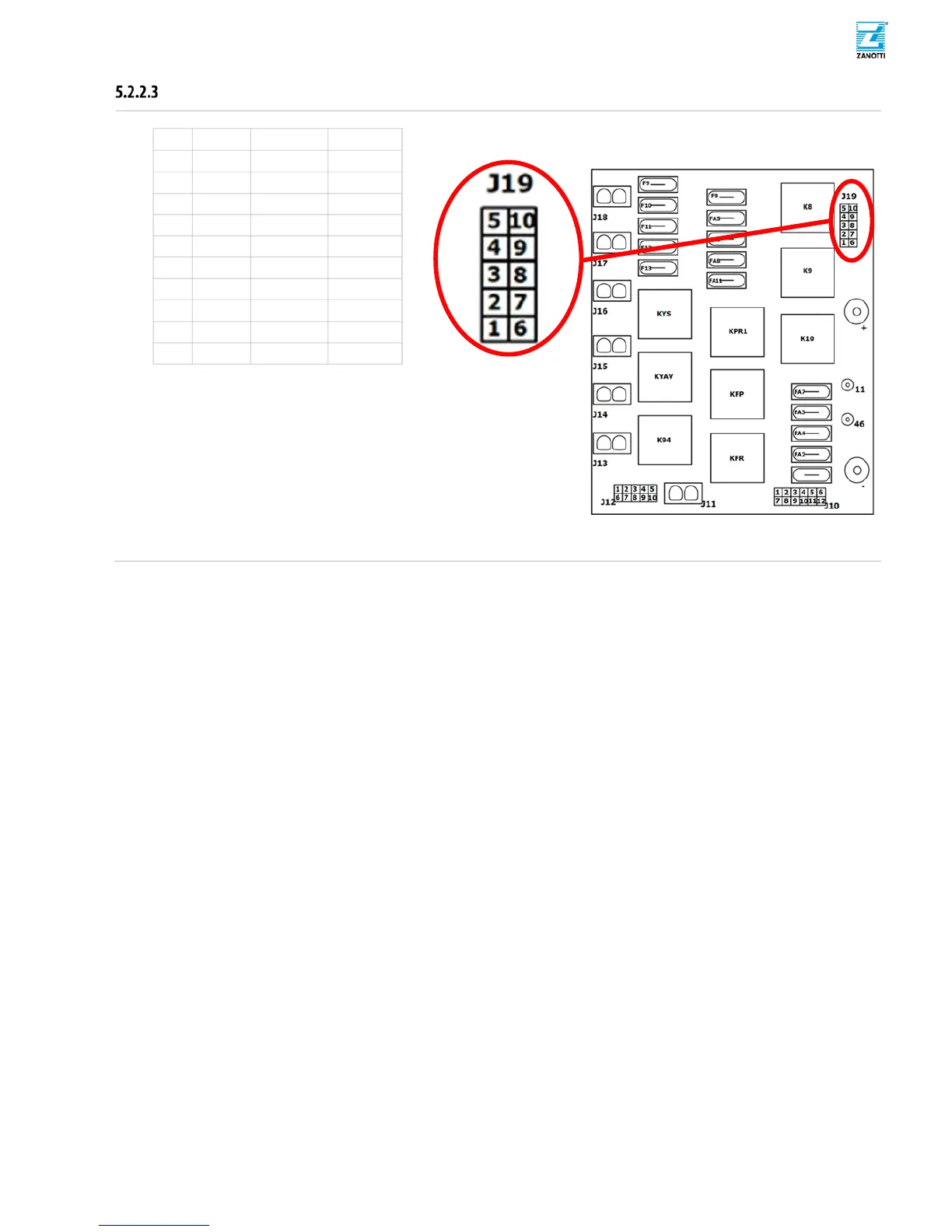

J19 Pwr Board Input Port
Pin Wire From To
1 99 J9-15
th
KFR
2 - -
3 28 J9-12
th
KPR1
4 32 J9-6
th
KYAV
5 30 J9-5
th
K8-9-10
6 NE196 J6-(-) (-)
7 50 J9-11
th
KFP
8 36 J9-10
th
K94
9 27 (+) HI
10 31 J9-4
th
KYS
