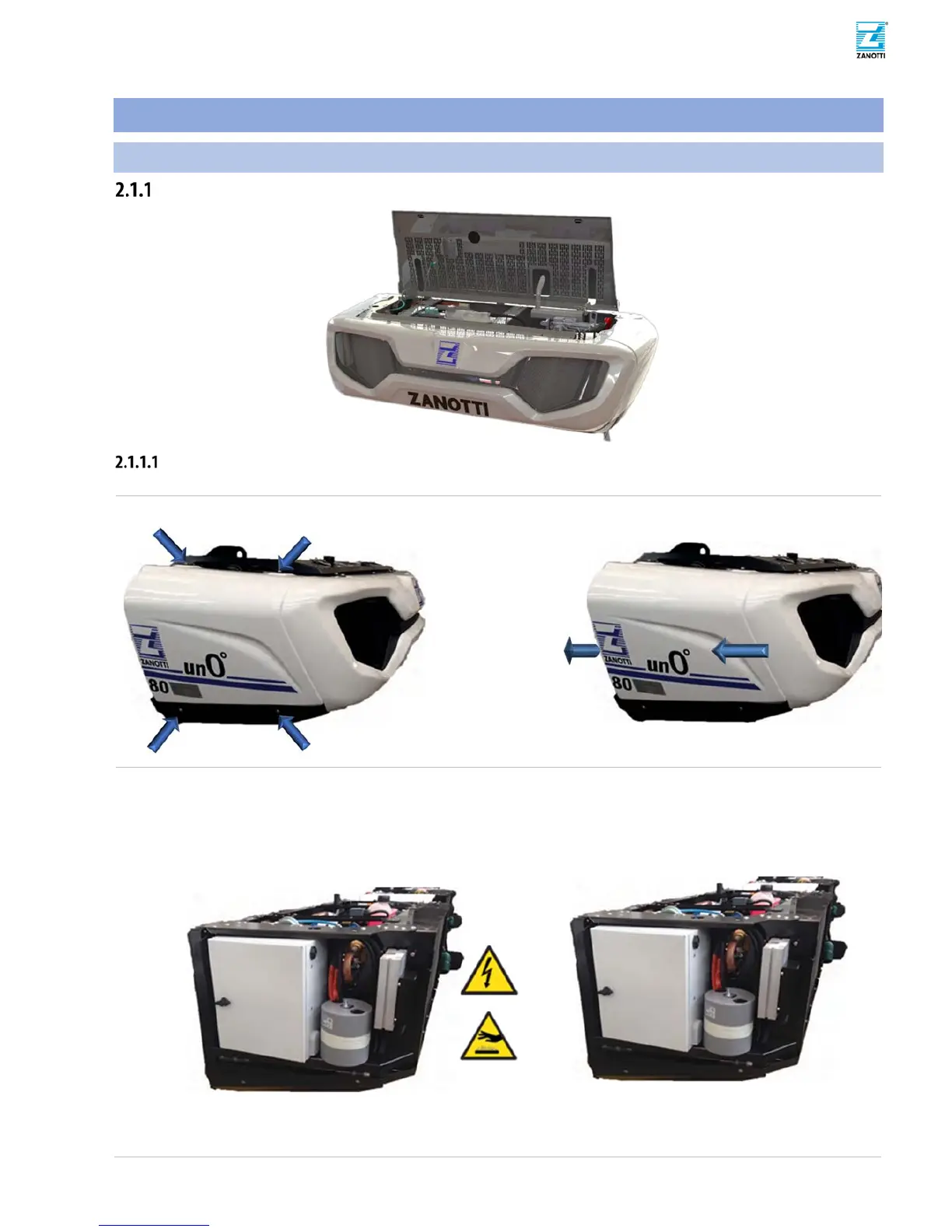

2.1 Condensing unit
Description of the unit
2 Description of the unit
2.1 Condensing unit
Nose mount
Right side and electric box access
Right side cover gives access to Electrical Box, Service Ports, Filter Drier, Scroll Compressor, Transformer.
(c) Unscrew right side cover. (d) Slide and pull back removing left side cover.
(e) Main accessible parts:
1) Electrical Box 5.2 Se
ct
ion
2) ON/OFF Button 5.3.7 Se
ct
ion
3) TAL Transform
er 5.7.1 Sect
ion
4) Rectifi
er 5.7.2 Sect
ion
(f) Unscrew electrical box support screws.
(g) Pull rotating down electrical box support, until
secu
rity cable
stops it.
