29
2.1 Condensing unit

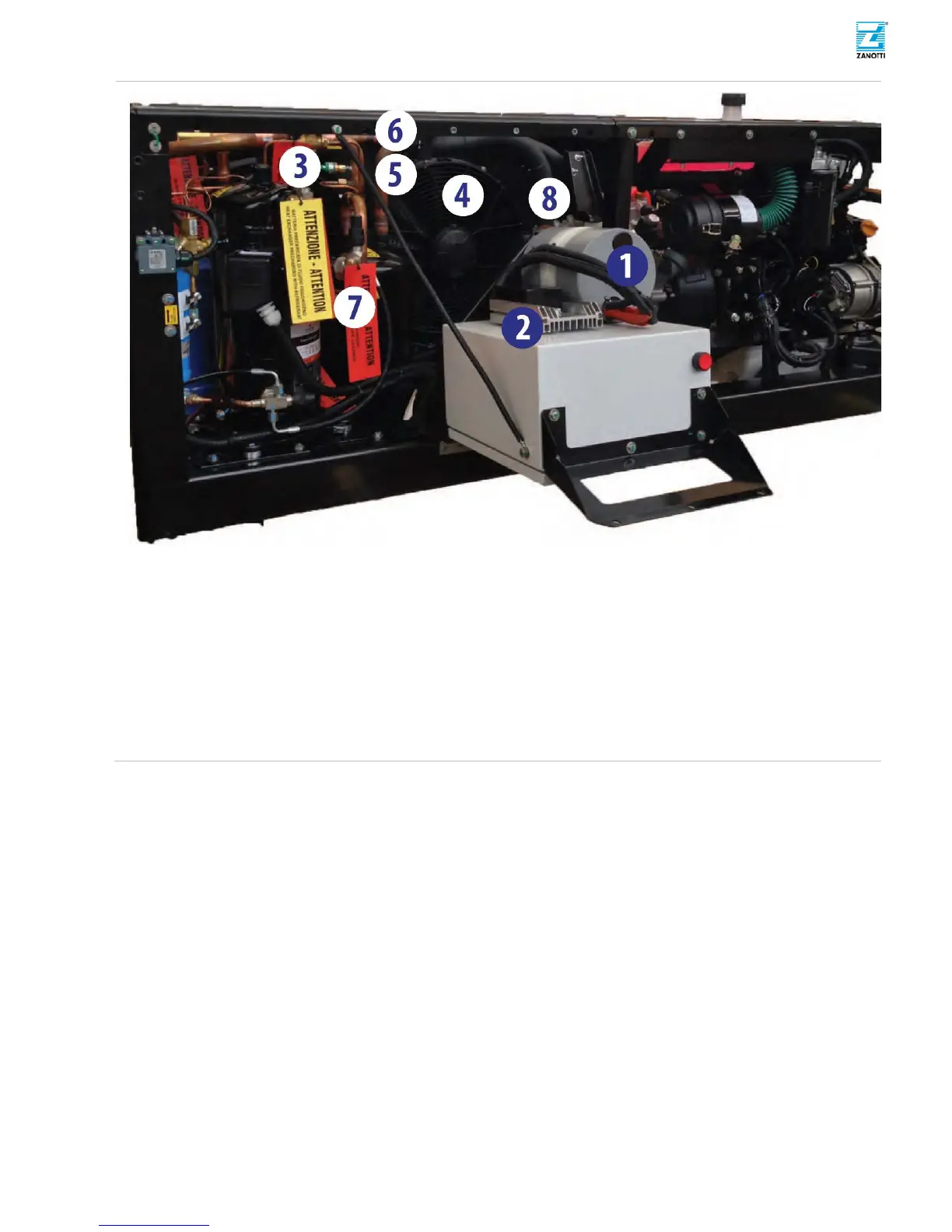

Description of the unit
Main accessible parts:
1. TAL Transformer 5.7.1 Section
2. Rectifier 5.7.2 Section
3. PMI Low Pressure Switch 5.3.3.1 Section
4. Condenser Motorfans 5.6.3.1 Section
5. KVC Hot Gas Bypass Capacity Regulator 3.7 Section
6. CPR Crankcase Pressure Regulation Valve 3.6 Section
7. Liquid Receiver/Separator
8. Shoot Off Valves of Compressors 3.3.1
