33

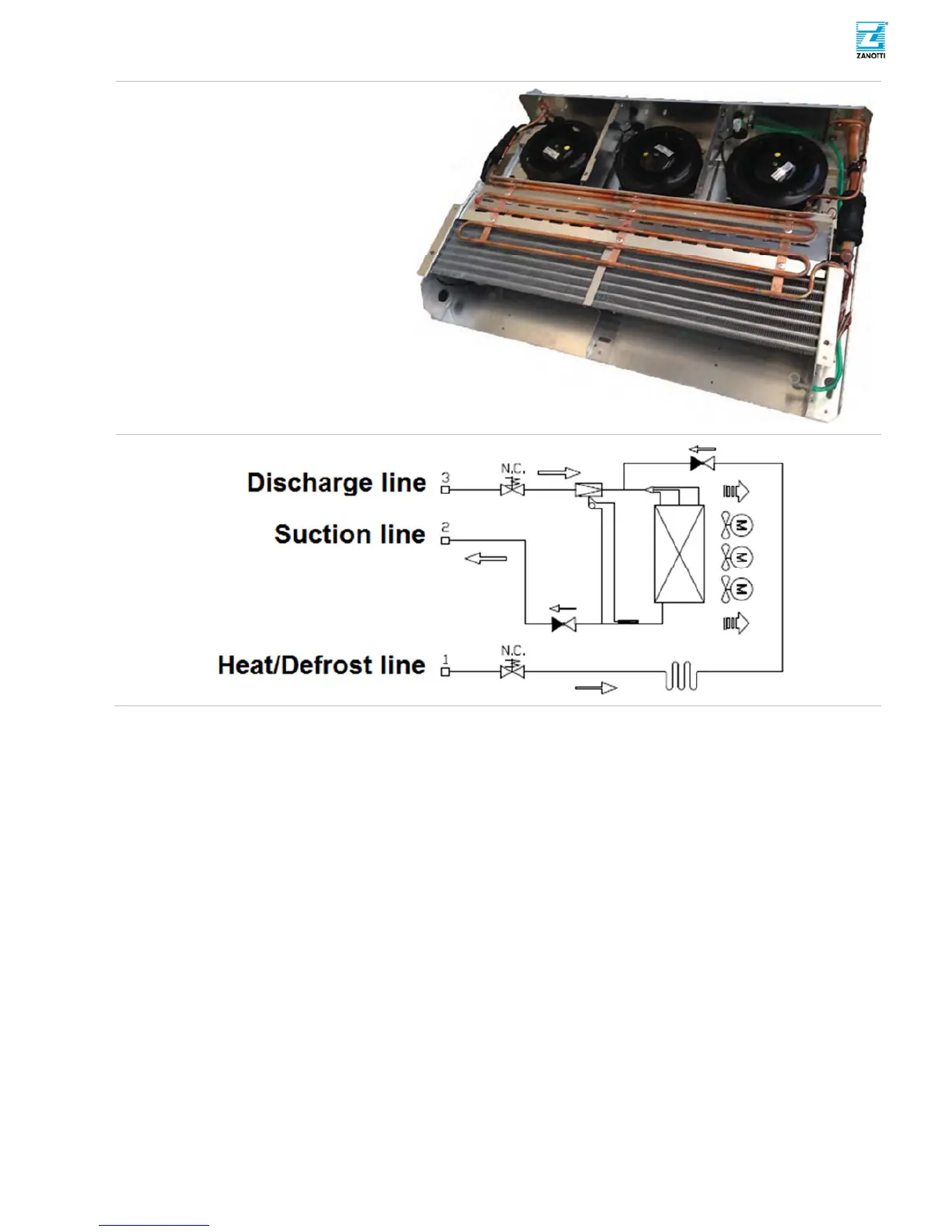

2.2 Evaporating section
Description of the unit
Main accessible parts:
1. Evaporator
Heat Exchanger
2. Flat Evp.
Motorfans 5.6.3.2.1
Section
3. Orifice and Expansion Valve 3.5 Se
ct
ion
4. Solenoid Valv
es 3.3.3 Sect
ion
5. Non
return Check Valves 3.3.4 Sect
ion
6. SA Diff
erential Air Switch eq
ualization
lines
7. FTS1-2 Defrost End Temperature
Switches 5.3.5 Section
8. Drain pan
