3.3 Valves

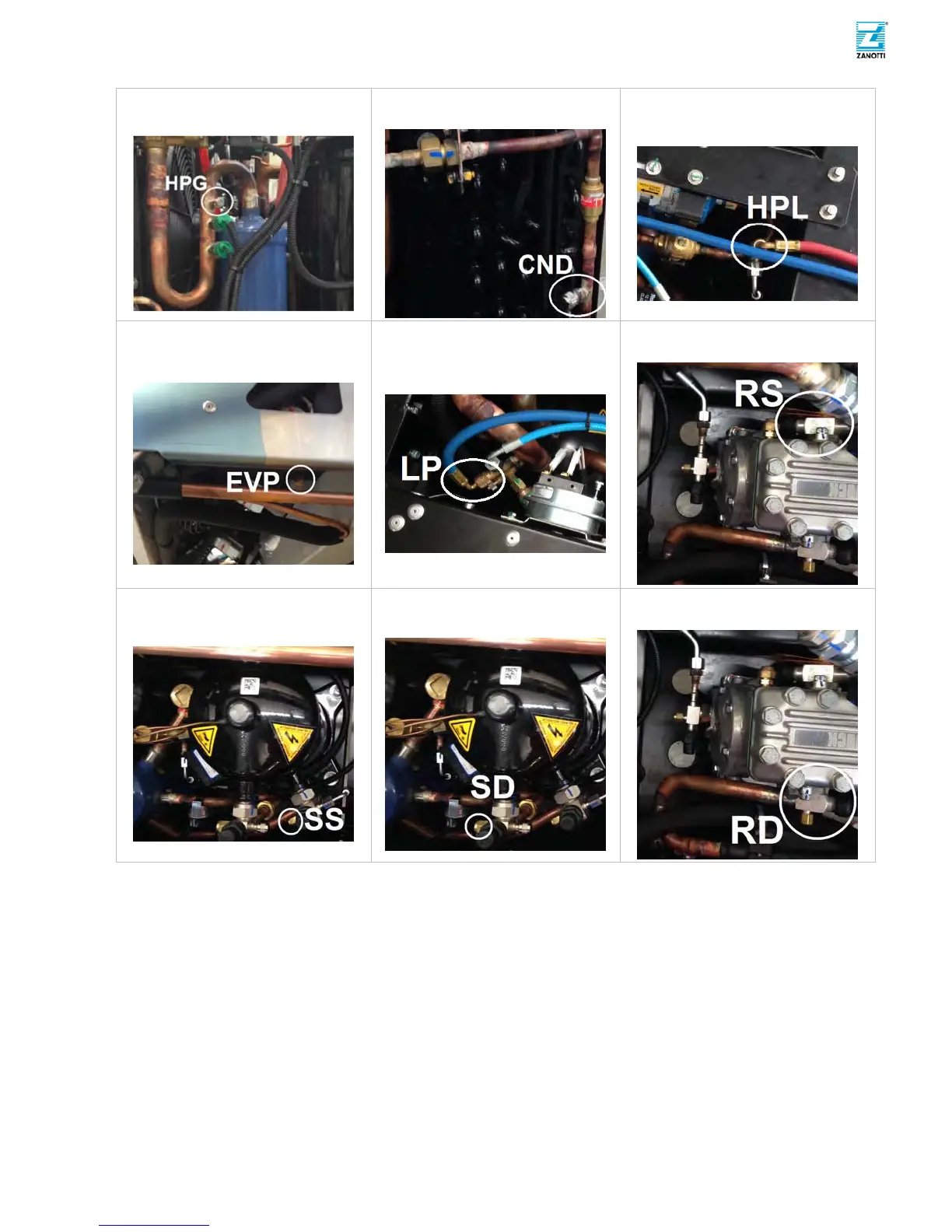

Cooling Circuit
HPG High Pressure
Gas Service Port
CND Condenser
Service Port
HPL High Pressure Liquid
Service Port
EVP Evaporator
Service Port
LP Low Pressure
Service Port
RS Road Compressor
Suction Service Port
SS Scroll Compressor
Suction Service Port
SD Scroll Compressor
Discharge Service Port
RD Road Compressor
Discharge Service Port
