7 - 2 DS3408 Product Reference Guide
Connecting an RS-232 Interface
Connect the digital scanner directly to the host computer.

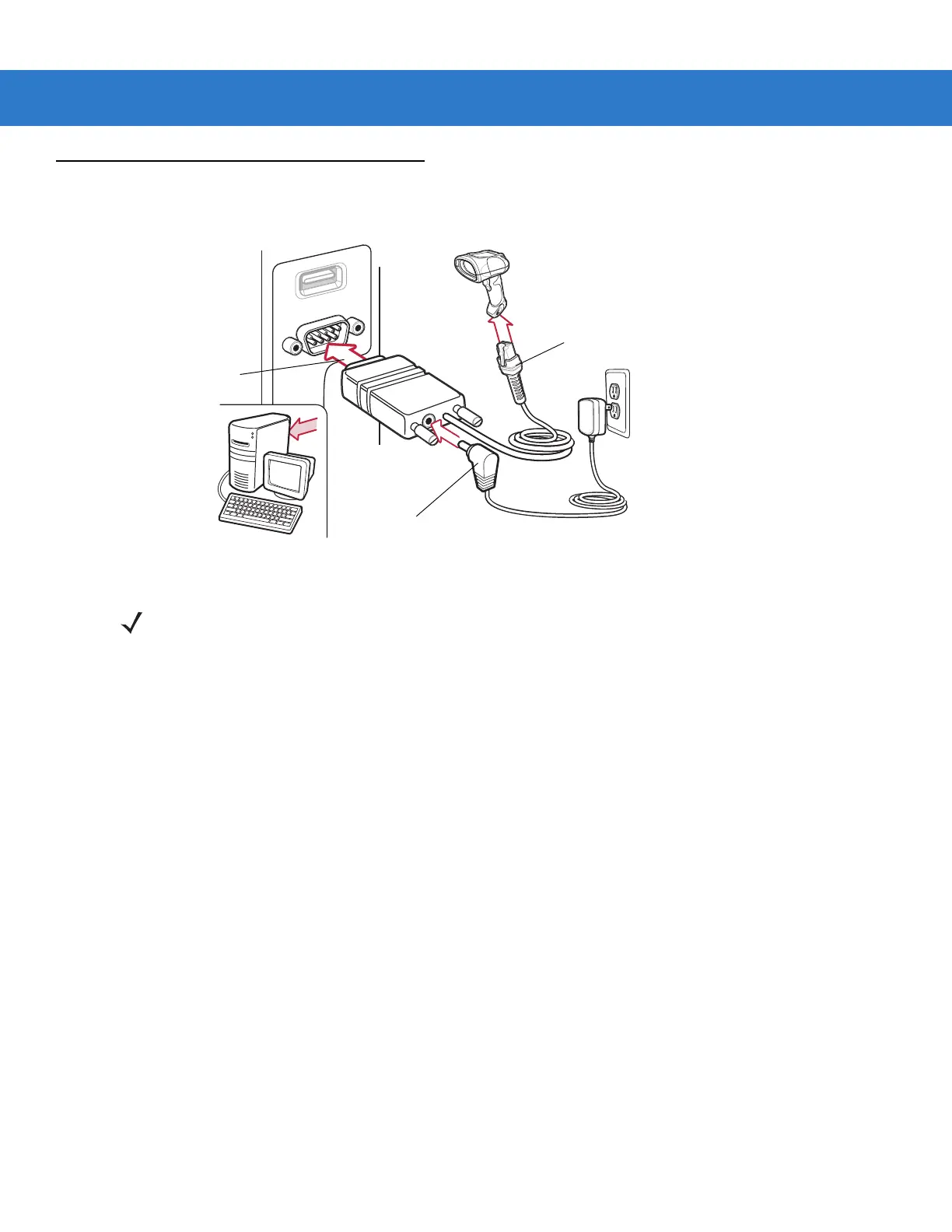

Figure 7-1
RS-232 Direct Connection
1. Attach the modular connector of the RS-232 interface cable to the cable interface port on the digital scanner
(see Installing the Interface Cable on page 1-2).
2. Connect the other end of the RS-232 interface cable to the serial port on the host.
3. Connect the power supply to the serial connector end of the RS-232 interface cable. Plug the power supply
into an appropriate outlet.
4. Select the RS-232 host type by scanning the appropriate bar code from page 7-6.
5. To modify any other parameter options, scan the appropriate bar codes in this chapter.
Interface Cable
Serial Port
Connector to Host
Power Supply Cable
NOTE Interface cables vary depending on configuration. The connectors illustrated in Figure 7-1 are examples
only. The connectors may be different than those illustrated, but the steps to connect the scanner are the
same.
