Zebra MC67 User Manual

Bluetooth 7 - 19

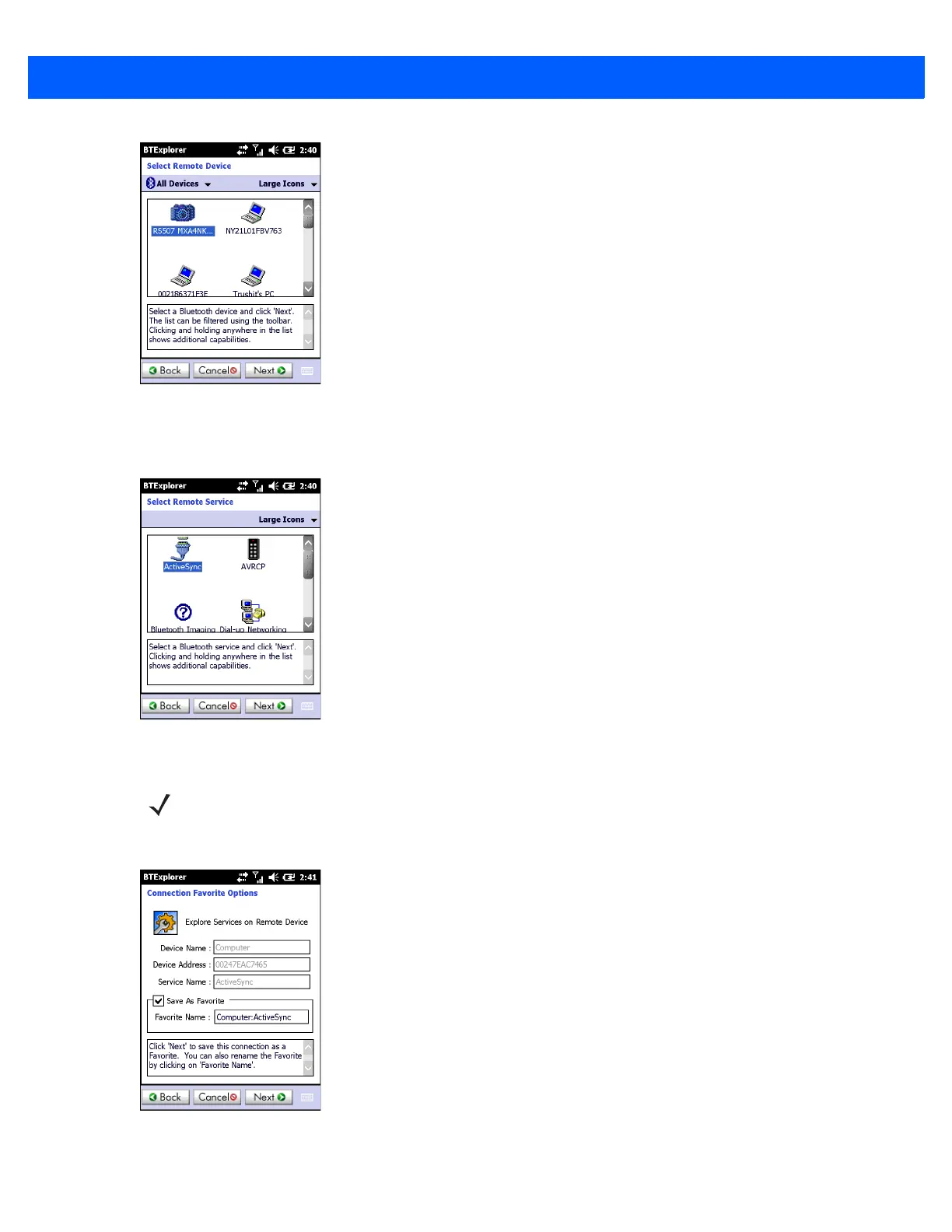

Figure 7-14 Select Remote Device Window
9. Select a device from the list and tap Next. The MC67 searches for services on the selected Bluetooth
device.
Figure 7-15 Device Services
10. Select a service from the list and press Next. The Connection Favorite Options window appears.
Figure 7-16 Connection Favorite Options Window
11. In the Favorite Name text box, enter a name for this service that will appear in the Favorite window.
NOTE If the MC67 discovers a service but the service is not supported, the service icon is grayed-out.

Zebra MC67 Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	-
Flash memory	2 GB
Internal memory	0.512 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	Instruments OMAP
Processor frequency	0.8 GHz
Processor manufacturer	Texas Instruments
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3600 mAh
Data network	4G, HSPA+
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Keyboard layout	QWERTY
Operating system installed	Windows Mobile 6.5

Weight and Dimensions

Depth	33.5 mm
Width	77 mm
Height	162.2 mm
Weight	385 g
