9 - 10 MC67 User Guide

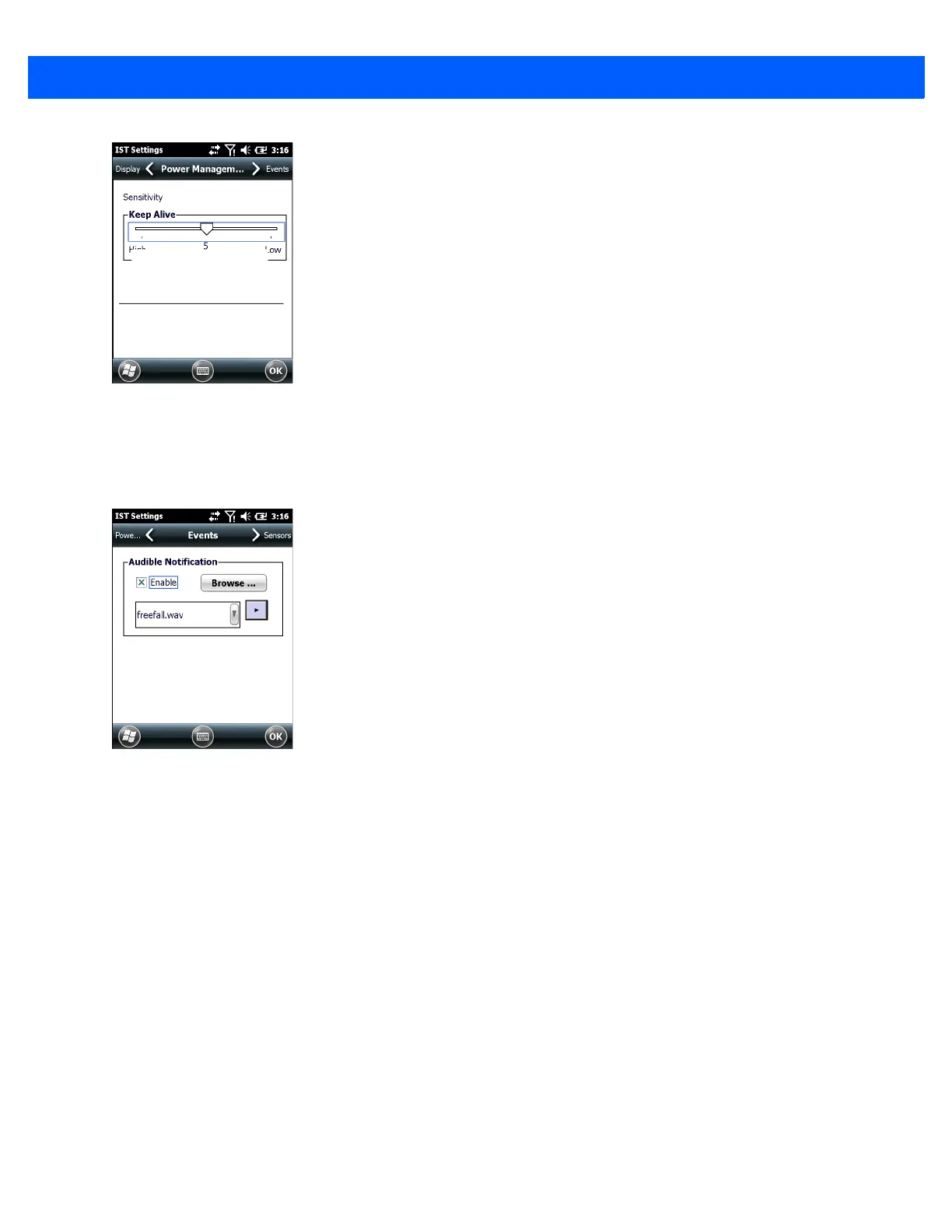

Figure 9-7 Set IST Sensitivity Window
Events Tab
Use the Event tab to enable or disable free fall sound and facilitates to set the free fall sound file as desired.
Figure 9-8 Event Window
Use the Audible Notification panel to enable playing of a wave file when the MC67 is dropped. Select a
desired .wav file from the Sounds: drop-down list.
Sensors Tab
The Sensor tab displays all the sensors available in the MC67:
• Orientation - displays the orientation of the MC67 in pictorial and graphical views.
• Motion - detects High G or Free Fall of the device. Value 0 is no motion detected. When a Free Fall is
detected sensor Visualize window will play a wave with highest amplitude.
• Acceleration - displays device acceleration along the X, Y and Z axis.
• Tilt Angle - Provide angular rotation with respect to the horizontal plane.
• ALS - Provides light intensity variation with time.
• eCompass - displays the device’s rotation with respect to the earth’s magnetic north.
Tap a sensor icon to display the sensor information screen. Sensor data can be viewed in Graphical or Visual
mode. Sensor Calibration is provided in Settings button if supported.

Zebra MC67 Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	-
Flash memory	2 GB
Internal memory	0.512 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	Instruments OMAP
Processor frequency	0.8 GHz
Processor manufacturer	Texas Instruments
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3600 mAh
Data network	4G, HSPA+
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Keyboard layout	QWERTY
Operating system installed	Windows Mobile 6.5

Weight and Dimensions

Depth	33.5 mm
Width	77 mm
Height	162.2 mm
Weight	385 g
