Zebra MC67 User Manual

Accessories 10 - 5
Single-slot Ethernet/Modem/USB Cradle
The CRD5500-1000XR cradle provides connection to a host computer using USB, a dial-up network using the
modem or an Ethernet network.
Refer to the MC67 Integrator Guide for information on setting up the cradle.
Country Settings
The modem defaults to operation with US telephone networks. To operate the modem with other country
telephone networks, it must be configured using an application on the MC67. Download the Cradle Modem
Country Configurator Application Software for MC55xx package from the Zebra Support Central web site:
http://www.zebra.com/support.
Following the instructions with the software package to install the application on the MC67.
The application includes country selections for all supported countries and automatically programs the modem
and adjust its operating parameters to comply with the telephone network in the selected country.
Connection Setup

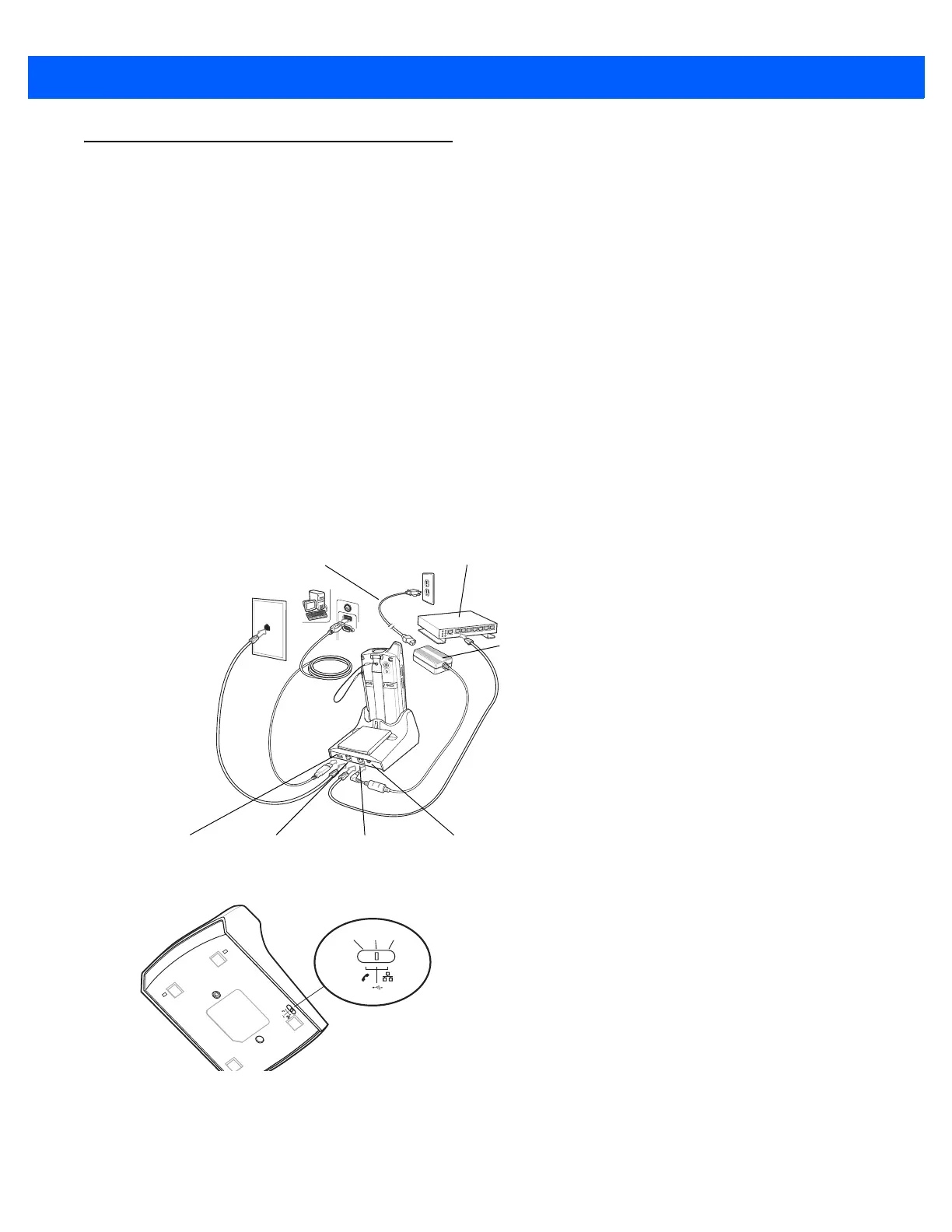

Figure 10-3 Connection Setup
Figure 10-4 Connection Switch
Power
Supply
Ethernet Port Power Port
AC Line Cord
USB Port Phone Port
Ethernet Hub
Modem USB Ethernet

Zebra MC67 Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	-
Flash memory	2 GB
Internal memory	0.512 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	Instruments OMAP
Processor frequency	0.8 GHz
Processor manufacturer	Texas Instruments
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3600 mAh
Data network	4G, HSPA+
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Keyboard layout	QWERTY
Operating system installed	Windows Mobile 6.5

Weight and Dimensions

Depth	33.5 mm
Width	77 mm
Height	162.2 mm
Weight	385 g
