10 - 8 MC67 User Guide
Four Slot Ethernet Cradle
This section describes how to use a Four Slot Ethernet cradle with the MC67. For cradle communication setup
procedures refer to the MC67 Integrator Guide.
The Four Slot Ethernet cradle:
•
Provides 5.4 VDC power for operating the MC67.
•
Connects the MC67 (up to four) to an Ethernet network.
•
Simultaneously charges up to four MC67 devices.
Charging
Insert the MC67 into a slot to begin charging.

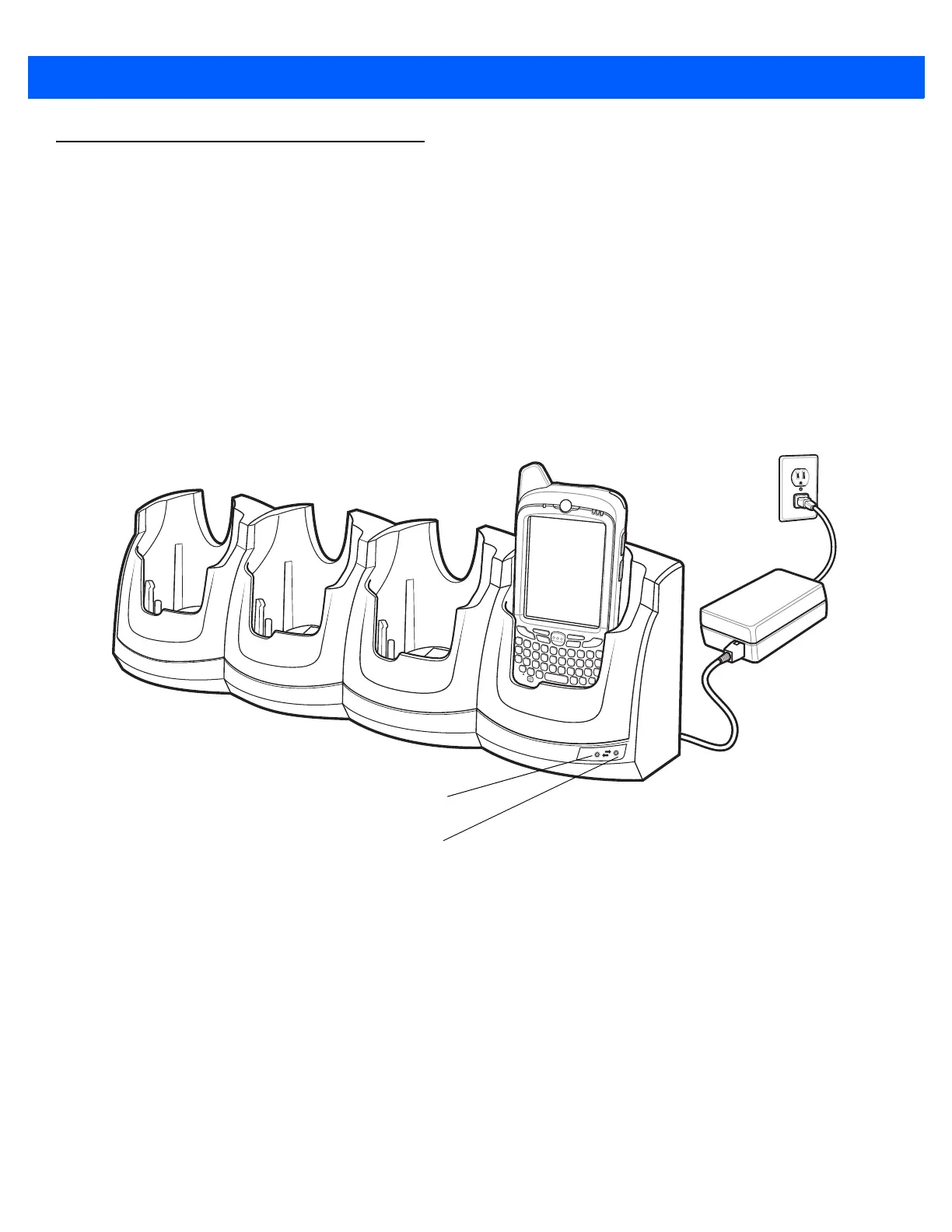

Figure 10-7
MC67 Battery Charging
The MC67’s charge LED shows the status of the battery charging in the MC67. See Table 1-1 on page 1-6 for
charging status indications. The 3600 mAh battery fully charges in less than six hours.
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC67.
To accomplish this, for small periods of time, the MC67 alternately enables and disables battery charging to
keep the battery at acceptable temperatures. The MC67 indicates when charging is disabled due to abnormal
temperatures via its LED. See Table 1-1 on page 1-6.
Yellow Link LED (CRD5500-4000ER)
Green Right LED (CRD5501-4000ER)
Green Speed LED (CRD5500-4000ER)
Green Left LED (CRD5501-4000ER)
