Charging the Spare Battery

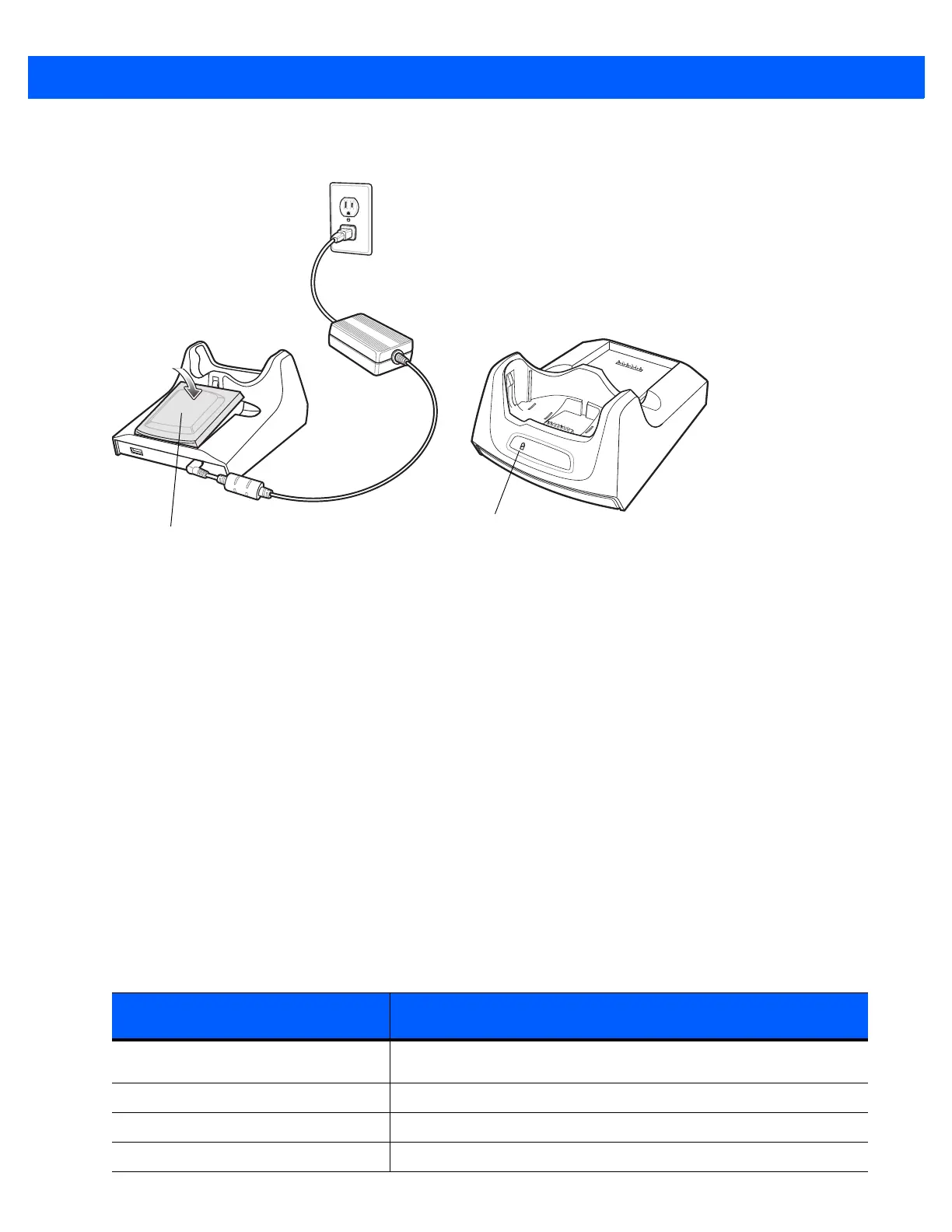

Figure 10-2 Spare Battery Charging
Battery Charging Indicators
The Single Slot USB Cradle charges the MC67’s main battery and a spare battery simultaneously.
The MC67’s charge LED indicates the status of the battery charging in the MC67. See Table 1-1 on page 1-6
for charging status indications.
The spare battery charging LED on the cradle indicates the status of the spare battery charging in the cradle.
See Table 10-2 for charging status indications.
The 3600 mAh battery fully charges in less than six hours.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC67.
To accomplish this, for small periods of time, the MC67 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The MC67 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-1 on page 1-6 and Table 10-2.
Spare Battery
Spare Battery
Charging LED
Table 10-2 Spare Battery LED Charging Indicators
Spare Battery LED
(on cradle)
Indication
Off Battery is not charging; battery is not inserted correctly in the cradle; cradle
is not powered
Slow Blinking Amber Spare battery is charging.
Solid Amber Charging complete.
Fast Blinking Amber Charging error.

Zebra MC67 Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	-
Flash memory	2 GB
Internal memory	0.512 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	Instruments OMAP
Processor frequency	0.8 GHz
Processor manufacturer	Texas Instruments
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3600 mAh
Data network	4G, HSPA+
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Keyboard layout	QWERTY
Operating system installed	Windows Mobile 6.5

Weight and Dimensions

Depth	33.5 mm
Width	77 mm
Height	162.2 mm
Weight	385 g
