Zebra MC67 User Manual

Bluetooth 7 - 23
1. Ensure the Bluetooth Phone is discoverable and connectable.
2. Ensure that the Dial-Up Networking profile is enabled on the MC67. See Profiles on page 7-41 for more
information.
3. Tap Menu > New Connection.
4. Select Explore Services on Remote Device or another from the drop-down list and tap Next.
5. BTExplorer searches for Bluetooth devices in the area.
The discovered devices display in the Select Remote Device window.
6. Select the Bluetooth Phone from the list and tap Next. The MC67 searches for services on the Bluetooth
Phone.

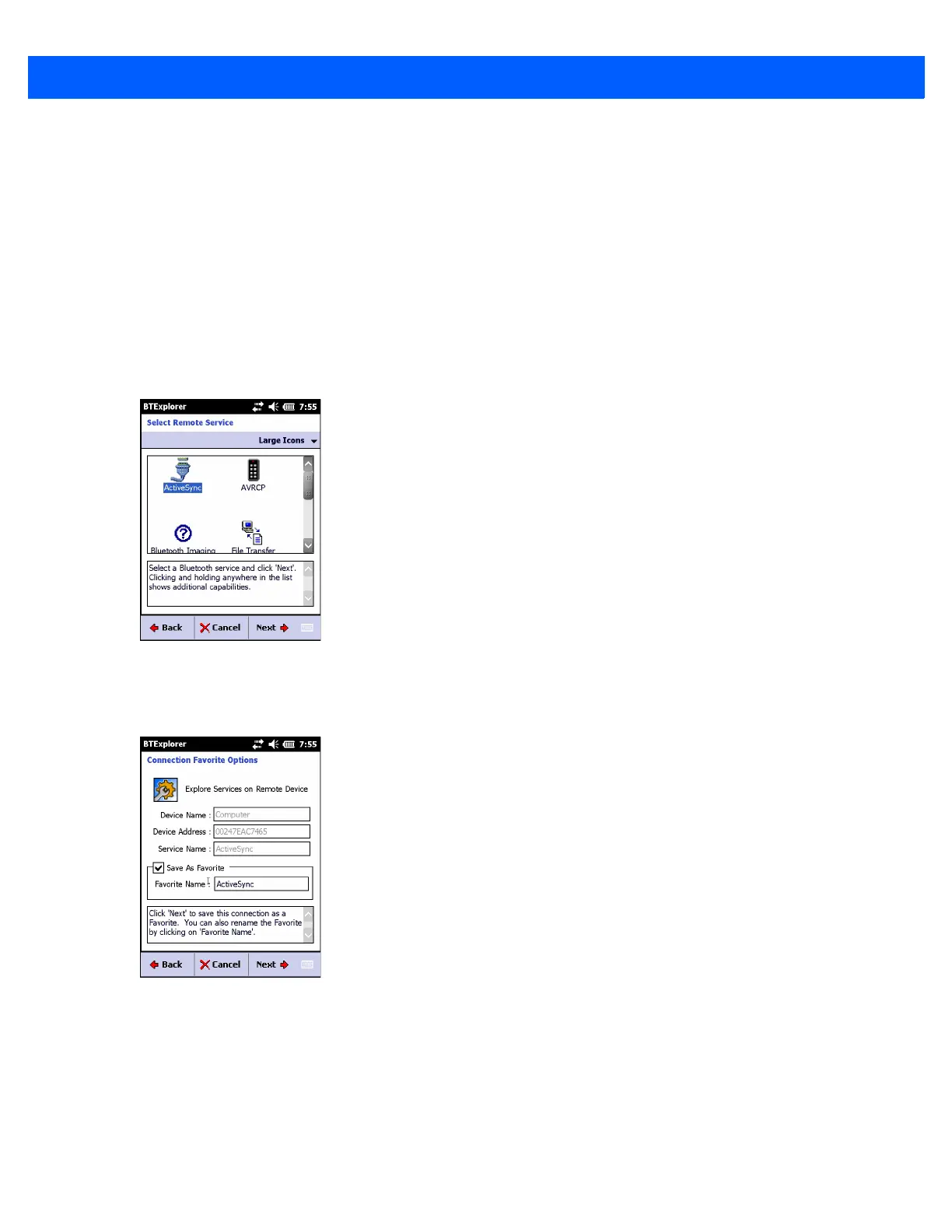

Figure 7-20 Select Remote Service Window
7. Select Dial-up Networking Gateway service from the list and tap Next. The Connection Favorite
Options window appears.
Figure 7-21 Connection Favorite Options Window
8. In the Favorite Name text box, enter a name for this service that will appear in the Favorite window.
9. Tap Next. The Connection Summary window appears.
10. Tap Connect. The Select Dial-up Networking Entry window appears.

Zebra MC67 Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	-
Flash memory	2 GB
Internal memory	0.512 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	Instruments OMAP
Processor frequency	0.8 GHz
Processor manufacturer	Texas Instruments
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3600 mAh
Data network	4G, HSPA+
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Keyboard layout	QWERTY
Operating system installed	Windows Mobile 6.5

Weight and Dimensions

Depth	33.5 mm
Width	77 mm
Height	162.2 mm
Weight	385 g
