Zebra MC67 User Manual

Using GPS Navigation 8 - 3

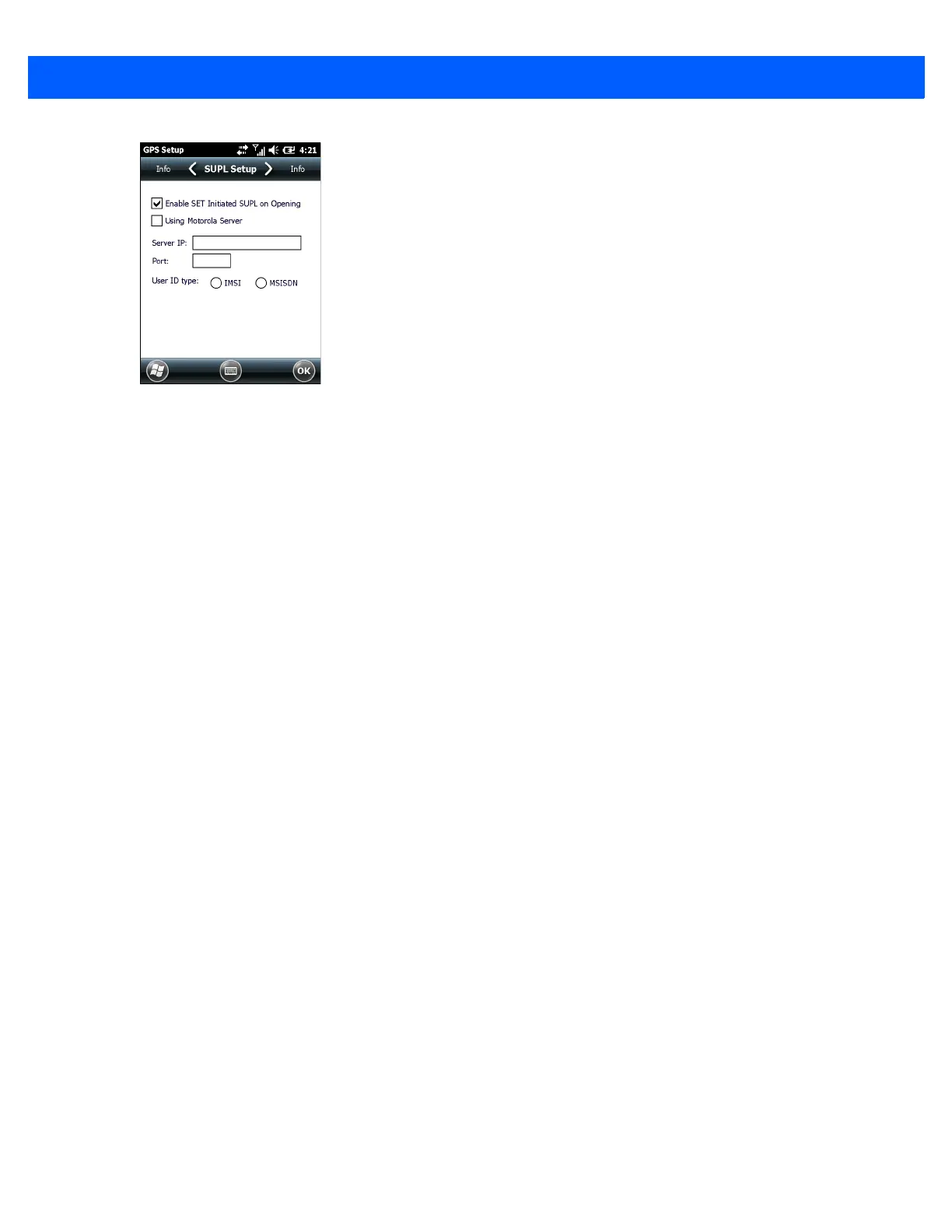

Figure 8-1 SUPL Setup Tab
2. Select Enable SET Initiated SUPL on Opening to enable the MC67 to initiate SUPL upon opening the
GPS port.
3. Select Using Motorola Server to use the Motorola SUPL server.
4. Enter the SUPL Server IP address in the Server IP field. The server IP address is not required when using
the Motorola server.
5. Enter the SUPL Server port number in the Port field. The port number is not required when using the
Motorola server.
6. User ID type is to choose which ID type to use during the SUPL session. This option is not available when
using the Motorola server.

Zebra MC67 Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	-
Flash memory	2 GB
Internal memory	0.512 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	Instruments OMAP
Processor frequency	0.8 GHz
Processor manufacturer	Texas Instruments
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3600 mAh
Data network	4G, HSPA+
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Keyboard layout	QWERTY
Operating system installed	Windows Mobile 6.5

Weight and Dimensions

Depth	33.5 mm
Width	77 mm
Height	162.2 mm
Weight	385 g
