Mounting a Mobile Device on the RFD8500
To mount a mobile device:
1. Remove the battery cover as shown in Figure 1-3 on page 1-4 .
2. Remove the plastic tip from the RFD8500 battery cover.

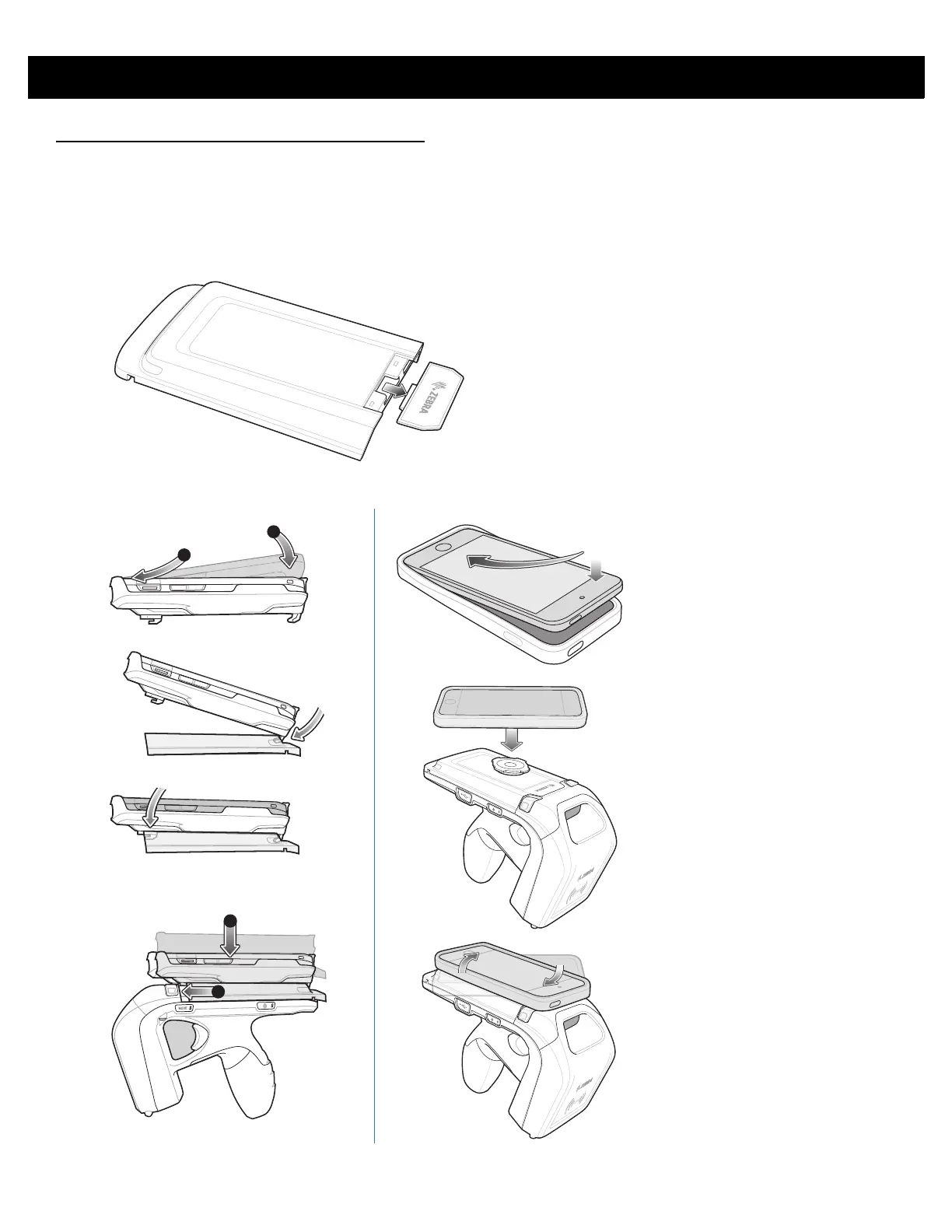

Figure 1-9 Removing Plastic Tip
3. Mount the mobile device into
its case.
(Cases vary depending on
the mobile device.)
4. Attach the mobile computer
case to the RFD8500 battery
cover.
5. Slide the battery cover onto
the RFD8500 until it locks in
place.
6. The battery cover latches
secure the mobile computer
to the RFD8500.
Figure 1-10 Mounting the Device
1
2
1
2
Android Device (TC55 Pictured)
iOS Device (iPod touch Pictured)

Zebra RFD8500 Specifications

General

Type	Handheld bar code reader
Sensor type	-
Scanner type	1D/2D
Read rate (max)	600 reads/s
Bluetooth version	2.1+EDR
Operating frequency	865 - 868 MHz
Standard interfaces	Bluetooth
Product color	Gray
LED indicators	Yes
Protection features	Dust resistant, Splash proof
Battery capacity	4410 mAh
Power source type	Battery
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 85 %
Mobile operating systems supported	Android 4.4, Android 5.0, Android 5.1, iOS 8.0, iOS 8.2, iOS 9.0
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	130 mm
Width	185 mm
Height	80 mm
Weight	430 g
