Zebra RFD8500 User Manual

4 - 12 RFD8500 User Guide
Singulation Control

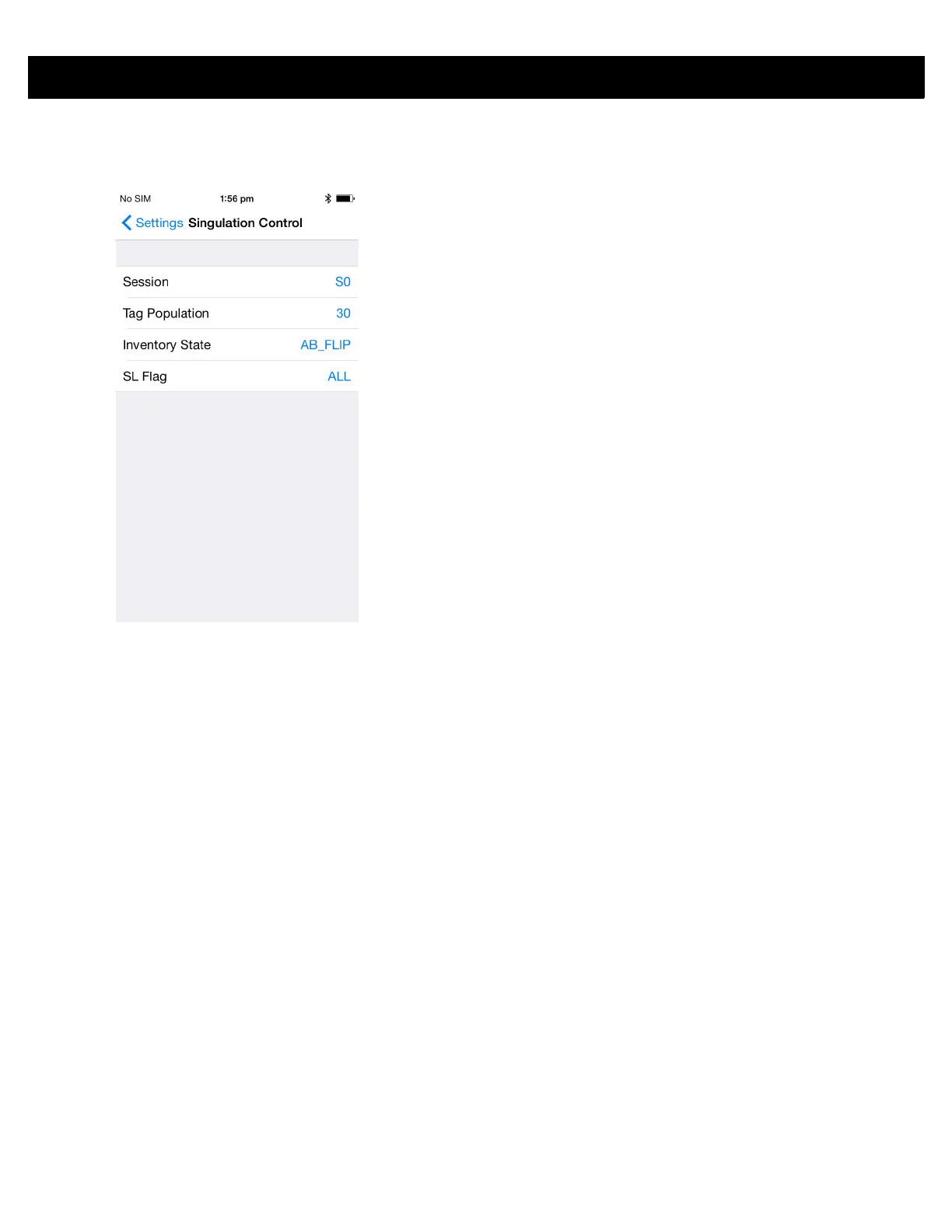

Figure 4-9 Settings - Singulation Control Screen
Use this screen to view/configure the singulation control settings for each antenna.
• Session options. The drop-down list includes the available options (S0, S1, S2, S3).
• Tag Population. A numeric value of the estimated number of tags in the Field of View (FOV). Values
shown are 30,100,200,300,400,500,600.
• Inventory State options. State A & State B, AB FLIP
• SL flag options: ALL, DEASSERTED, ASSERTED
All values can be selected from the drop-down lists.

Zebra RFD8500 Specifications

General

Type	Handheld bar code reader
Sensor type	-
Scanner type	1D/2D
Read rate (max)	600 reads/s
Bluetooth version	2.1+EDR
Operating frequency	865 - 868 MHz
Standard interfaces	Bluetooth
Product color	Gray
LED indicators	Yes
Protection features	Dust resistant, Splash proof
Battery capacity	4410 mAh
Power source type	Battery
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 85 %
Mobile operating systems supported	Android 4.4, Android 5.0, Android 5.1, iOS 8.0, iOS 8.2, iOS 9.0
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	130 mm
Width	185 mm
Height	80 mm
Weight	430 g
