Zebra TC52 Integrator Guide

Settings
143
Viewing Logs
To view logs:
1. Touch the Main Chat Head icon. The Overlay View screen appears.

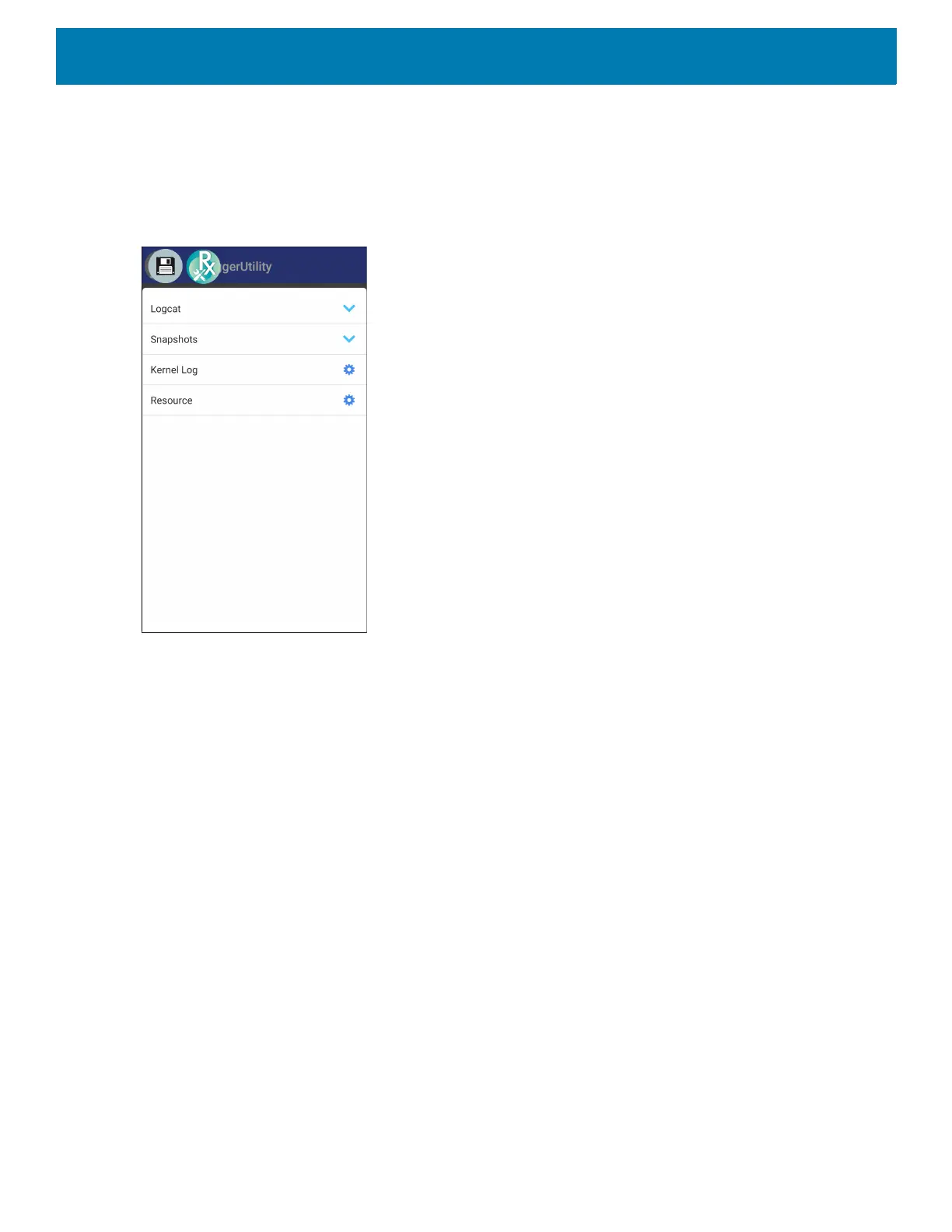

Figure 102 Overlay View Screen
2. Touch a log to open it. The user can open many logs with each displaying a new sub Chat Head.
3. If necessary, scroll left or right to view additional Sub Chat Head icons.

Zebra TC52 Specifications

General

RFID reader	-
Scanner type	2D
Product color	Black
Phone function	Yes
Display diagonal	5 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
USB 2.0 ports quantity	1
Flash memory	32 GB
Internal memory	4 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	4150 mAh
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
GPS (satellite)	No
Operating system installed	Android
Bluetooth version	5.0
Rear camera aperture number	2.2
Front camera aperture number	2
Rear camera resolution (numeric)	13 MP
Front camera resolution (numeric)	5 MP

Weight and Dimensions

Depth	18.6 mm
Width	75.5 mm
Height	155 mm
Weight	249 g
