Zebra TC52 Integrator Guide

DataWedge
66

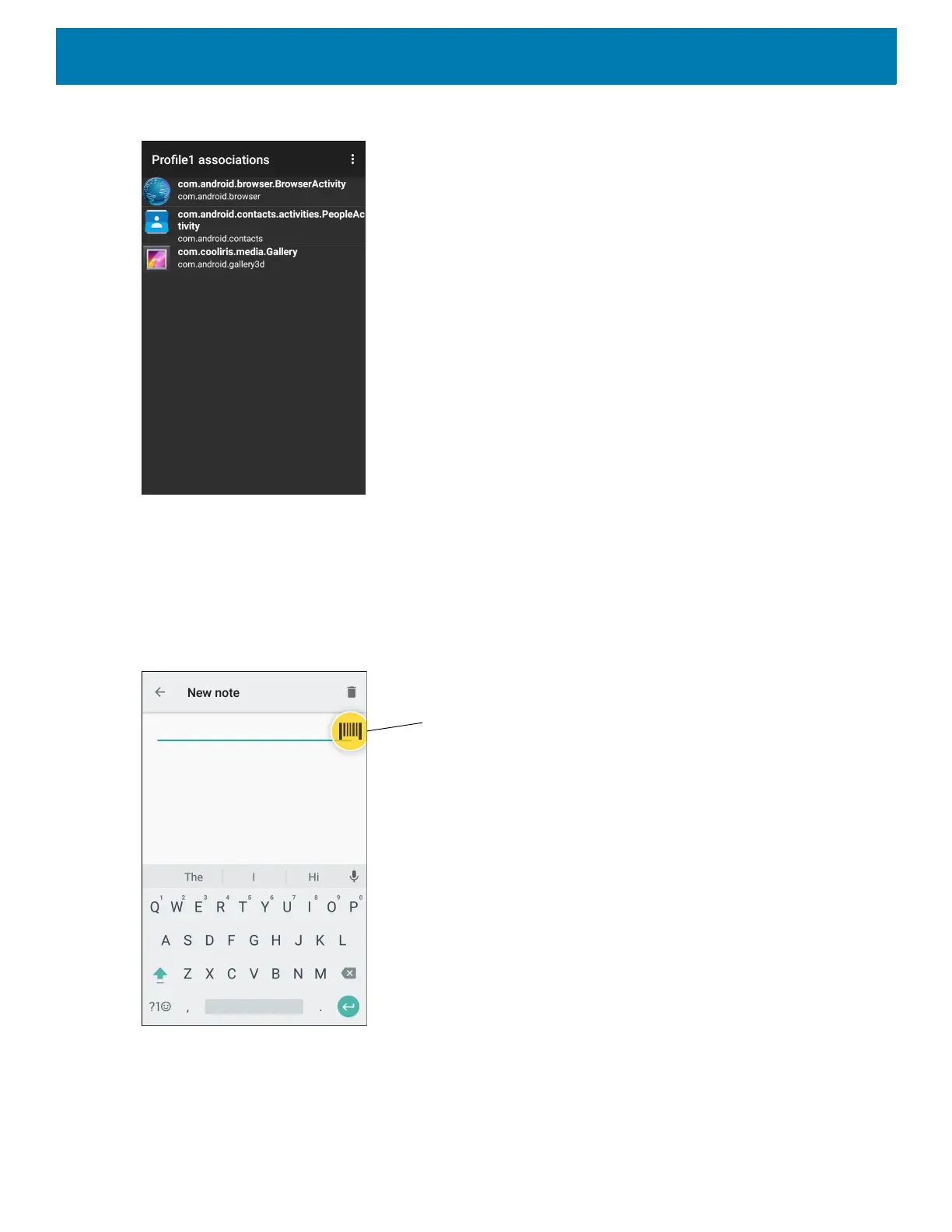

Figure 66 Selected Application/Activity
Data Capture Plus
Data Capture Plus (DCP) is a DataWedge feature that enables the user to initiate data capture by touching a
designated part of the screen. A variable screen overlay acts like a scan button.
Figure 67 Minimized Data Capture Panel
The DataWedge profile configuration screen allows the user to configure how the DCP appears on the screen
once the particular profile is enabled. The DCP is hidden by default. Enabling DCP option displays seven
additional configuration parameters.
DCP Button

Zebra TC52 Specifications

General

RFID reader	-
Scanner type	2D
Product color	Black
Phone function	Yes
Display diagonal	5 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
USB 2.0 ports quantity	1
Flash memory	32 GB
Internal memory	4 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	4150 mAh
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
GPS (satellite)	No
Operating system installed	Android
Bluetooth version	5.0
Rear camera aperture number	2.2
Front camera aperture number	2
Rear camera resolution (numeric)	13 MP
Front camera resolution (numeric)	5 MP

Weight and Dimensions

Depth	18.6 mm
Width	75.5 mm
Height	155 mm
Weight	249 g
