10.Connect cables to cradle.

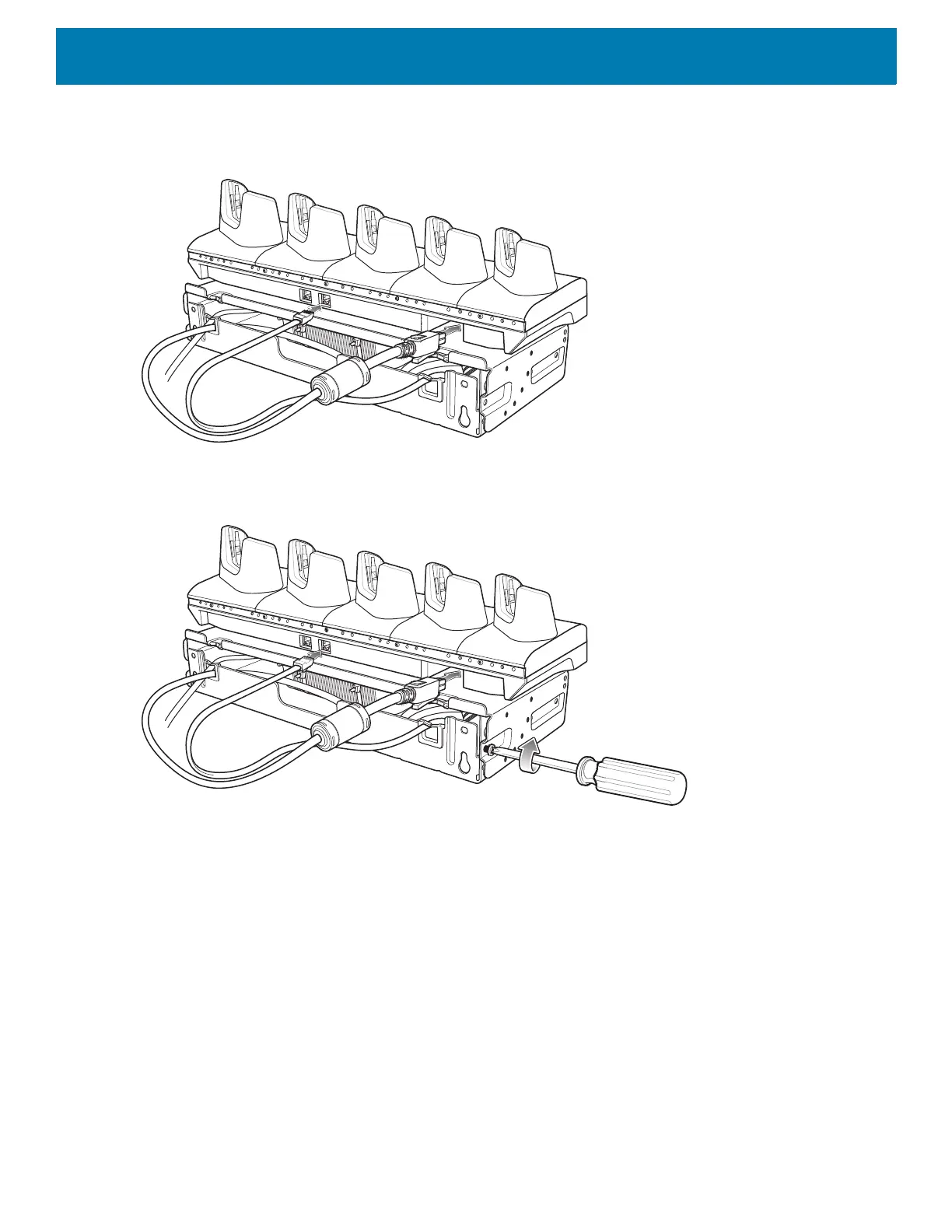

Figure 43 Connect Cables
11.Secure top tray to bottom tray with 4 M5 screws (two on each side).
Figure 44 Secure Top and Bottom Tray
See Rack Mount Installation on page 54 for installing the bracket assembly onto a rack.
4-Slot Battery Chargers Rack Installation
Use the Rack/Wall Mount Bracket to mount four 4-Slot Battery Chargers on a rack. When installing on a rack,
first assemble the bracket and chargers and then install the assembly on the rack.
1. Place one power supply horizontally in bottom tray.
2. Place one power supply vertically in bottom tray.
3. Connect AC line cords to power supplies.
4. Connect DC line cords to power supplies.
5. Secure power supplies and cables to bottom tray with tie wraps.
6. Route cables through cable slots.
