Zebra TC52 Integrator Guide

Technical Specifications
185
I/O Connector Pin-Outs

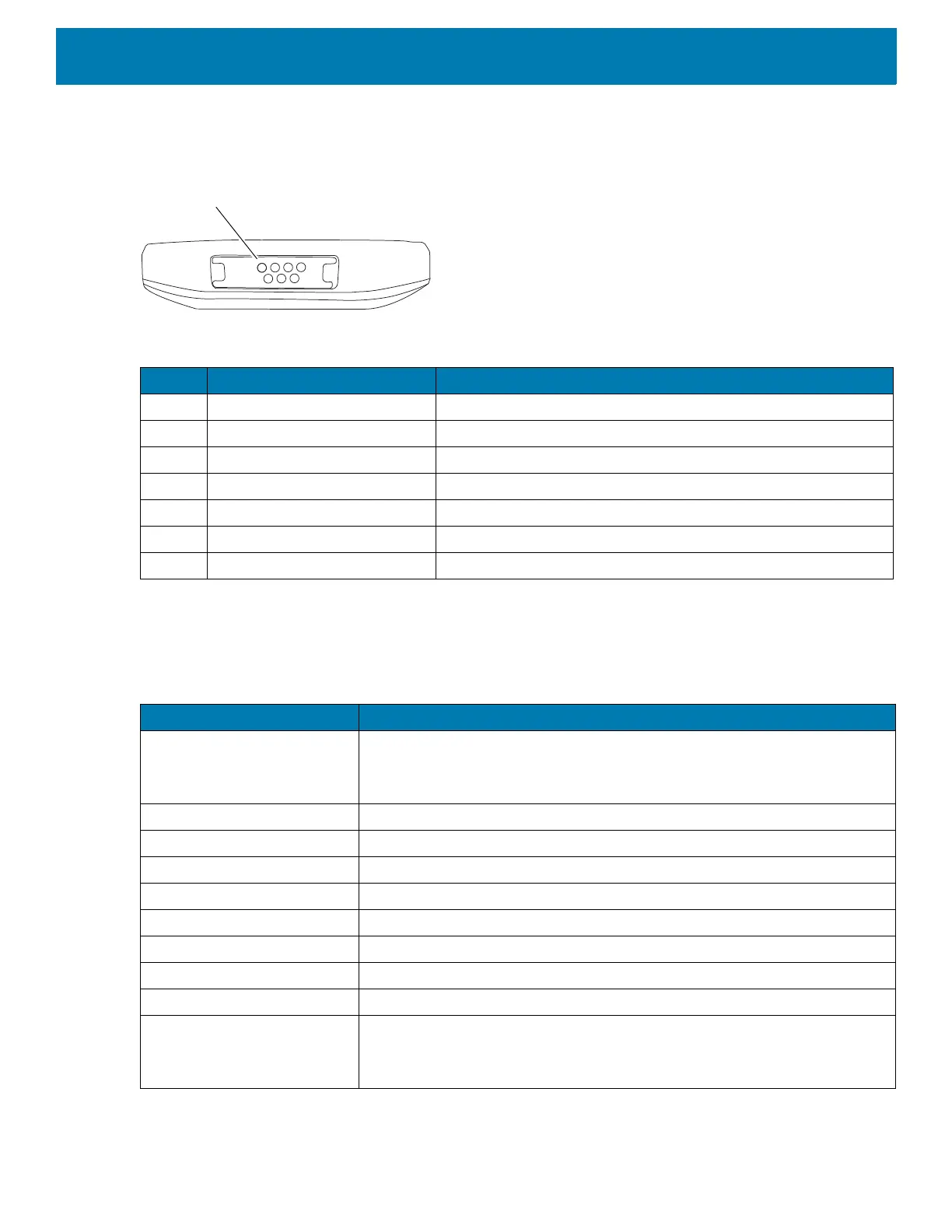

Figure 123 I/O Connector
1-Slot Charge Only Cradle Technical Specifications
Table 16 I/O Connector Pin-Outs
Pin Signal Description
1 VBUS USB Power Input
2 D- USB Data-
3 CC USB Type C Control
4 GND Ground
5 D+ USB Data+
6 Not Used Not Used
7 ID Cradle ID
Pin 1
Table 17 1-Slot Charge Only Cradle Technical Specifications
Item Description
Dimensions Height: 9.9 cm (3.9 in.)
Width: 9.8 cm (3.86 in.)
Depth: 13.3 cm (5.24 in.)
Weight 378 g (13.3 oz.)
Input Voltage 12 VDC
Power Consumption up to 15 watts
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Charging Temperature 0°C to 40°C (32°F to 104°F)
Humidity 5% to 95% non-condensing
Drop 76.2 cm (30.0 in.) drops to vinyl tiled concrete at room temperature.
Electrostatic Discharge
(ESD)
+/- 20kV air
+/- 10 kV contact
+/- 10 kV indirect discharge

Zebra TC52 Specifications

General

RFID reader	-
Scanner type	2D
Product color	Black
Phone function	Yes
Display diagonal	5 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
USB 2.0 ports quantity	1
Flash memory	32 GB
Internal memory	4 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	4150 mAh
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
GPS (satellite)	No
Operating system installed	Android
Bluetooth version	5.0
Rear camera aperture number	2.2
Front camera aperture number	2
Rear camera resolution (numeric)	13 MP
Front camera resolution (numeric)	5 MP

Weight and Dimensions

Depth	18.6 mm
Width	75.5 mm
Height	155 mm
Weight	249 g
