Zebra TC52 Integrator Guide

Accessories
46

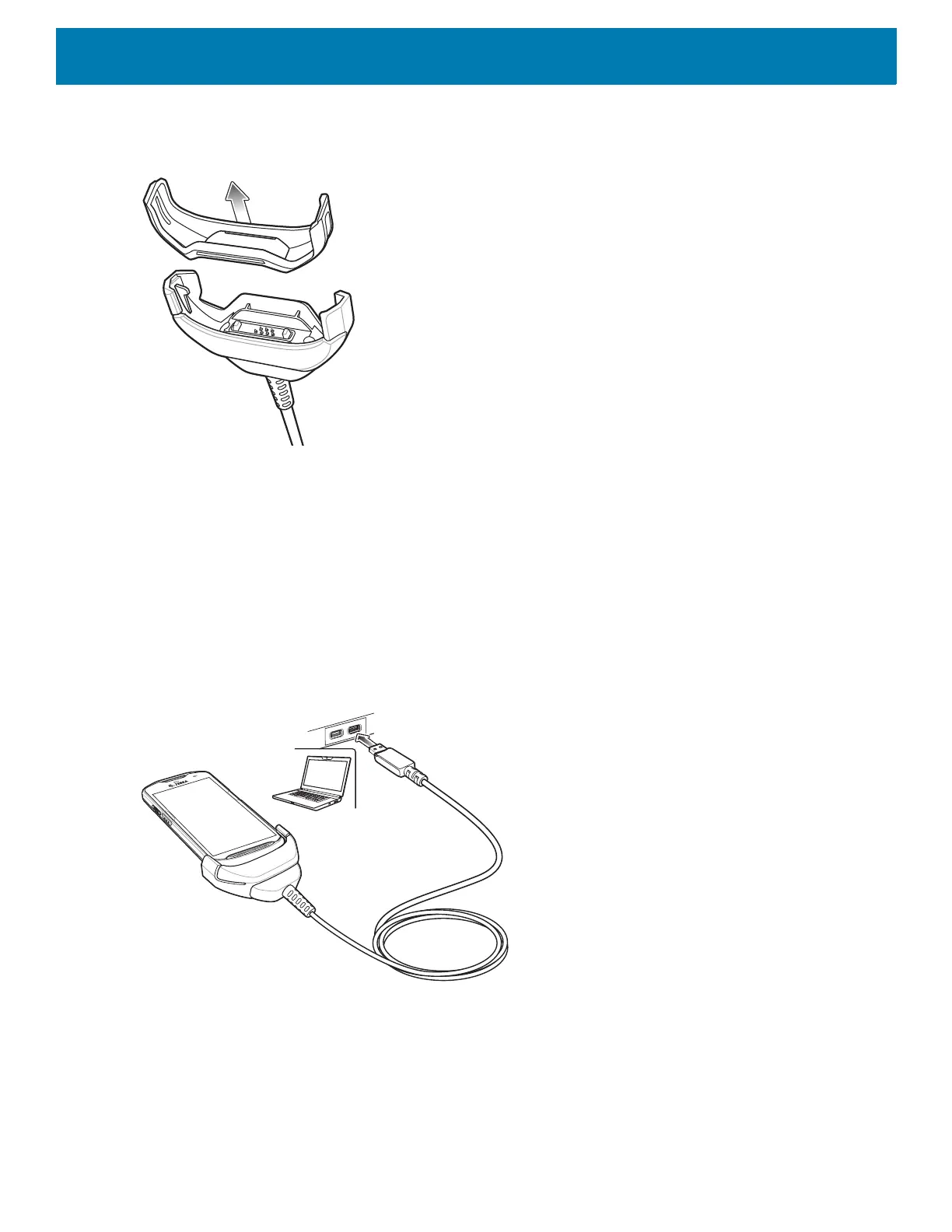

Figure 35 Cable Installation
3. Align the cable cup with the bottom of the device.
4. Press the device into the cable cup until it securely in place.
USB Communication
To connect the device to a host computer:
1. Connect the Rugged Charge/USB Cable to the device.
2. Connect the USB connector of the cable to a host computer.
Figure 36 Rugged Charge/USB Cable to Host Computer
Charging the Device
To charge the device using the Rugged Charge/USB Cable:
1. Connect the Rugged Charge/USB Cable to the device.
2. Connect the USB connector of the power supply.

Zebra TC52 Specifications

General

RFID reader	-
Scanner type	2D
Product color	Black
Phone function	Yes
Display diagonal	5 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
USB 2.0 ports quantity	1
Flash memory	32 GB
Internal memory	4 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	4150 mAh
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
GPS (satellite)	No
Operating system installed	Android
Bluetooth version	5.0
Rear camera aperture number	2.2
Front camera aperture number	2
Rear camera resolution (numeric)	13 MP
Front camera resolution (numeric)	5 MP

Weight and Dimensions

Depth	18.6 mm
Width	75.5 mm
Height	155 mm
Weight	249 g
