Accessories
48

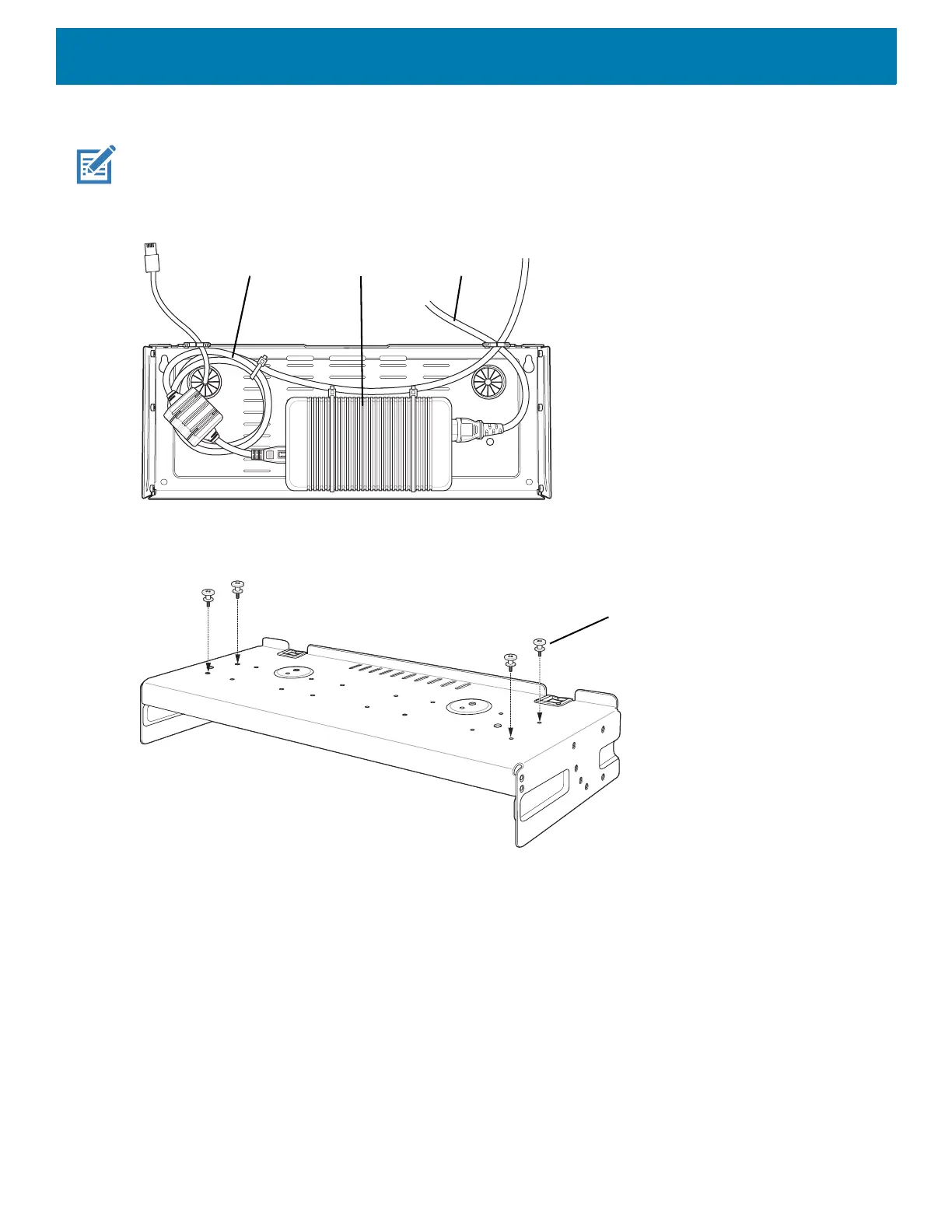

4. Secure power supply and cables to bottom tray with tie wraps.
NOTE: Ensure tie wrap buckle is on side of power supply. Tie wrap buckle on top of power supply interferes with top tray.
5. Route cables through cable slots.
Figure 38 Power Supply in Bottom Tray
6. Secure four M2.5 studs to top tray as shown.
Figure 39 Install Studs
7. Align and install 5-Slot cradle onto studs of top tray.
DC line Cord AC line CordPower Supply
To Next Page
