Accessories
57

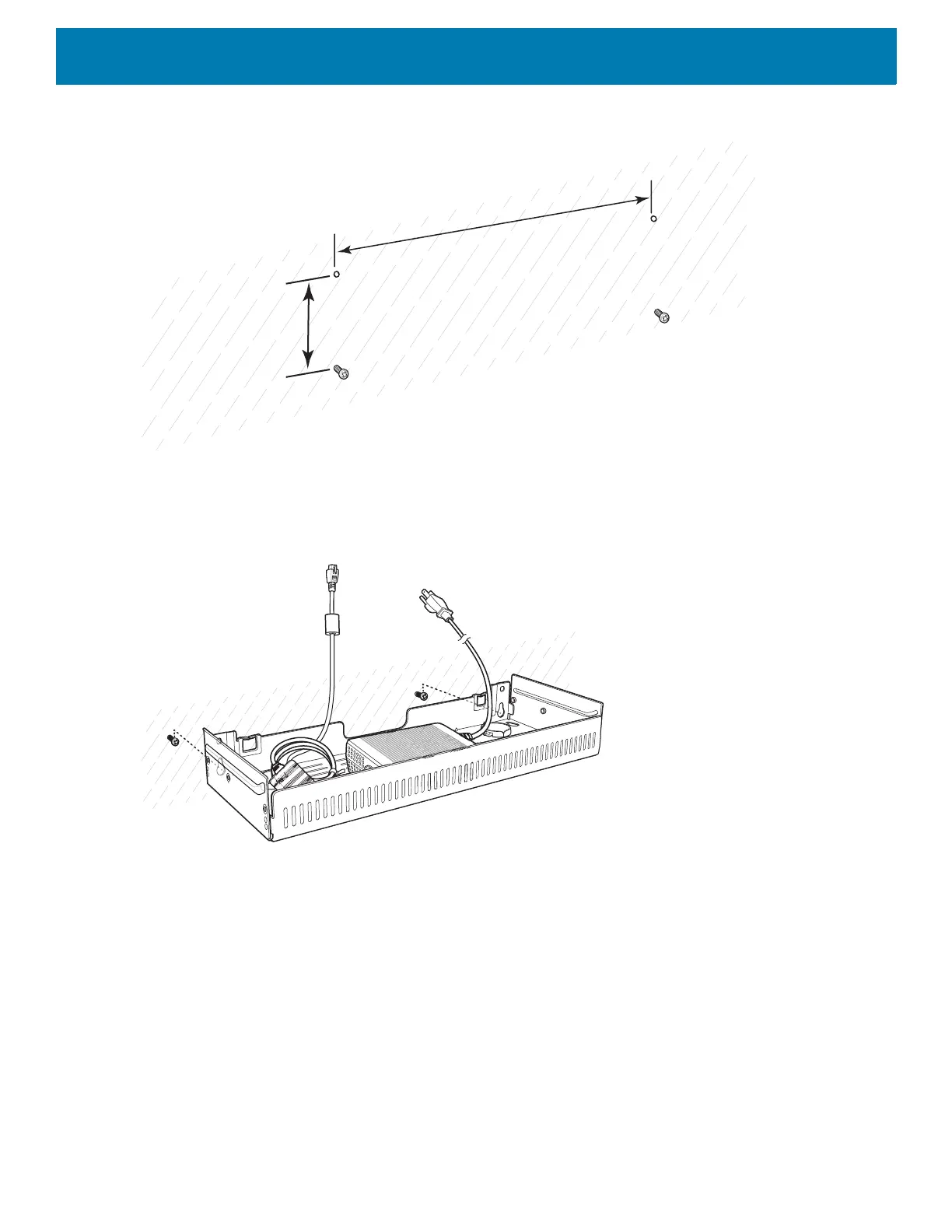

Figure 55 Horizontal Mounting Template
3. Align the mounting bracket’s bottom mounting key holes with the screws.
4. Hang the bracket on the screws.
Figure 56 Horizontal Installation
5. Install two top screws.
6. Tighten all screws.
22.85 mm
398 mm
