START-UP
Axiovert 200 Attachment of condensers Carl Zeiss
B 40-080 e 03/01 2-13
2.6 Attachment of condensers
2.6.1 Condensers for the Axiovert 200
• Insert condenser (2-13/1) into the condenser
carrier on the carrier for transmitted-light
illumination with its dovetail pointing upwards.
Make sure that the orientation pin of the
condenser is positioned at the front and exactly
engages into the guiding groove of the
condenser carrier.
• Fix condenser in position with clamping screw
(2-13/2).
• For the motorized condenser, connect the cable
to the SB connector on the rear of the stand.
2.6.2 Condensers from the
Axioplan 2 imaging / Axioskop 2
product line
The following condensers from the
Axioplan 2 imaging / Axioskop 2 line can be used:
− Achromatic condenser 0.8 H, D, Ph DIC,
(445445-9901-000)
− Achromatic aplanatic condenser 14 H, D, Ph
DIC, (445453-0000-000)
☞
The inverted design of the
Axiovert 200 requires reversed
integration of the condensers from the
Axioplan 2 imaging / Axioskop 2 line,
i.e. the turret must point to the back
so that the control elements are
positioned at the rear and the labeling
is upside down.
− Achromatic condenser 0.8 H, DIC (000000-1087-444)

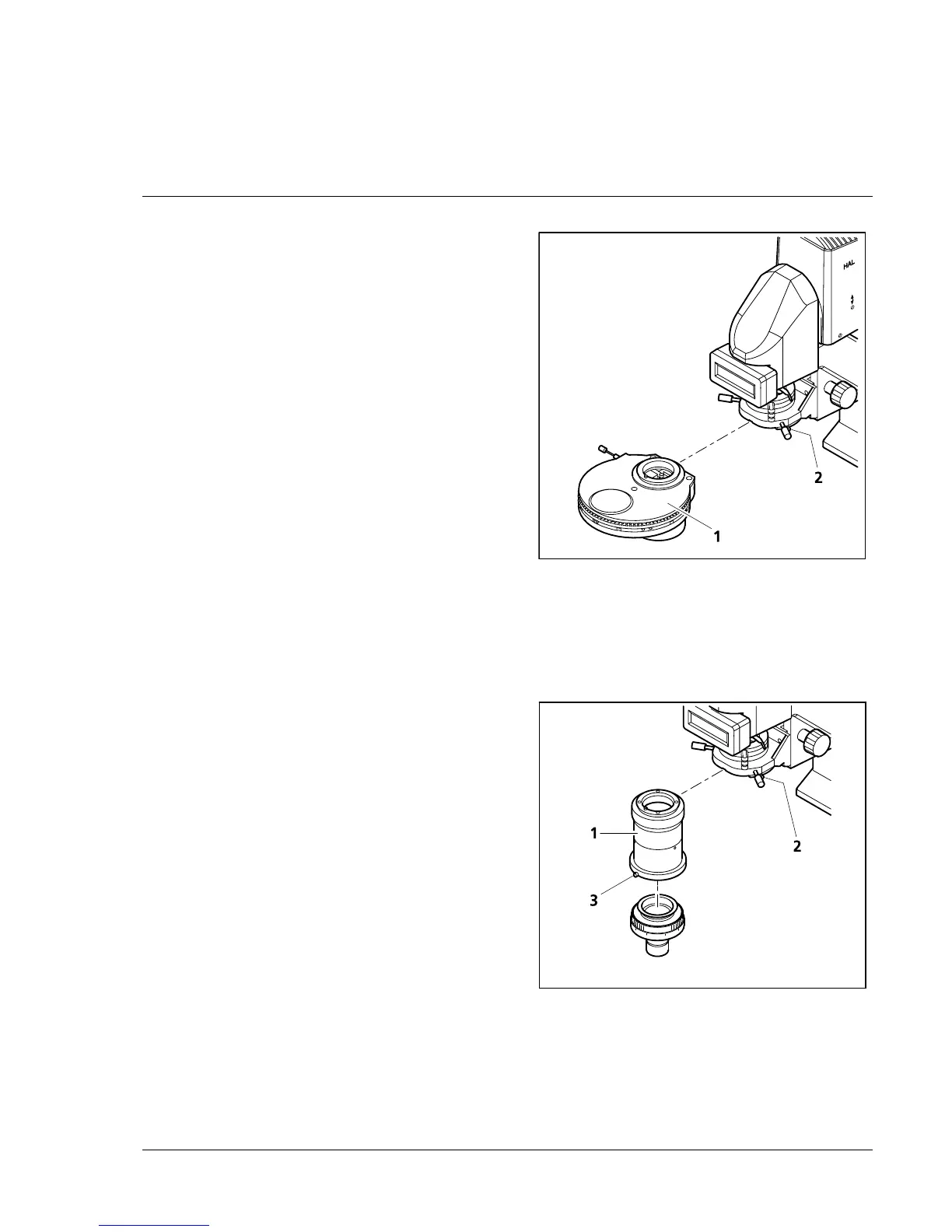

Fig. 2-13 Attachment of condenser
Fig. 2-14 Attachment of condenser adapter
